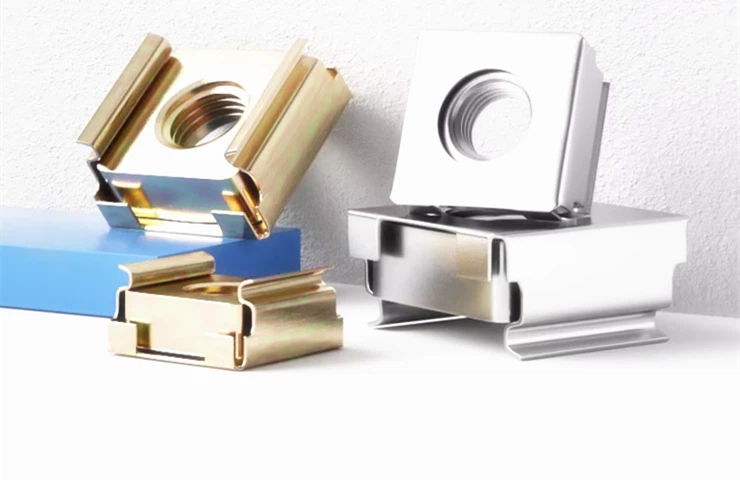

Square Cage Nut

Name: China Square Cage Nut Manufacturers Suppliers Factory - OEM Square Cage Nut Made in China
Brand: Lemar
SKU: 253881812

No.:LM-1317
Product Name:Snap-In Nuts/Cage Nuts/Captive Nuts
Material:Stainless Steel /Steel
Surface Treatment:Plain or Zinc Plated

Send Inquiry

Products Description

Square cage nut ‌is a kind of special nut with high strength thread fastening action, usually used for fixing metal or other plates. The installation process requires the use of special tools, the nut into the pre-drilled square hole, and then pull back the tool to fix it to the plate. Snap nuts are quick and easy to install, removable and repositioned, and can be tilted to.

Products Parameter

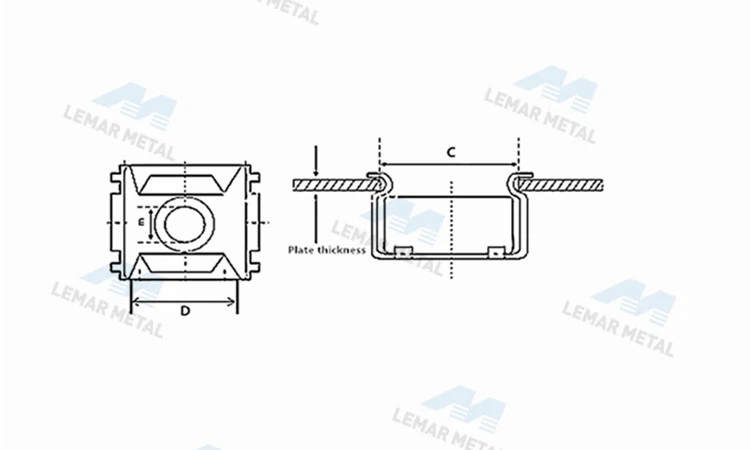

Mounting Cage Nuts

Spec.	Thread P	Open Hole Size=C*D	Plate Thickness
M4	0.7	8*9	2-3
M5	0.8	8*9	2-3
M6	1	8*9	2-3
M8	1.25	11*12	3-4
M10	1.5	11*12	2-3

Products advantage

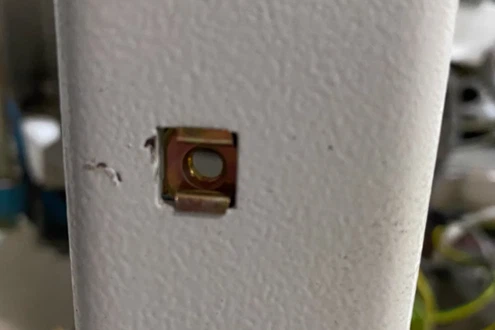

Convenient installation: the card nut only needs to be installed from one side of the plate, suitable for guide rail and site assembly, simple and quick operation ‌.

High bearing capacity:Square cage nut has a high strength thread fastening function, can withstand a large load ‌.

Detachable and repositioning: The use of card nut can be easily disassembled and repositioned, suitable for frequent adjustment ‌.

FAQ

what else advantages does the nut have?

Square cage nut has a high strength thread fastening function, and it is put into the pre-worn square hole with a special tool, and the tool is pulled back to fix it on the metal or other sheet, which is quick and convenient to install, can be disassembled and repositioned, and can also be tilted and fixed, and has the following advantages:
1, only from one side of the plate installation, suitable for rail and site assembly;
2, with high bearing capacity.
