Your Professional Lock Washer Manufacturer



Wuxi Lemar Metal Products Co., Ltd. is a professional fastener system service group integrating scientific research, manufacturing, sales and logistics. It follows the business philosophy of "striving for excellence and adhering to integrity" and has established a good image in the field of fastener manufacturing and sales. It has established long-term cooperative relationships with major well-known logistics brands at home and abroad to ensure that products are delivered to customers at the fastest speed and are well received by users.




First 123 Last

Why Choose Us


Technical team support
Possess full process manufacturing capabilities and experimental research and development capabilities for fasteners. With strong technical strength and 3D marketing network, it has more than 100,000 enterprise-level users and serves 57 industries.



Production Equipment
Our company has cold heading machines, thread rolling machines, wire drawing machines, thread rolling machines, tapping machines, vibration plate automatic assembly and other processing and feeding equipment.



Sales Market
Lemar Assisting scientific research enterprises,exported to Europe,North America, Africa, Central Asia, Middle East.



Lock Washer - Overview





A lock washer, also known as a split washer or spring washer, is a type of washer designed to prevent bolted connections from loosening due to vibration or other forces. It achieves this by creating tension within the connection, effectively locking the bolt and nut in place.



Product Specification


We provide the following product specifications：

Brand

APPROVED SUPPLIER

Outside Diameter

1 in.

Country of Origin

Varies (subject to change)

Package Quantity

4

Finish

Delta Protect

Rockwell Hardness

Min. 46 HRC

Fits Bolt Sizes

5/8 in.

Shipping Weight

0.55 lb.

Grade

8

System of Measurement

Fractional

Item

Lock Washer

Thickness

0.13 in.

Lock Washer Style

Wedge

Washer Basic Material

Steel

Material

Carbon Steel

Washer Inside Diameter

0.67 in.

Meets Standards

DIN 25201

Washer Material Grade

Grade 8



Types of Lock Washer




Split Lock- Split locks are also called helical spring lock washers. These are made out of a spring coil that cut or split. This makes it so the two ends of the coil forced outward to the mating surface. So when the washer is fastened each end of the coil will bite into the surface of the head of the screw and to the surface to which you are fastening too.




Sealing- Sealing washers use a form of a silicone rubber that is bonded to the steel of the washer. These are made to be used with screws, bolts, and nuts. They are a simple solution to any sealing needs. They have a seal on the bottom of the washer that seals the surface of the washer face, and a seal at the top that encases the shank and under the head of the fastener making a complete seal from top to bottom.




Internal Tooth- Internal tooth have teeth on the inner dimension of the washer and the outside of the washer is smooth. They are made for fasteners who have a smaller head. When the head is fastened into the hole the internal teeth will help grab the surface, while at the same time resisting against the force of the washer being compressed.




External Tooth- External tooth have teeth on the outer dimension of the washer so that they can actually bite into the surface that it is put on, and the inside is still a cylindrical hole. They are designed for fasteners who have a bigger head. When the head is fastened into the hole the external teeth will help grab the surface, while at the same time resisting against the force of the washer being compressed.




Flat- Flat washers are used for basic applications, where the hole is cot directly in the center of the washer. Standard or metric, it does not matter they can accommodate all shapes and sizes.





Advantages of Lock Washers

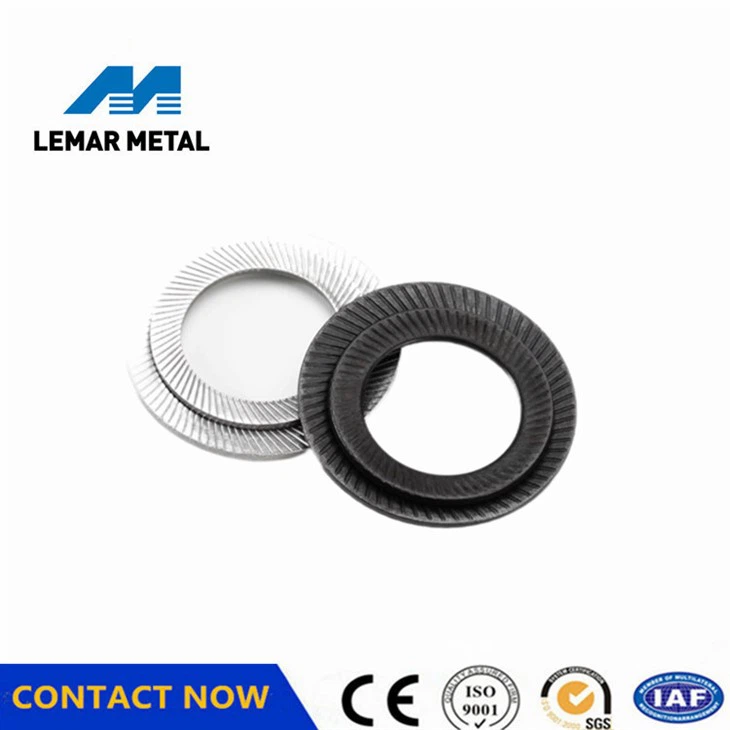

Butterfly Lock Washer



01

Vibration Resistance

Lock washers prevent fasteners from coming loose due to vibrations or movement.

Spring Safety Washer



02

Secure Fastening

They create tension between the fastener and the material, ensuring a more secure connection.

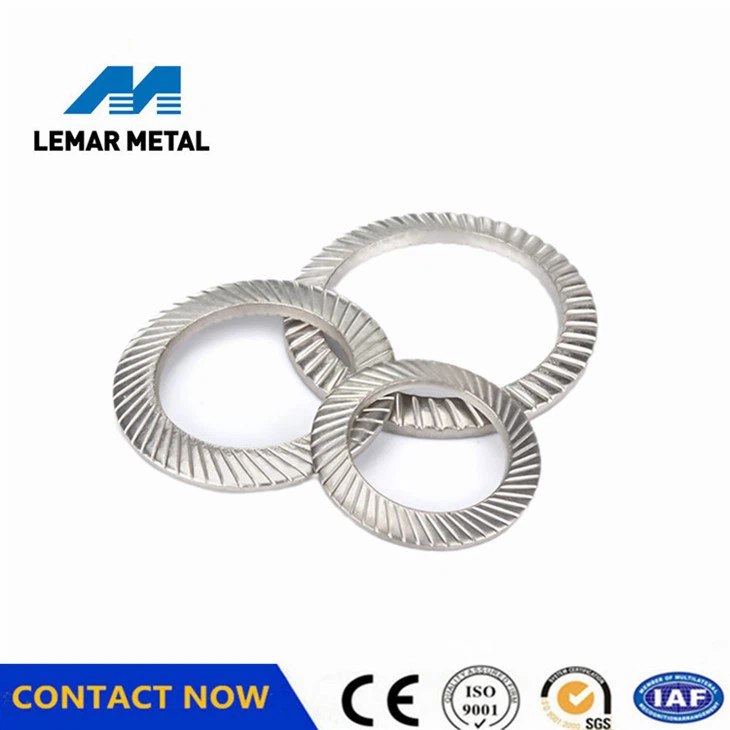

Serrated Knurled Safety Lock Washer



03

Versatility

Lock washers come in different types, allowing you to choose the one that best suits your application.

Serrated Knurled Safety Lock Washer



04

Reliability

In scenarios where maintaining tight fastening is critical, lock washers provide a reliable solution.



Materials of Lock Washer



C1050 Spring Steel

1

>>

400 Series Stainless Steel

2

>>

300 Series Stainless Steel

3

>>

Bronze

4

>>

Aluminum

5

>>

Beryllium Copper

6

>>

K-Monel

7



Customization Process



Requirement Discussion

Contact us and provide your design drawings, size specifications, and other technical parameters.

01

Design Proposal

Our professional team will develop a design proposal and provide a quotation based on your requirements.

02

Sample Production

We produce samples according to the design proposal and conduct rigorous testing.

03

Mass Production

Upon your approval, we commence mass production to ensure timely delivery and consistent quality.

04

After-Sales Service

We offer ongoing technical support and service to ensure the long-term stable operation of our products.

05





Other Services
  • Surface treatment: Plain, Galvanized, Hot Dip Galvanized, Black Oxide, Anodized, etc.
  • Excellent quality control system for fine dimensional accuracy.
  • Various materials are available as per your request
  • Conform to international standard.
  • We had got certificate of ISO9001: 2008, SGS & RoHS.
  • Prompt delivery.
  • Various sizes are available.
  • Material: Stainless Steel 18-8 18-10, Carbon steel Gr4.8 Gr8.8 Gr10.9, Gr12.9, Aluminum, Copper, etc.
  • Packing Stylet: General export packing
  • Can be made with different standards such as ISO, DIN, AS/NZS, GB, ANSI, BS and special standard.
  • Good customer service
  • OEM is available
E Clip Lock Washer



Package & Delivery



Package Size: 10.00cm * 10.00cm * 10.00cm
Package Gross Weight: 5.000kg



productcate-1-1



FAQ



Q: Are lock washers suitable for all types of vibrations?

A: Lock washers are effective against many types of vibrations. However, for extreme vibration conditions, specialized solutions might be necessary.

Q: Can I reuse lock washers?

A: Lock washers are typically designed for one-time use. Reusing them might compromise their effectiveness in preventing loosening.

Q: Are there alternatives to lock washers?

A: Yes, alternatives like thread-locking adhesives or nylon-insert lock nuts can also prevent loosening in some applications.

Q: Can I stack multiple washers if needed?

A: While it's possible to stack washers, it's not always recommended, as this could affect the distribution of load and tension.

Q: Are you manufacturer or trading company?

A: We are manufacturer.

Q: What's your best delivery time?

A: Within 15-30 days.

Q: What is the quality control of your product?

A: Follow strictly quality control measures for implementation,

Q: Will your company provide free sample?

A: It depends on which sort of item you want to get. Some can be provided free of charge, however, the client shall assume the shipping fees himself.

Q: Is OEM open to clients?

A: Yes, we can provide both OEM and ODM service.

Q: How can our company be your distribution partner?

A: We welcome you to be our distributor. For further details, please contact us.

Q: What is the payment of sample?

A: T/T and Alipay both acceptable.

Q: What is your sample policy?

A: If we have stock, we can provide samples, but the customer must pay the sample fee and express fee Question.

Q: Have you tested all your goods before shipment?

A: Yes, we will conduct 100% test before delivery, and we will send detailed photos of parts for your approval Question.

We're well-known as one of the leading lock washer manufacturers and suppliers in China. If you're going to wholesale high quality lock washer made in China, welcome to get pricelist and free sample from our factory. Also, OEM service is available.
