Your Professional Circlip Washer Manufacturer

Wuxi Lemar Metal Products Co., Ltd. is a professional fastener system service group integrating scientific research, manufacturing, sales and logistics. It follows the business philosophy of "striving for excellence and adhering to integrity" and has established a good image in the field of fastener manufacturing and sales. It has established long-term cooperative relationships with major well-known logistics brands at home and abroad to ensure that products are delivered to customers at the fastest speed and are well received by users.

C Type Internal Circlip
No.:LM-1164. Standard:DIN471. Material:304 Stainless steel. Color: Sliver

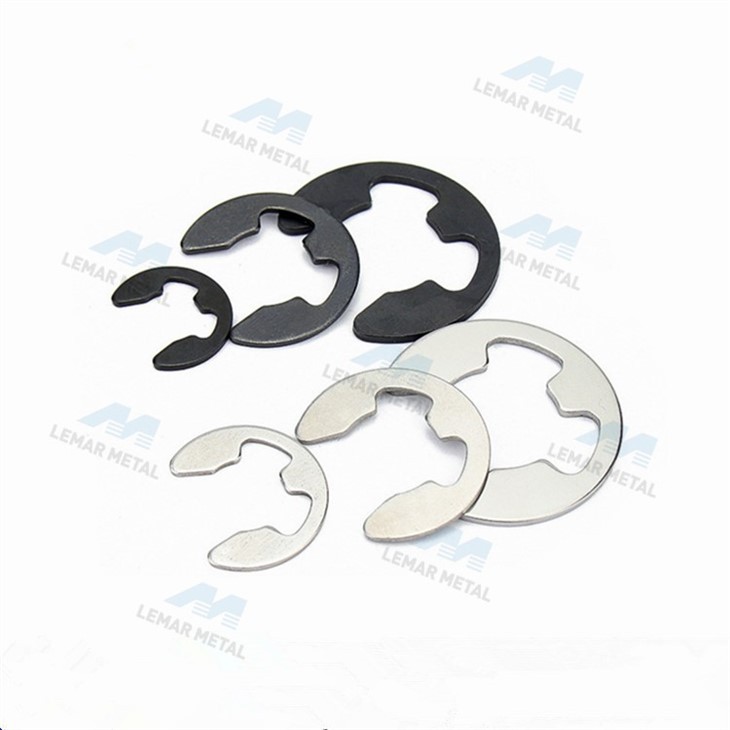

E Clip Lock Washer
No.:LM-1163. Standard:DIN 6799. Type:Lock washer. Material:Stainless steel

Why Choose Us

Technical team support
Possess full process manufacturing capabilities and experimental research and development capabilities for fasteners. With strong technical strength and 3D marketing network, it has more than 100,000 enterprise-level users and serves 57 industries.

Production Equipment
Our company has cold heading machines, thread rolling machines, wire drawing machines, thread rolling machines, tapping machines, vibration plate automatic assembly and other processing and feeding equipment.

Sales Market
Lemar Assisting scientific research enterprises,exported to Europe,North America, Africa, Central Asia, Middle East.

Circlip Washer - Overview

A circlip washer, also known as a retaining ring or snap ring, is a type of fastener that secures components on a shaft or in a housing. It's a semi-flexible metal ring with a gap that allows it to be compressed or expanded to fit into a groove. When installed, it prevents axial movement of parts, like bearings or gears, and is often used in situations where a bolt and nut might be impractical.

Product Specification

We provide the following product specifications：

Spec	E Clip Lock Washer Size and Weight
Dg	Thickness			Open			OD	Weight
mm	T	Tolerance		A		Tolerance	Max	Kg/1000
0.8	0.2		+0.02 -0.02		0.58	+0.04 -0.04	2.25	0.003
1.2	0.3				1.01		3.25	0.009
1.5	0.4		+0.02 -0.02		1.28	+0.04 -0.04	4.25	0.021
1.9	0.5				1.61		4.8	0.040
2.3	0.6		+0.02 -0.02		1.94	+0.04 -0.04	6.3	0.069
3.2	0.6				2.70		7.3	0.088
4.0	0.7		+0.02 -0.02		3.34	+0.048 -0.048	9.3	0.158
5.0	0.7				4.11		11.3	0.236
6.0	0.7		+0.02 -0.02		5.26	+0.048 -0.048	12.3	0.255
7.0	0.9				5.84		14.3	0.474
8.0	1.0		+0.03 -0.03		6.52	+0.058 -0.058	16.3	0.660
9.0	1.1				7.63		18.8	1.090
10.0	1.2				8.32		20.4	1.250
12.0	1.3		+0.03 -0.03		10.45	+0.07 -0.07	23.4	1.630
15.0	1.5				12.61		29.4	3.370
19.0	1.75				15.92		37.6	6.420
24.0	2.0		+0.03 -0.03		21.88	+0.084 -0.084	44.6	8.550
30.0	2.5				25.80		52.6	13.50

Advantages of Circlip Washer

Cost-effective

Circlips are a cost-effective solution compared to other types of retaining rings such as threaded fasteners. They are also reusable, making them an even more cost-effective solution over the long term.

Space-saving

These retaining rings are also a space-saving solution compared to other types of retaining rings. They require minimal space to install and are designed to be low profile, which makes them ideal for use in tight spaces.

Easy to Install

Circlips are likewise easy to install and can be fitted into a groove in a shaft or bore using a simple set of pliers. They can also be removed swiftly if required, which makes them a versatile solution for a range of applications.

High Strength

Circlips are designed to be high-strength and can withstand high-stress conditions. They are also resistant to fatigue and can withstand repeated use without losing their strength or integrity.

Types of Circlip Washer

External Circlip Standard
Conforms to BS3673 Part 4, the most common form of axial retainer for shafts with grooves. Generally, only metric sizes and manufactured for 3mm to 300mm shafts. USA specifications, heavy-duty versions and various lug configurations are also available on request.

External Circlip Lugged
Conforms to DIN 983, axially fitted to shafts with grooves, similar to the standard design but with additional equi-spaced lugs around the O.D. This feature assists in maintaining good contact with radiused or chamfered components for 16mm to 140mm shafts.

Internal Circlip Standard
Conforms to BS3673 Part 4 and DIN 472, the most common form of axial retainer for bores with grooves. Generally, only metric sizes are manufactured for 8mm to 360mm bores. USA specifications, heavy-duty versions and various lug configurations are also available on request.

Internal Circlip Lugged
Conforms to DIN 984, axially fitted to bores with grooves, similar to the standard design but with additional equi-spaced lugs around the I.D. This feature assists in maintaining good contact with radiused or chamfered components for 16mm to 170mm bore.

E Type External Circlip
Conforms to BS3673 Part 2 and DIN 6799, the most common form of radially fitted circlip to shafts with grooves. Nominal size is the groove diameter (not the shaft diameter), available in inch sizes from 0.052″ to 0.940″ and 0.8mm to 30.0mm grooves. Circlip pliers are not required for installation.

Snap Rings
Axially fitted in shallow grooves as conventional circlips. Often used to retain narrow section components with light side loads. Unlike conventional circlips, special fitting tools are not required.

Customization Process

Requirement Discussion

Design Proposal

Our professional team will develop a design proposal and provide a quotation based on your requirements.

Sample Production

We produce samples according to the design proposal and conduct rigorous testing.

Mass Production

Upon your approval, we commence mass production to ensure timely delivery and consistent quality.

After-Sales Service

We offer ongoing technical support and service to ensure the long-term stable operation of our products.

Other Services

Surface treatment: Plain, Galvanized, Hot Dip Galvanized, Black Oxide, Anodized, etc.
Excellent quality control system for fine dimensional accuracy.
Various materials are available as per your request
Conform to international standard.
We had got certificate of ISO9001: 2008, SGS & RoHS.
Prompt delivery.
Various sizes are available.
Material: Stainless Steel 18-8 18-10, Carbon steel Gr4.8 Gr8.8 Gr10.9, Gr12.9, Aluminum, Copper, etc.
Packing Stylet: General export packing
Can be made with different standards such as ISO, DIN, AS/NZS, GB, ANSI, BS and special standard.
Good customer service
OEM is available

Package & Delivery

Package Size:	10.00cm * 10.00cm * 10.00cm
Package Gross Weight:	5.000kg

productcate-1-1

FAQ

Q: What are the applications of circlips?

A: An Overview of Circlips and Their Main Applications
They are often used in automotive, industrial, and aerospace applications to effectively secure bearings, gears, pulleys, and other components inside a housing or on a shaft. External circlips, alternatively, are fitted onto a shaft.

Q: What is the difference between a circlip and a washer?

A: Circlips are used to secure the position of components and shafts and axles. They are pressed into a groove running around these components' ends. Lock washers are warped steel rings. They are put onto nuts and flattened back into their original position by the tightening force on the nut.

Q: What is the primary use of fastening with a circlip?

A: Understanding Retaining Rings/Circlips
Retaining rings are circular, C-shaped fasteners that fit into a groove on a shaft or inside a bore. They are designed to prevent lateral movement of components, such as bearings, gears, and pulleys.

Q: Are you manufacturer or trading company?

A: We are manufacturer.

Q: What's your best delivery time?

A: Within 15-30 days.

Q: What is the quality control of your product?

A: Follow strictly quality control measures for implementation,

Q: Will your company provide free sample?

A: It depends on which sort of item you want to get. Some can be provided free of charge, however, the client shall assume the shipping fees himself.

Q: Is OEM open to clients?

A: Yes, we can provide both OEM and ODM service.

Q: How can our company be your distribution partner?

A: We welcome you to be our distributor. For further details, please contact us.

Q: What is the payment of sample?

A: T/T and Alipay both acceptable.

Q: What is your sample policy?

A: If we have stock, we can provide samples, but the customer must pay the sample fee and express fee Question.

Q: Have you tested all your goods before shipment?

A: Yes, we will conduct 100% test before delivery, and we will send detailed photos of parts for your approval Question.
