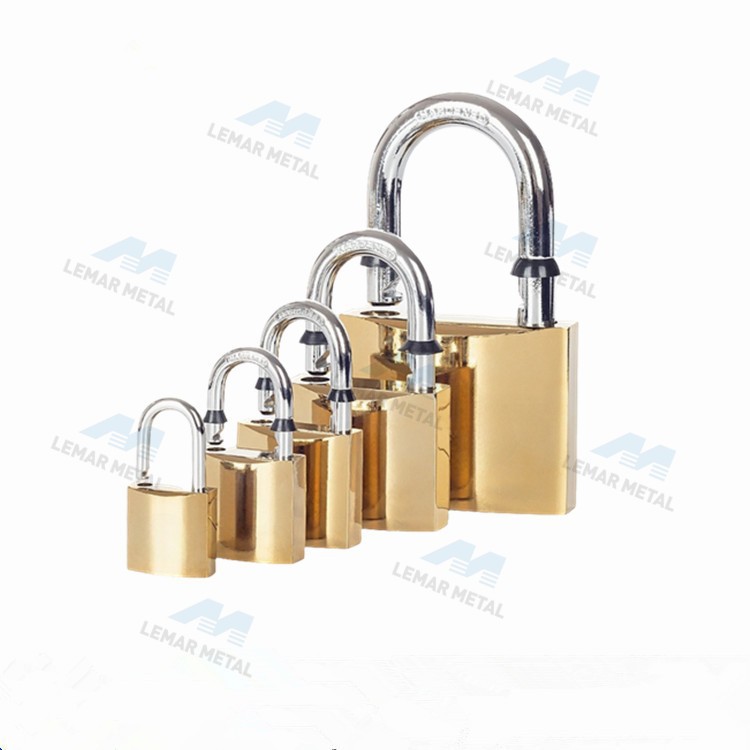

Door Pad Lock
Lock type:Keypad
Features:Waterproof Brass lock
Surface treatment:Titanium gold plating
Products Description
Padlock
Door Pad Lock are important devices used to protect the safety of items inside the cabinet. Their design and structure directly affect the cabinet's anti-theft ability and service life.
Products Parameters
Products Description
Products Structure Features
Door Pad Lock usually consist of Lock body,Lock cylinder,Keyhole,Mounting plate,Knob and handle,Gear and rack and U-shaped seat
Lock body:
This is the main part of the lock, usually including the lock cylinder, keyhole and related mechanical structure.
Lock cylinder:
It is the core part of the lock, responsible for rotation and locking.
Keyhole:
Used to insert the key so that the lock cylinder can be turned.
Mounting plate:
Used to fix the position of the lock, usually fixed to the cabinet door by screws or rivets.
Knob and handle:
Used to manually operate the lock, the knob is usually connected to the lock cylinder, and turning the knob can lock or unlock; the handle is used to pull or push the cabinet door.
Gear and rack:
In some complex locks, gears and racks are used to transmit rotational motion, thereby realizing more complex locking mechanisms.
U-shaped seat:
Used to fix the position of the rack, usually fixed on the back of the cabinet door.
Location holes and positioning grooves:
Used to ensure the correct position of the lock to prevent displacement during use.
Products Usage
Installation steps of Door Pad Lock
Installing Door Pad Lock requires certain steps to ensure their firmness and reliability
1. Find the bottom frame: First, find the bottom frame of the cabinet and assemble it. If the cabinet comes with a shoe rack, the shoe rack needs to be installed first.
2. Panel assembly: Assemble the various panels of the cabinet together to ensure that the diagonal error is within plus or minus 1MM.
3.Mark the position: Mark the position of the layer or vertical board to nail the back panel on the two side panels (side panels) to facilitate the subsequent installation of the back panel.
4. Adjust the level: After the cabinet is in place, use a level ruler to measure whether the cabinet is level. If it is not level, it needs to be adjusted to a horizontal position. The usual method is to put something under the cabinet.
5. Fix the lock: Fix the lock in a pre-marked position, usually with screws or rivets.
Test the lock: After the installation is completed, test whether the lock functions normally to ensure that it can be locked and unlocked smoothly.
