9 Shaped Foundation Bolt

9 shaped foundation bolt, also known as nine shaped foundation bolt, is a special bolt used to fix structures in construction projects.

Send Inquiry

Product Description

9 shaped foundation bolt, also known as nine shaped foundation bolt, is a special bolt used to fix structures in construction projects. This kind of bolt is usually made of high-quality steel, has strong tensile strength and corrosion resistance, and is suitable for use in various environmental conditions.

Feature

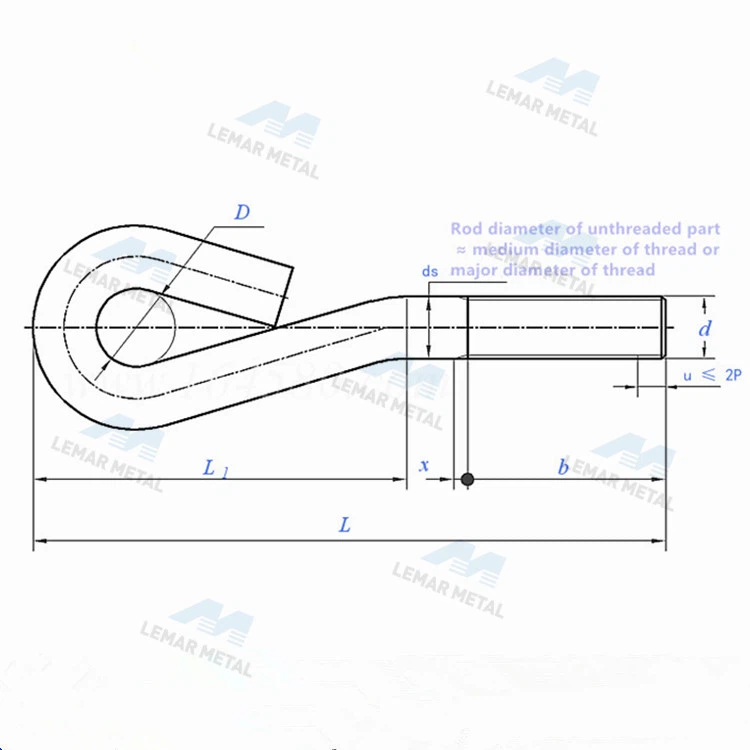

The 9 shaped foundation bolt has a unique design, shaped like the number "9", with threads on one end and a fixed head on the other. This design allows the bolts to be easily set into concrete or other building materials, providing a secure support and connection.

In construction projects, 9 shaped foundation bolts are usually used to fix various structures, such as bridges, buildings, equipment, etc. They are used to bear weight, resist wind and seismic forces, and ensure the stability and safety of buildings.

Installation of this type of bolt is relatively simple and usually requires the use of specific tools, such as a wrench or torque wrench. During installation, it is necessary to ensure that the bolts are tightened appropriately to ensure the firmness of the structure.

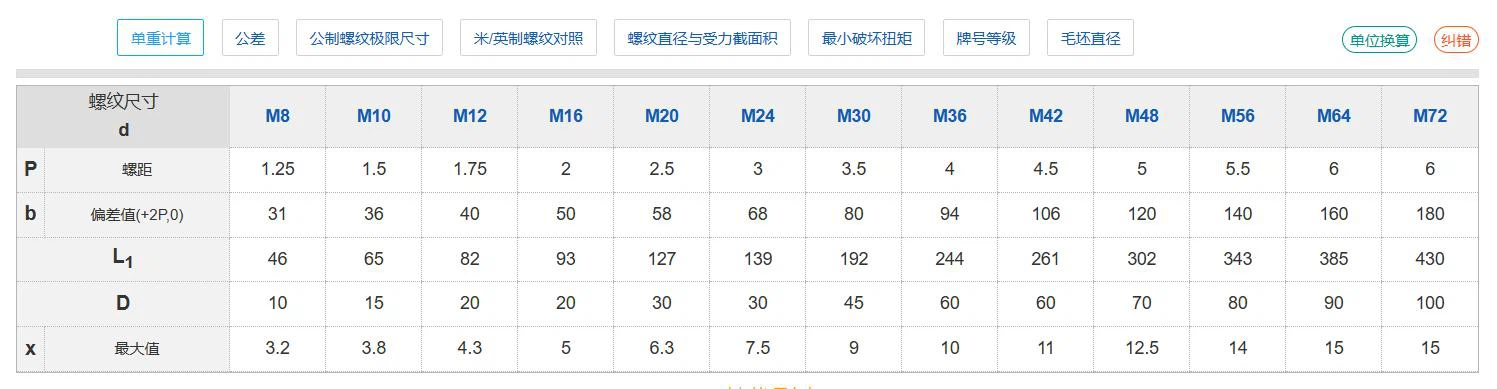

Product specifications

Bolt size d		M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72
P	Screw pitch	1.25	1.5	1.75	2	2.5	3	3.5	4	4.5	5	5.5	6	6
b	Deviation value (+2P,0)	31	36	40	50	58	68	80	94	106	120	140	150	180
	L₁	46	65	85	93	127	139	192	244	261	302	343	385	430
	D	10	15	20	20	30	30	45	60	60	70	80	90	100
x	max	3.2	3.8	4.3	5	6.3	7.5	9	10	11	12.5	14	15	15

Advantage

9 shaped foundation bolt are available in a variety of sizes and lengths to meet different requirements. They are designed to provide a strong and secure fixation for objects that need to be anchored to concrete, brick, or other surfaces. These fasteners provide a quick, easy and effective way to secure heavy objects such as machinery, equipment and structures to floors, walls or ceilings. Stainless steel Anchor bolts made are incredibly strong and dependable fasteners used in many different applications, including the building, infrastructure, and maritime industries.

They are the best option for outdoor settings and challenging climates because they are composed of corrosion-resistant stainless steel material.

What is the difference between ordinary anchor bolts and stainless steel anchor bolts?

Anchor bolts are divided into carbon steel anchor bolts, hot-dip galvanized steel anchor bolts, electro-galvanized anchor bolts and stainless steel bolts according to materials.

1. The main difference between ordinary anchor bolts and stainless steel anchor bolts is that stainless steel bolts are made of different materials and have unique properties. Common anchor bolts are usually made of carbon steel or galvanized steel. While both materials offer good strength and durability, they are not as corrosion-resistant as stainless steel.

2. Another difference between ordinary anchor bolts and stainless steel anchor bolts is the price. Stainless steel bolts are typically more expensive than regular anchor bolts due to high raw material costs, but their corrosion resistance can contribute to long-term cost savings by reducing the need for maintenance and replacement.

In general, the choice between ordinary anchor bolts and stainless steel anchor bolts will depend on the specific needs of the project and its usage environment. While regular anchor bolts may be more cost-effective in some situations, the added benefits of stainless steel anchor bolts may make them a better choice for projects that require durability and corrosion resistance.
