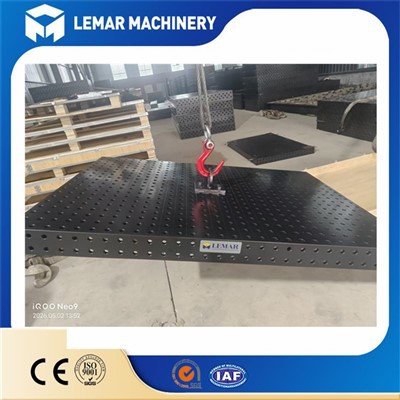

D16 3D Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description

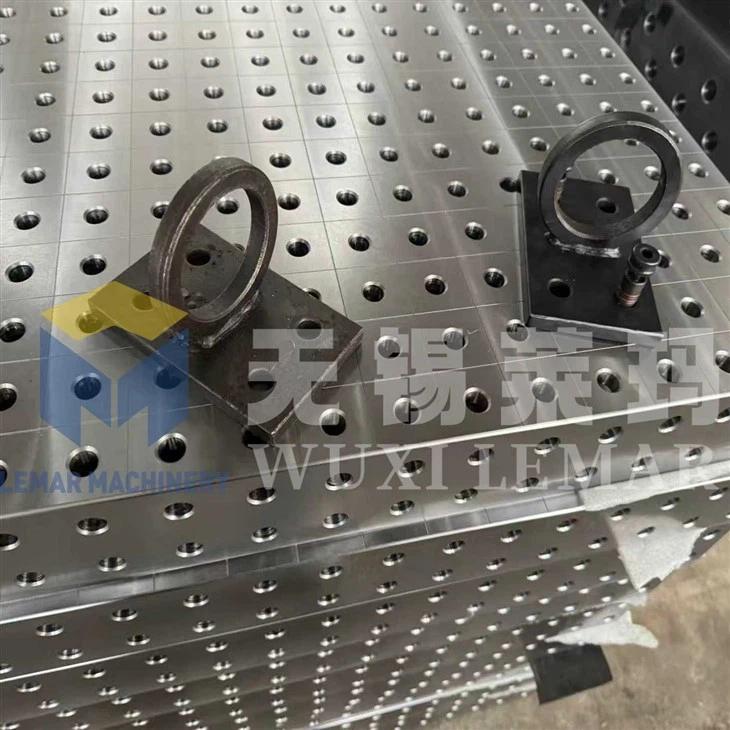

Platform main body: D16 3D Welding Table with five porous surfaces and reinforced ribs on the bottom surface; Surface nitriding/blackening, anti welding slag adhesion, easy to clean.
Support system: adjustable support legs (± 50mm) or steel frame; Optional casters/hydraulic lifting, easy to move and position.

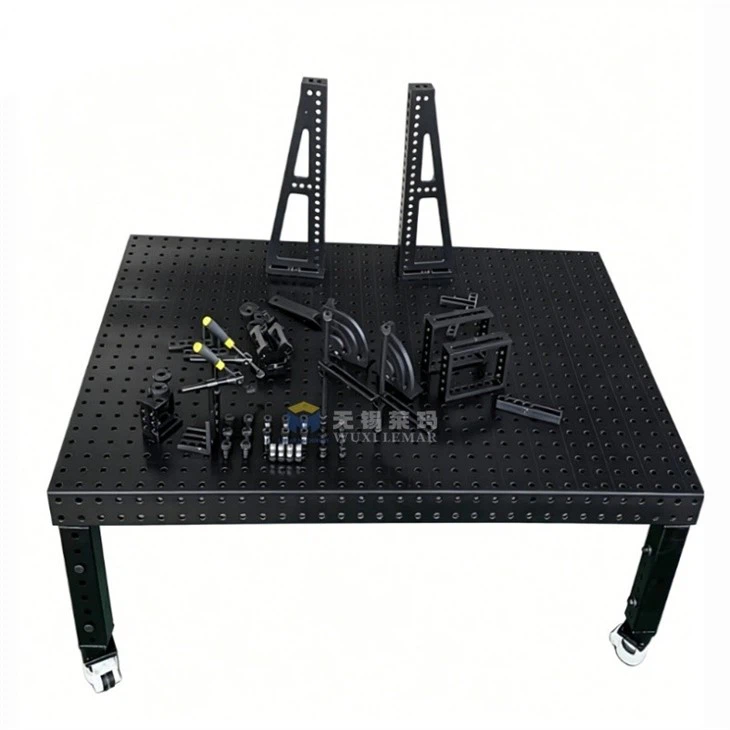

Fixture kit (optional):
- Positioning: L-shaped block, U-shaped block, angle gauge, positioning pin.
- Clamping: quick clamp, spiral clamp, pressure plate, locking pin.
- Auxiliary: ruler, level, splash guard.
mainstream specifications
Main material: HT300 high-grade gray cast iron/Q355 high-strength structural steel
Surface treatment: gas nitriding (hardness HV450~HV630)+blackening/spraying, anti welding slag adhesion, rust and wear resistance

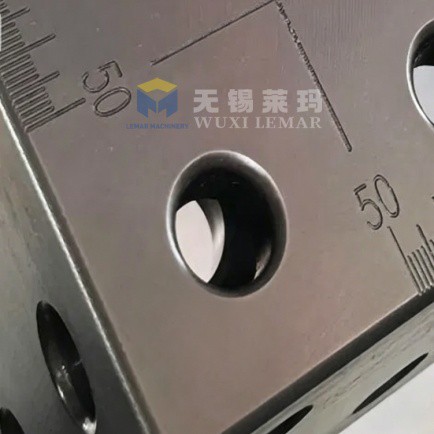

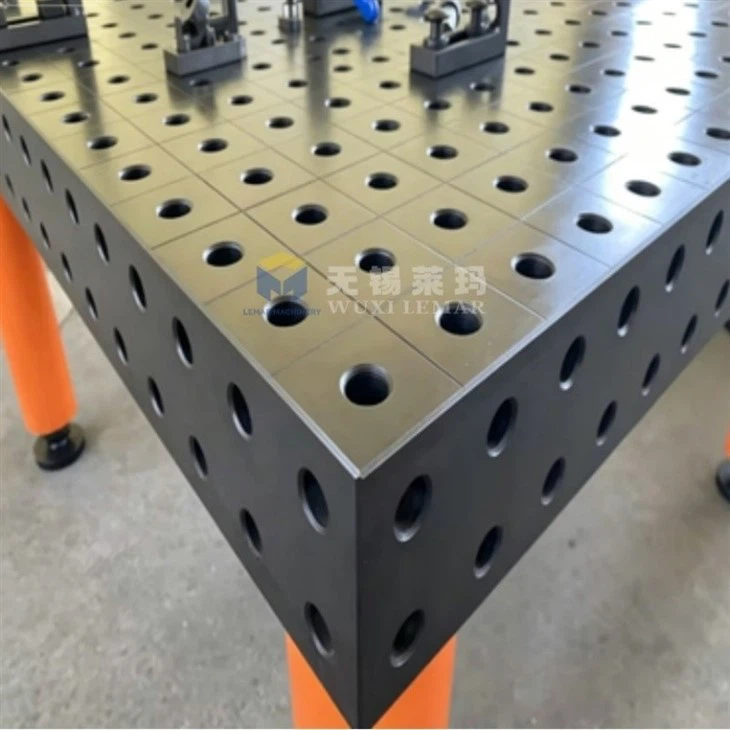

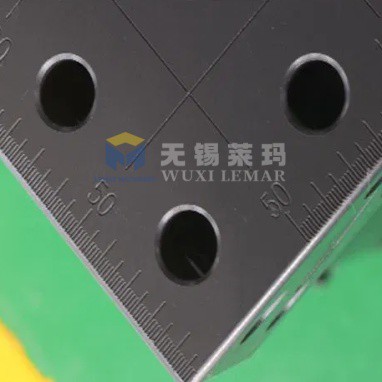

Working face: Five sided machining (top face+4 side faces), three rows of holes on the side faces, suitable for multi angle clamping
Processing accuracy:
Flatness: ≤ 0.1mm/1000mm
Hole spacing tolerance: ± 0.05mm
Aperture tolerance: Φ 16.065~Φ 16.149mm
Verticality: ≤ 0.1mm/200mm
Surface roughness: Ra1.6 μ m
Performance and Usage
high-quality products
What we offer is more than just welding tables - we deliver the best custom tooling solutions for you.
Applicable scenarios

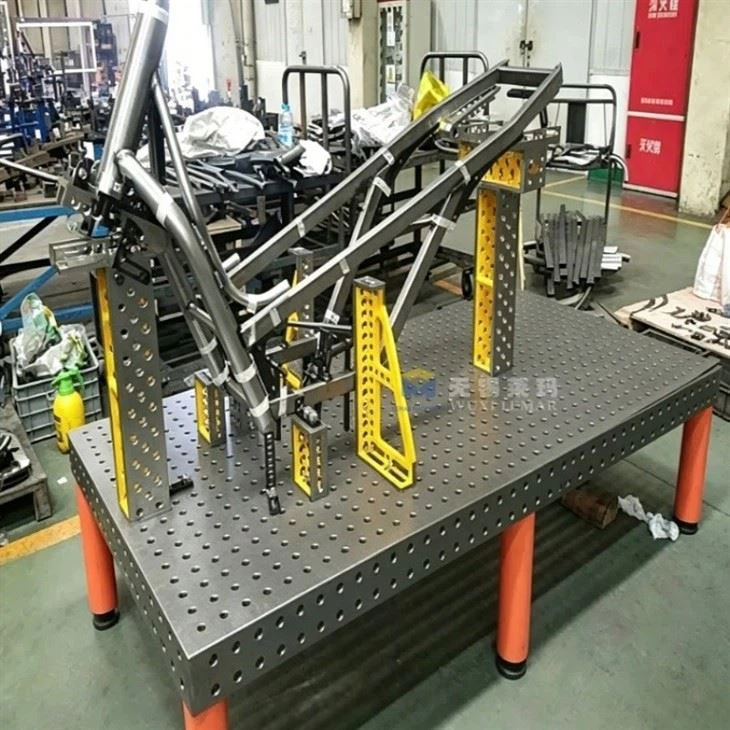

Precision welding of small and medium-sized sheet metal, small steel structural components, agricultural machinery parts, medical equipment frames, etc
temperature resistance
Can withstand short-term welding high temperatures, and the nitriding layer is resistant to high temperatures and welding slag corrosion
service life
Under normal maintenance of the welding table, the wear resistance life of the nitriding layer is ≥ 5 years
Maintenance requirements
Regularly clean welding slag, apply rust proof oil, and avoid violent tapping on the table surface

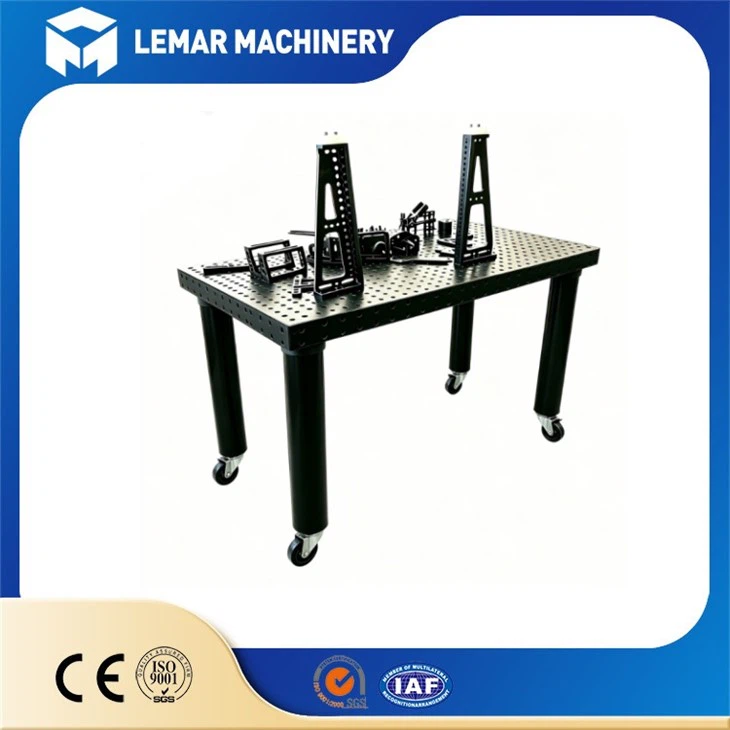

Support system (optional configuration)
- Basic legs: 4 square adjustable legs, height adjustment range ± 50mm, standard tabletop height 620mm
- Upgrade options:
- Universal casters with brakes: convenient for workstation movement
- Hydraulic lifting support legs: height adjustment range of 650-900mm, suitable for different work scenarios
- Reinforced steel frame: The overall load-bearing capacity of the frame has been increased to 5000kg
Selection instructions
- Prioritize selecting the platform based on the maximum size of the workpiece: workpiece length and width+200~300mm margin, reserved clamping space
- Cast iron has better precision and stability, suitable for long-term precision welding; Steel version has high cost-effectiveness and is suitable for budget limited scenarios
- If you need to move the workstation, it is recommended to choose brake casters; Heavy duty workpiece welding can upgrade and reinforce steel frame
Company profile
LEMAR MACHINERY
Starting locally and expanding to serve welding fixture partners in over 30 countries worldwide, this is our growth story:
2005 🏭 Founding Vision: Rooted in China, dedicated to welding equipment R&D;
2007 🌍 Going Global: Initiating a globalization strategy and upgrading products to international standards;
2008 ⚙️ Comprehensive Upgrades: Added 3D welding platforms and other production lines, transitioning into a comprehensive solution provider;
2015 ✅ Quality Certification: Obtained CE/GS certifications and entered the high-end European and American markets;
Today 🌟, we are present worldwide, serving high-end manufacturing sectors such as automobiles, wind power, and shipbuilding, earning the trust of global clients with our expertise.
Certificate of Product Quality
EU Full Market Acces：sCE approved per Machinery Directive 2006/42/EC, valid across all EU & EEA countries, smooth customs clearance without detention.
EU Standard Safety & Quality：Strictly follows European safety and machining standards, stable structure, high precision, strong load-bearing, safe for daily welding work.
Higher Buyer Trust：CE mark is global industrial credibility proof, easily attract European wholesalers, factories and project buyers.
Low Business Risk：Avoid customs fines, returns and legal disputes; qualified quality reduces after-sales cost.
Premium & Competitive Value：Certified products enjoy better market price and brand image, perfect for wholesale and long-term cooperation.
FAQ
Q:Do you support customized design?
A:Yes. Custom size, logo, surface treatment, leg type and full set of fixture packages are acceptable.
Q:Can you provide matching jigs and fixtures?
A:Complete D16 standard accessories available: locating blocks, clamping pins, quick clamps, angle fixtures and full tool sets.
Q: What is your production lead time?
A:Standard models in stock 3–7 days; customized orders 15–25 days.
Q:What payment terms do you accept?
A:TT, Western Union, PayPal, L/C. Flexible terms for bulk wholesale customers.
Q:What shipping way can you offer?
A:By sea, by air, by express. We can quote EXW, FOB, CIF, DDP door-to-door shipping.
Q:What is the warranty policy?
A:1 year warranty for the whole table, lifetime technical support. Provide after-sales consultation and replacement parts service.
Want to buy D16 3D welding tables?
Feel free to contact us for more details. We're always here to help you.
