Positioning Welding Platform
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction

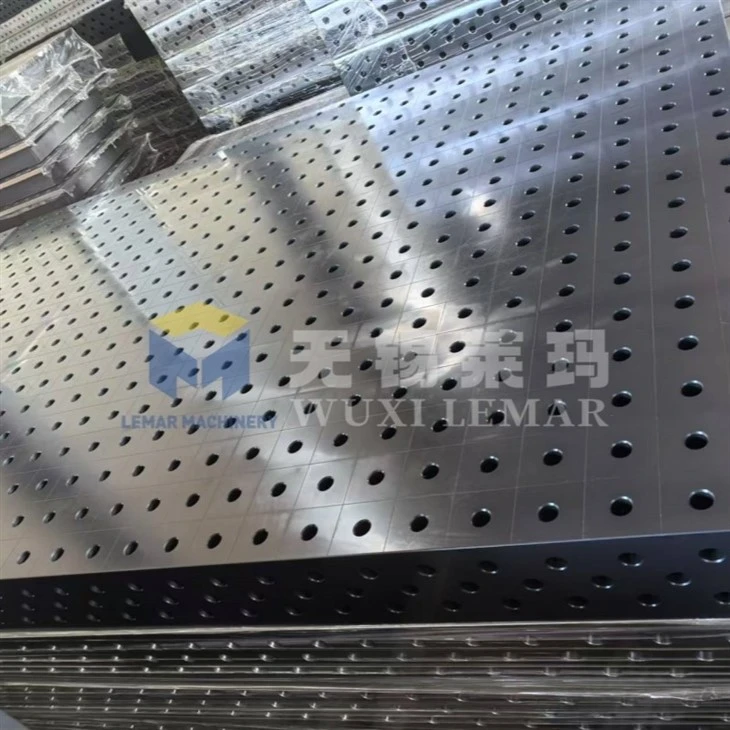

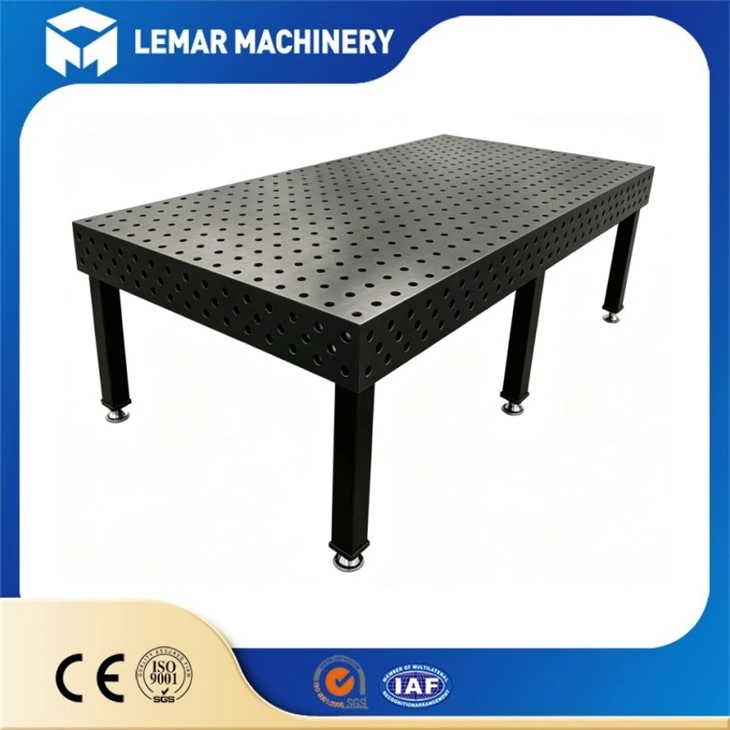

This Positioning Welding Platform is a heavy duty modular work platform engineered for precise fixture positioning and welding assembly in metal fabrication workshops. It adopts a standardized perforated tabletop layout with matched positioning holes, enabling rapid clamping and alignment of workpieces from multiple directions. The rigid welded steel base effectively absorbs welding vibration and reduces thermal distortion during continuous welding operations. Every hole is precision machined to guarantee high repeatability for batch production. The platform surface undergoes professional nitriding treatment to boost hardness and resist welding spatter and abrasion. Multiple platform units can be connected together to build a larger working area to handle large sized welded assemblies.

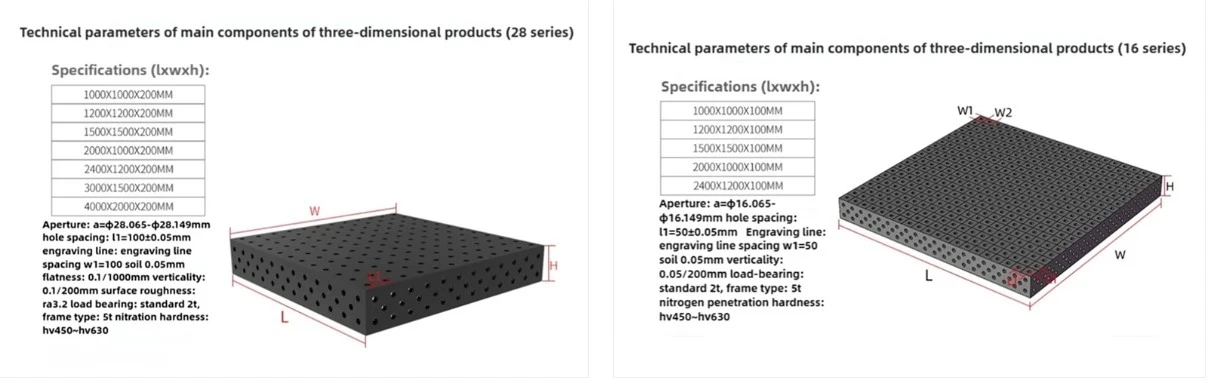

Product Parameters
Product video
Key Features

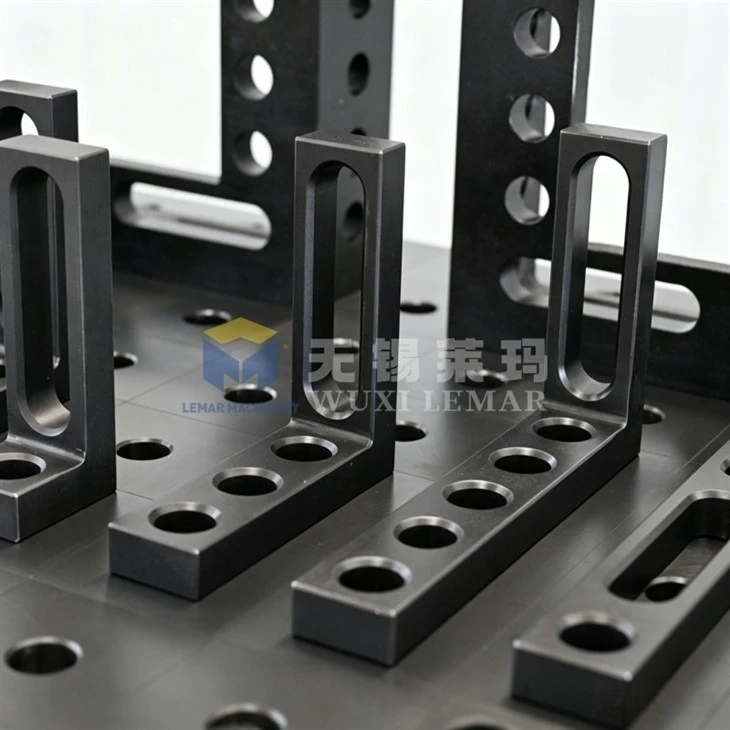

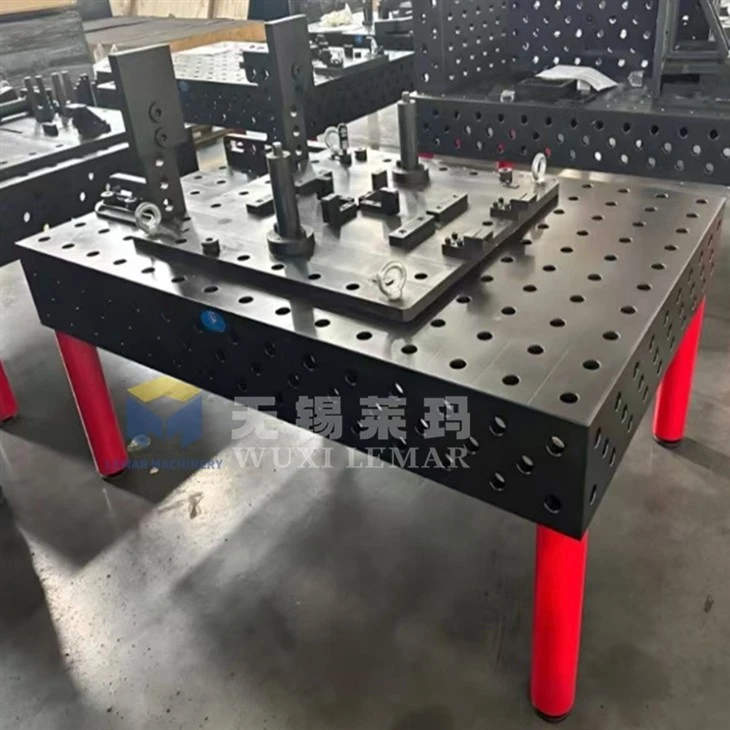

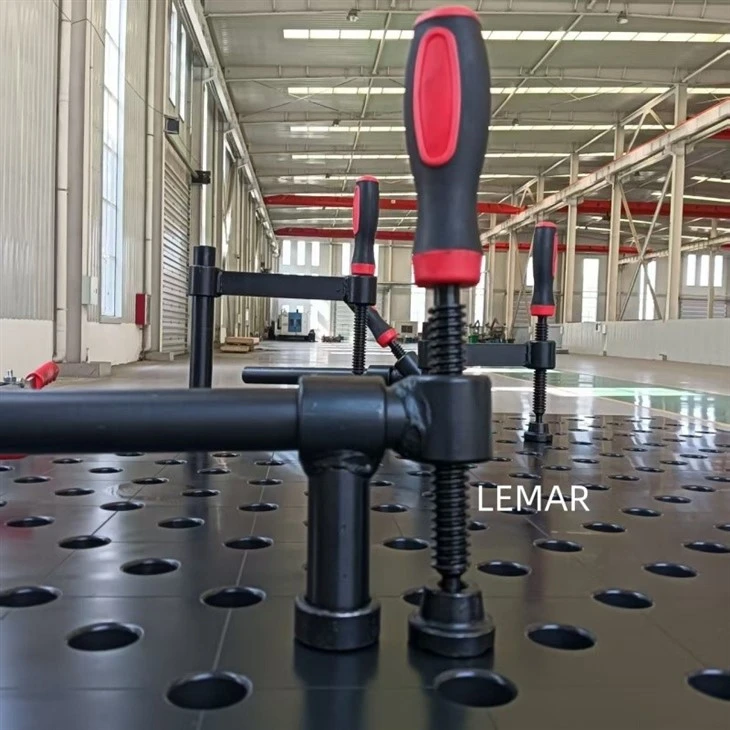

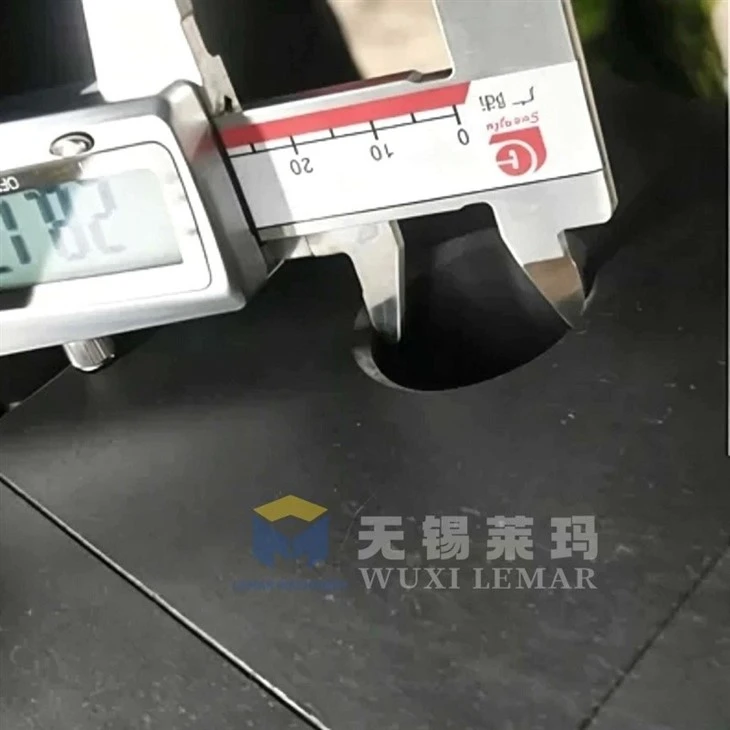

The standardized D28 hole grid delivers high precision positioning for welding fixtures and workpieces. The consistent hole pitch allows operators to quickly arrange clamps and locating pins without custom jigs, greatly shortening setup time for both prototype testing and batch welding production.
Nitriding surface treatment enhances the hardness of the entire perforated tabletop. It creates a protective layer that resists welding spatter adhesion, scratches and daily abrasive wear, maintaining the original positioning accuracy even after years of heavy workshop use.
The heavy rigid Q355 steel welded frame provides outstanding structural stability. Equipped with adjustable leveling feet, the platform can be leveled easily on uneven workshop floors. The solid structure suppresses vibration during welding and minimizes thermal deformation caused by welding heat input.
Packaging
Welcome to contact us
Please send your inquiry to our team to get detailed technical datasheets, accessory recommendations and formal commercial quotation for the Positioning Welding Platform. Our technical team can design customized layout plans according to your workshop layout and workpiece specifications. We provide reliable and cost effective metalworking solutions and look forward to establishing long term cooperation with you.
