Welding Fixture Tables

Name: China OEM Welding Fixture Tables Manufacturers Suppliers Factory - Wholesale Service
Brand: Lemar
SKU: 289998844

Material:Steel/Cast iron
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar

Send Inquiry

Products Description

why choose us

why choose our products

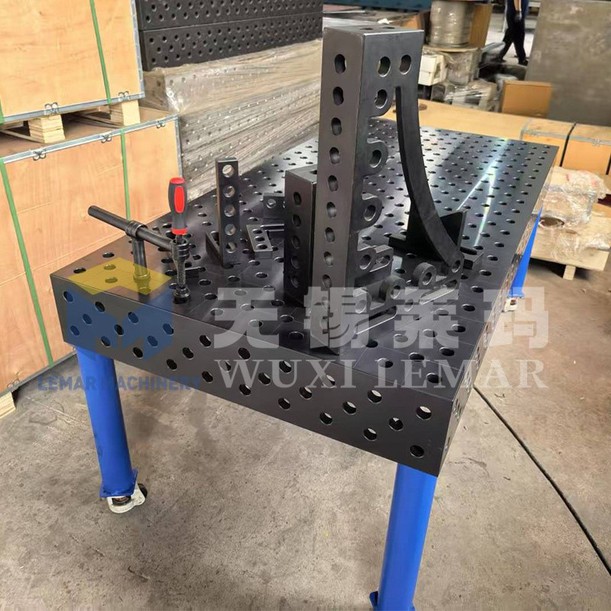

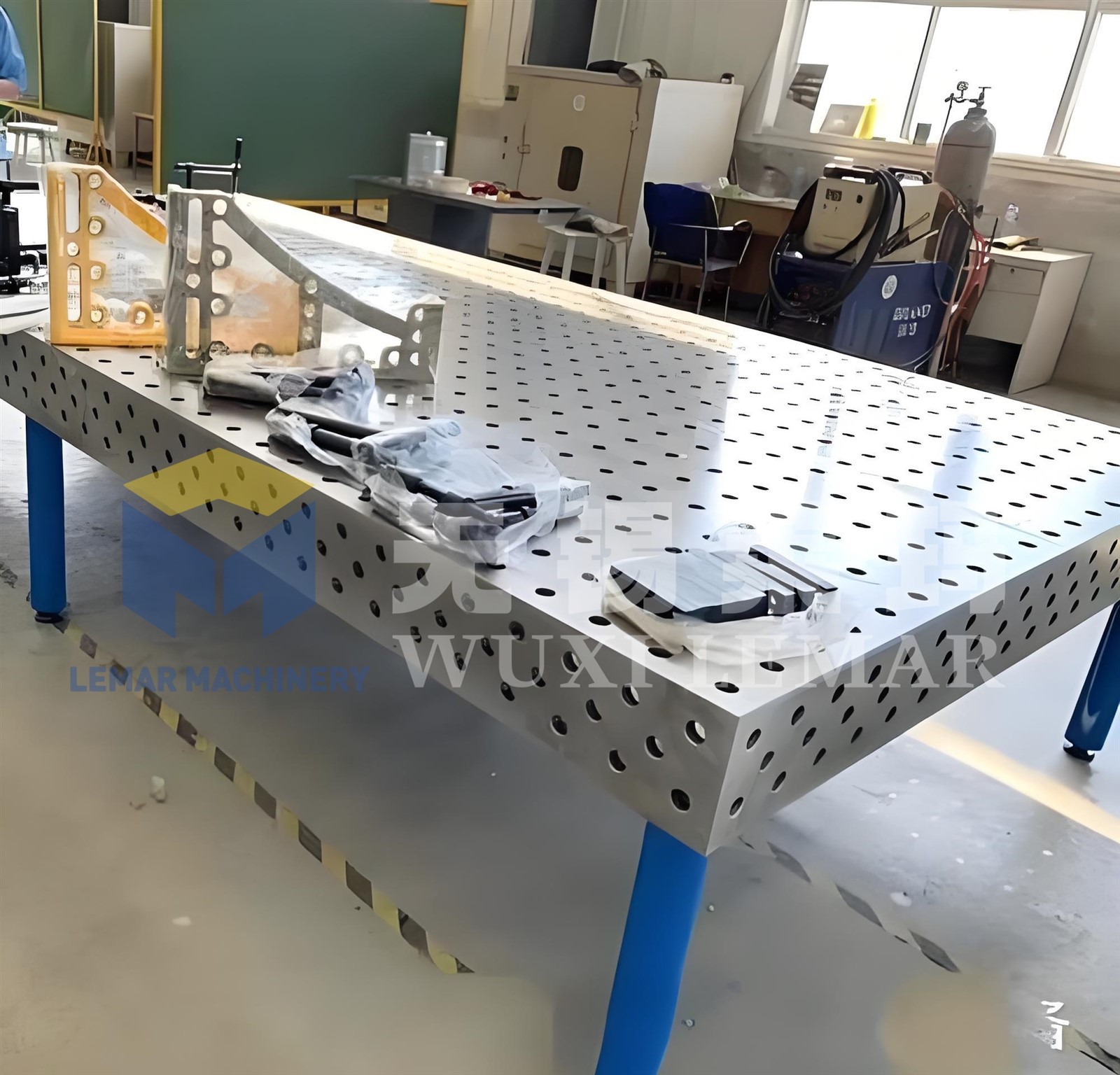

The Welding Fixture Tables is a modular metalworking platform based on a 16mm standard hole diameter. It is primarily used in metal processing applications such as welding, assembly, and inspection. Thanks to its precise hole pattern design and modular accessories, it enables quick positioning and clamping of workpieces, making it suitable for small to medium-batch, multi-product manufacturing.

Specifications

The standard hole spacing for the Welding Fixture Tables are 50±0.05mm, using a 50mm×50mm grid pattern. It is compatible with 16mm standard locating holes and is a common industry standard, ensuring workpiece positioning accuracy and fixture interchangeability. Some customized versions use a 100±0.05mm hole spacing to accommodate larger workpieces, but the 50mm hole spacing is the mainstream and more suitable for precise positioning and quick clamping of small and medium-sized parts.

Structural design

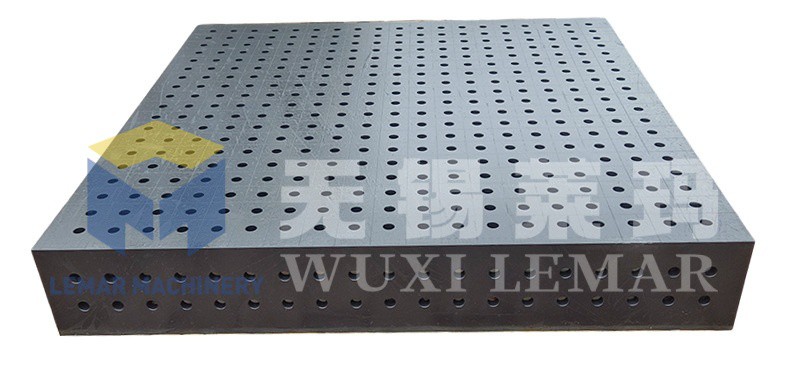

Base Table: Made of integrally formed cast iron or high-strength steel plate, the table surface is covered with 16mm precision positioning holes, arranged in a 50mm or 100mm grid pattern, and marked with corresponding grid lines for quick positioning and measurement.
Support Structure: The bottom features a reinforced rib design, and some models are equipped with adjustable support feet to adjust the table's levelness and adapt to different floor environments.
Modular Interface: The 16mm holes on the table surface and sides can connect various clamps, positioning blocks, support columns, and other accessories, enabling workpiece fixing in two or three dimensions.

Core Parameters

Hole Diameter: 16.055-16.199mm
Hole Spacing: 50±0.05mm or 100±0.05mm
Material: HT300 Cast Iron, Q355/Q455 Steel Plate
Tabletop Thickness: 12-30mm
Flatness: 0.1/1000mm
Perpendicularity: 0.2/200mm
Surface Hardness: HV450 (Nitrided)
Load Capacity: Standard 2 tons, up to 5 tons with frame structure
Surface Treatment: Nitriding, Blackening, Chrome Plating, etc.

Performance Characteristics

1. High-precision positioning: Hole position tolerances are controlled within ±0.05mm, and high flatness and perpendicularity accuracy ensure consistency in workpiece welding and assembly.
2. High flexibility: Modular design allows for quick replacement of fixtures and accessories, adapting to workpieces of different shapes and sizes, reducing tooling changeover time and improving production efficiency.
3. Excellent stability: The high rigidity and vibration resistance of the cast iron material effectively reduce vibration during processing, ensuring welding quality; the steel plate tabletop offers good toughness and deformation resistance.
4. High durability: Surface treatment processes such as nitriding increase the hardness of the tabletop, making it wear-resistant, corrosion-resistant, and less prone to welding slag adhesion, extending its service life.
5. Wide applicability: Suitable for various metal processing techniques, such as welding, mechanical assembly, inspection, and grinding, making it a versatile metal processing platform.

quality assurance

Every certificate is a badge of quality for the D16 metalworking jig table! As a leading manufacturer in the field of 3D welding tables, our D16 jig table is backed by authoritative certifications, providing a solid foundation for your processing accuracy.

It is certified by the ISO 9001 quality management system, ensuring that every process, from raw material selection to production process control, adheres to international standards, guaranteeing the consistency and reliability of each piece of equipment. It has also obtained ISO 3834-2 welding quality system certification, an internationally recognized cornerstone of welding quality, confirming the rigorous standards applied throughout the entire process, including process control, personnel management, and consumable traceability, resulting in safer and more stable welded structures.

From domestic compliance to international standards, from precision assurance to safety and reliability, every certification of the D16 jig table stems from genuine strength, allowing you to use it with confidence, weld with precision, and achieve high efficiency in welding, assembly, and inspection scenarios!

Customized services

Tabletop Size Customization: Within our standard mold range, we can adjust the length and width of the D16 work table to fit your workshop space or common workpiece sizes. Minor adjustments are free of charge, while significant customizations only incur a reasonable mold cost.
Hole Pattern Optimization: The 16mm standard hole diameter is a common industry specification (ensuring fixture interchangeability) and cannot be changed. However, we can adjust the hole spacing grid (50mm/100mm optional) or add positioning holes in specific areas of the tabletop based on your high-frequency welding processes to improve workpiece clamping efficiency.
Surface Treatment Customization: We offer nitriding treatment as standard (wear-resistant and slag-resistant). Based on your operating environment, we can also customize surface treatments such as blackening or chrome plating to meet specific needs such as rust prevention and easy cleaning.
Simple Accessory Customization: For workpieces with special shapes, we can customize matching simple positioning blocks, support bases, and other accessories that perfectly fit the 16mm hole system of the D16 work table, eliminating the need for you to purchase and modify general-purpose accessories.

After-sales service

The core structure is covered by a 3-year warranty, including key components such as the tabletop and support frame. Failures caused by product design, manufacturing, or material defects will be repaired or replaced free of charge.

Consumable parts (such as locating pins and clamp jaws) have a 6-12 month warranty. Replacements will be provided free of charge during the warranty period, excluding damage caused by human error, improper operation, or force majeure.

All Welding Fixture Tables undergo rigorous testing before leaving the factory to ensure a 100% delivery acceptance rate. The warranty period begins from the date of equipment acceptance.
