D28 2D Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description
- 3D Welding Table
- D28 Welding Table
- 2D Welding Table

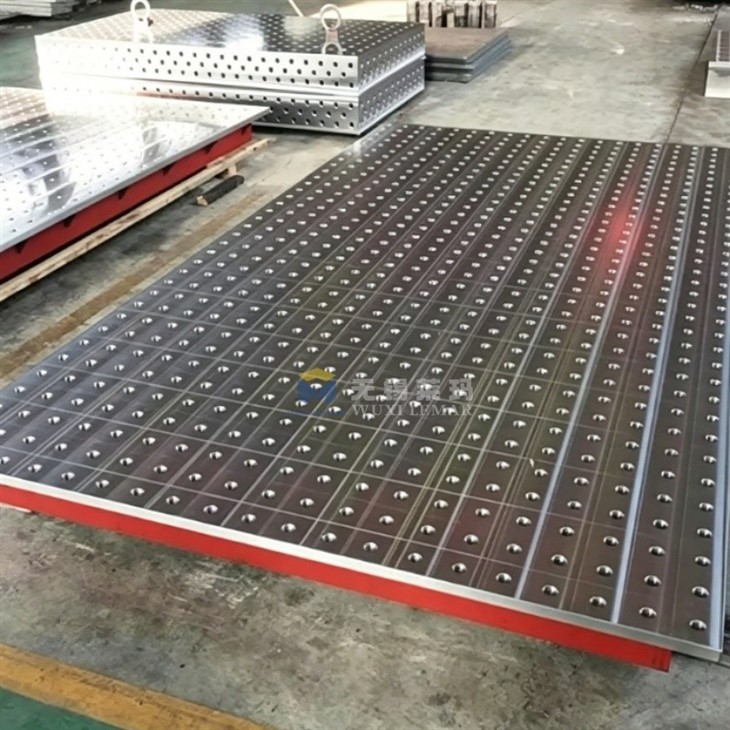

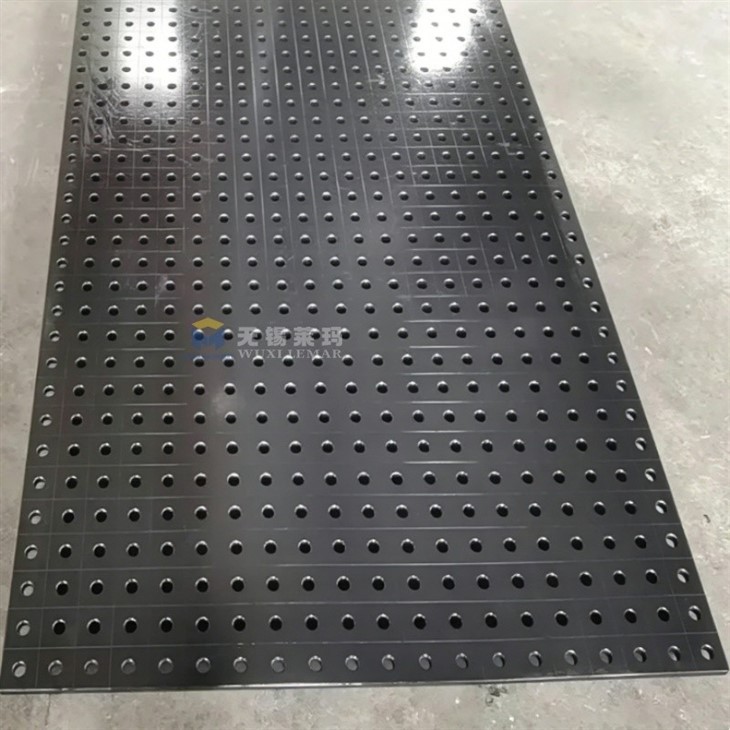

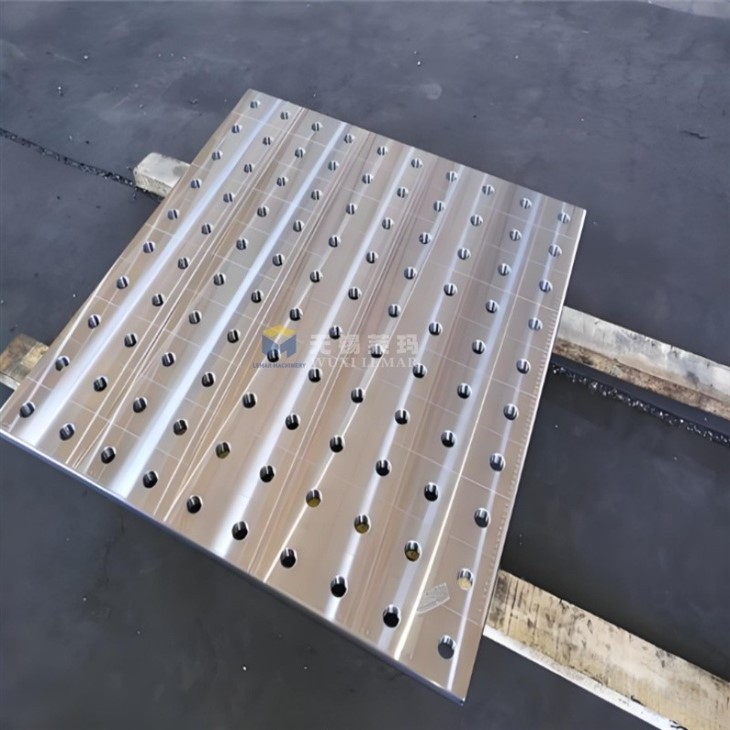

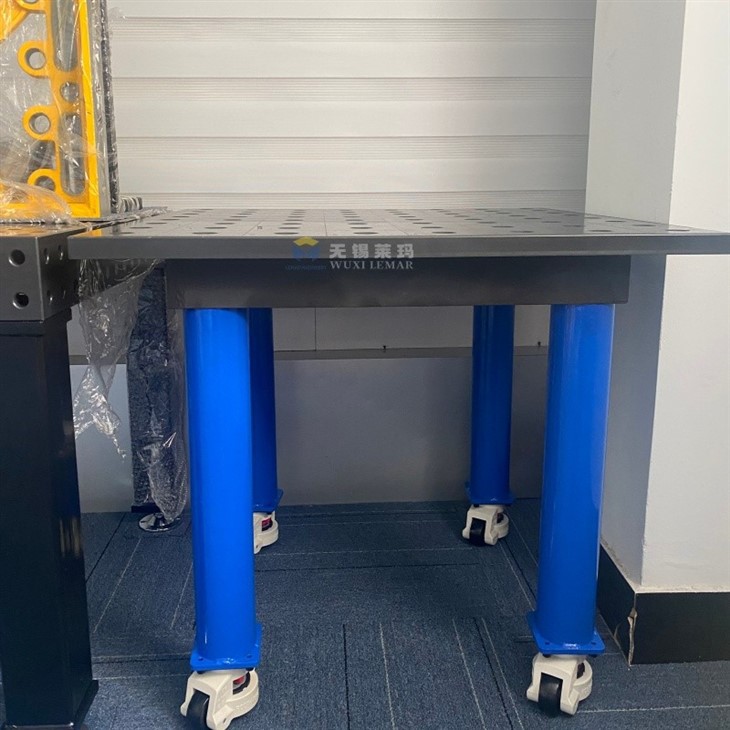

The D28 2D welding table is a high-precision, modular, two-dimensional plane positioning welding fixture platform, with a core of 28mm diameter positioning holes and 100mm grid spacing, used for fast clamping and precise welding of workpieces in the horizontal plane (X/Y axis), focusing on medium and heavy-duty welding/assembly scenarios.
Our Products

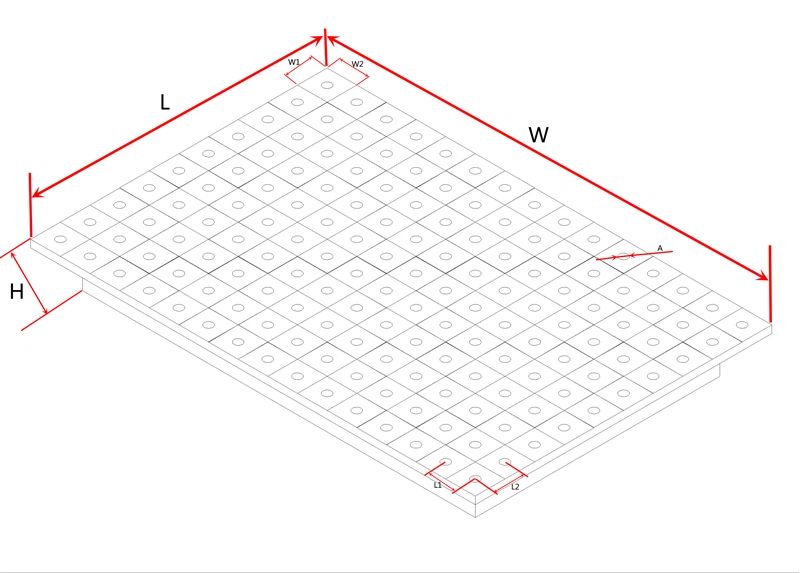

Product parameters
-
Hole diameter: φ 28mm
-
Surface roughness: Ra3.2.
-
Flatness: 0.3mm/1000mm
-
Hole spacing: 100 ± 0.05mm (grid center distance)
-
Verticality: 0.1mm/200mm
-
Tabletop: Q355/S355J2N steel plate (or HT300 cast iron), thickness 25mm
-
Size: Any size can be customized
core functionality
why choose us
WUXI LEMAR sells the highest quality welding tables
why choose our products
- Accurate positioning: Ensure that the relative position and angle of each component High precision: hole spacing ± 0.05mm, flatness 0.3mm/1000mm, precise and consistent welding dimensions.

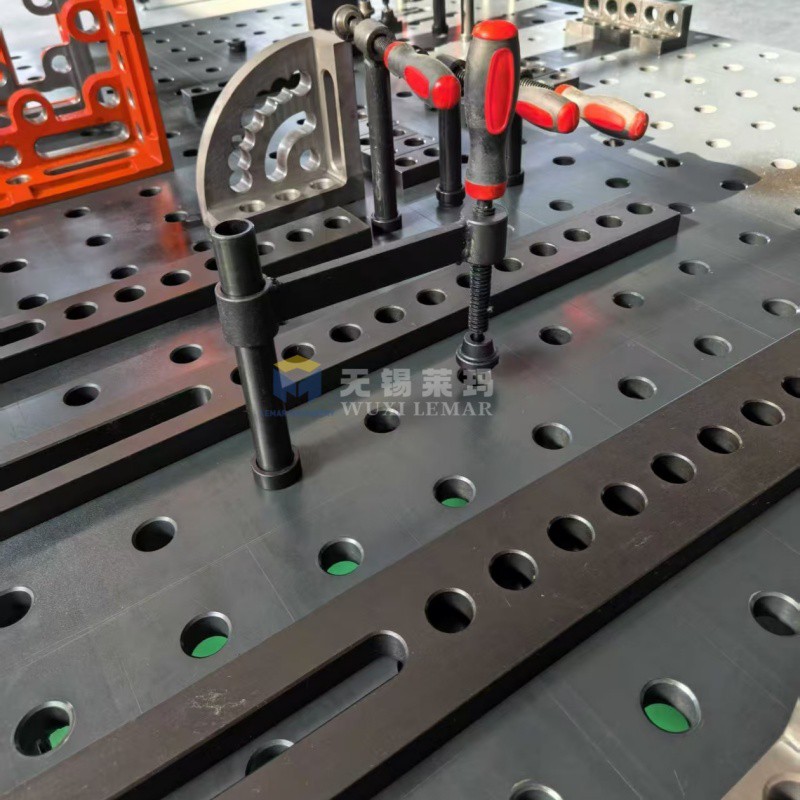

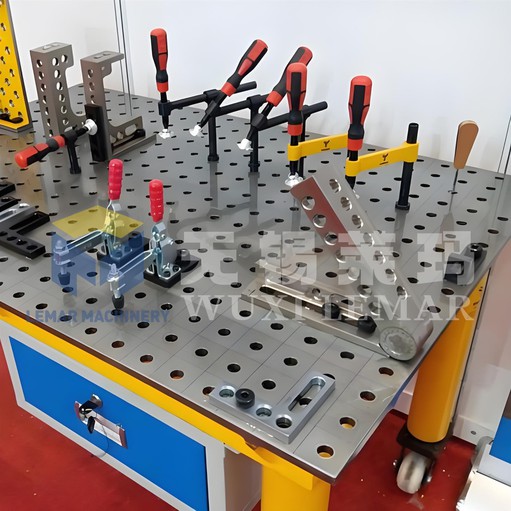

- High efficiency: Modular fixtures can be quickly replaced, reducing the time required for new product changes (saving over 70% compared to traditional fixtures).
- High load-bearing capacity: 1 ton/㎡, suitable for welding 2mm -20mm plates, profiles, and structural components.
- Durable and low maintenance: The nitrogen infiltrated surface is rust proof, slag resistant, wear-resistant, with a lifespan of over 10 years, and only requires cleaning of welding slag on a daily basis.
- High cost-effectiveness: 30% -50% cheaper than 3D platforms, meeting most flat welding needs.
Certificate of Product Quality
FAQ
Everything You Need to Know

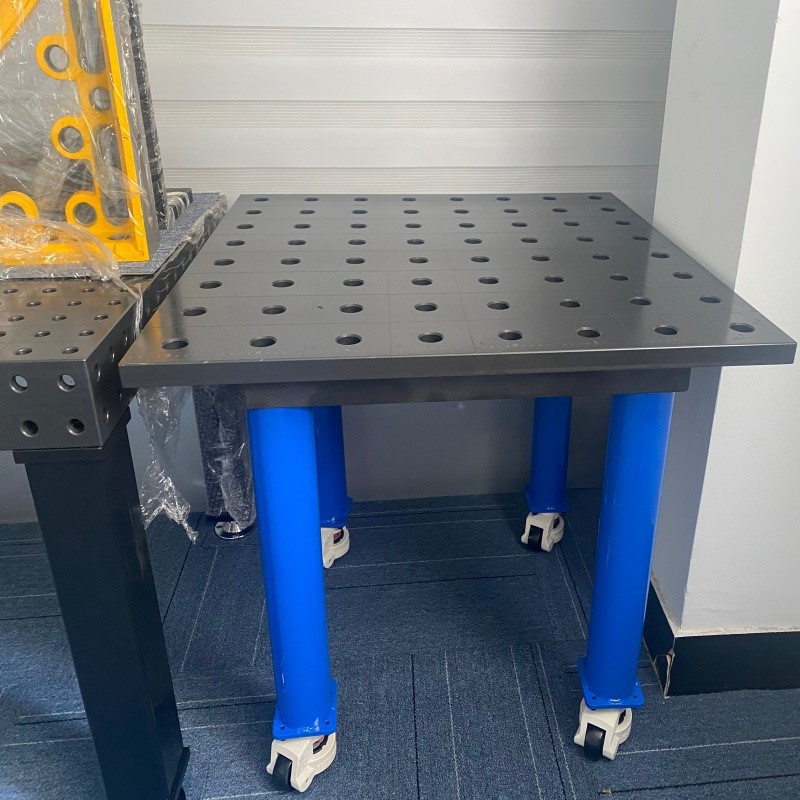

Can I customize table height / leg type?
Yes, fixed legs, adjustable height legs and mobile legs with casters are all optional.
Warranty period?
1 year warranty for whole table, lifelong technical support.
Which industries widely use D28 2D Welding Table?
Automotive parts, engineering machinery, metal structure, railway equipment, cabinet frame welding and assembly.
How to maintain the welding table?
Clean welding slag regularly, keep holes unblocked, avoid heavy impact and long-time high temperature burning.
Want to buy D28 2D Welding Table?
Feel free to contact us for more details. We're always here to help you.
