3D Welding Table For Sale

Name: China 3D Welding Table For Sale Manufacturers Suppliers Factory - Made in China
Brand: Lemar
SKU: 290247779

Material:Steel/Cast iron
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar

Send Inquiry

Products Description

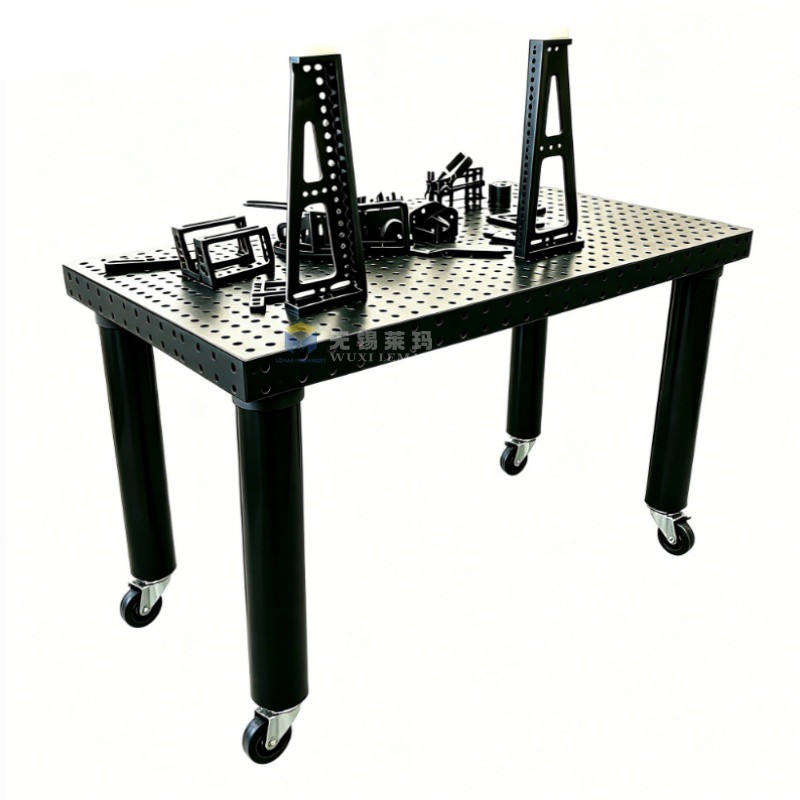

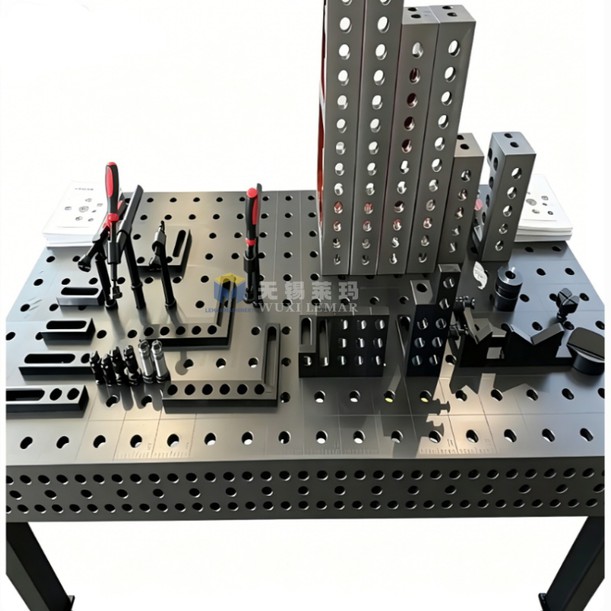

The 3D Welding Table for Sale is a modular fixturing platform for metal welding processes. Featuring high-precision positioning, a modular design, and multi-directional clamping capabilities, it is suitable for high-precision welding applications in industries such as automotive, aerospace, and heavy machinery. It supports rapid fixture setup while ensuring welding accuracy and consistency.

Large enterprise scale

wide application of technology

high-quality customized services

Specifications

3D Welding Tables for Sale are available in two main series: D16 and D28. The D28 series utilizes a Φ28mm grid hole system, featuring a robust structure and exceptional load-bearing capacity. It is specifically designed for welding and assembly of large and heavy workpieces, making it a classic choice for heavy industry. The D16 series, on the other hand, employs a more precise Φ16mm grid hole system with smaller hole spacing and more compact and lightweight modules. This allows for extremely fine and complex positioning and clamping, making it particularly suitable for small to medium-sized workpieces requiring high precision, such as those in the aerospace and precision instrument industries. Both series are based on a modular design, utilizing standardized, high-precision hole systems and various fixtures to achieve fast, stress-free, and repeatable precise clamping of workpieces from any direction, fundamentally changing the paradigm of traditional welding and manufacturing tooling.

Technical parameters (common specifications, customization available)

1. Dimensions and Specifications
Standard sizes: 1000mm×1500mm, 1500mm×2000mm, 2000mm×3000mm, etc.;
Custom sizes: Length, width, and height can be adjusted according to customer workpiece size to adapt to special production line layouts.
2. Hole Details
Hole diameter: Primarily D16 (16mm) and D28 (28mm);
Hole spacing: 50mm×50mm grid (mainstream), some are 100mm×100mm;
Hole depth: Through-hole or blind hole, meeting different fixture installation requirements.
3. Accuracy Indicators
Flatness: ≤0.05mm/m²;
Hole position tolerance: ±0.02mm;
Perpendicularity: ≤0.03mm/m, ensuring accurate three-dimensional positioning.
4. Surface Treatment
Nitriding treatment: Improves hardness (HV800+) and wear resistance, and provides corrosion resistance;
Quenching treatment: Surface hardness HRC50-60, resistant to thermal deformation.

Core Definitions and Positioning

1. Essence: An industrial-grade welding fixture platform that utilizes a precise grid hole system on the table and sides (such as the D16/D28 hole system, commonly with 50mm×50mm or 100mm×100mm grids) to achieve rapid positioning and clamping of workpieces in three-dimensional X/Y/Z space, replacing traditional dedicated fixtures and adapting to flexible production of multiple varieties and small batches.
2. Core Value: Improves welding accuracy (reduces dimensional deviations), shortens fixture changeover time (improves production efficiency), reduces the cost of dedicated fixtures (modular reuse), and ensures welding consistency (suitable for mass production).

Main features and advantages

1. Extremely High Repeatability and Consistency:After initial positioning and alignment, the tooling scheme can be recorded using standardized coordinates. When producing similar parts in the future, the tooling can be quickly restored, achieving "zero" setup time and ensuring complete dimensional consistency for batch production.

2. Stress-Free Clamping:Flexible and precise clamping from multiple directions avoids or minimizes workpiece deformation caused by clamping forces, which is especially important for thin-walled parts and precision components.

3. Exceptional Flexibility and Efficiency: One system can replace a large number of dedicated fixtures customized for single products. Through rapid assembly of modular components, it can adapt to workpieces of different shapes and sizes, significantly reducing tooling preparation time (by 80%-90%), making it ideal for flexible manufacturing models with multiple product varieties and small batch sizes.

4. Multifunctional Integration:In addition to welding, it is widely used in inspection and measurement, assembly, metal cutting (as a base platform), and robotic applications. It is a core infrastructure for building modern flexible manufacturing systems.

5. Improved Product Quality:Through precise positioning and clamping, it effectively controls welding deformation and ensures weld accessibility, thereby significantly improving product dimensional accuracy and quality.
