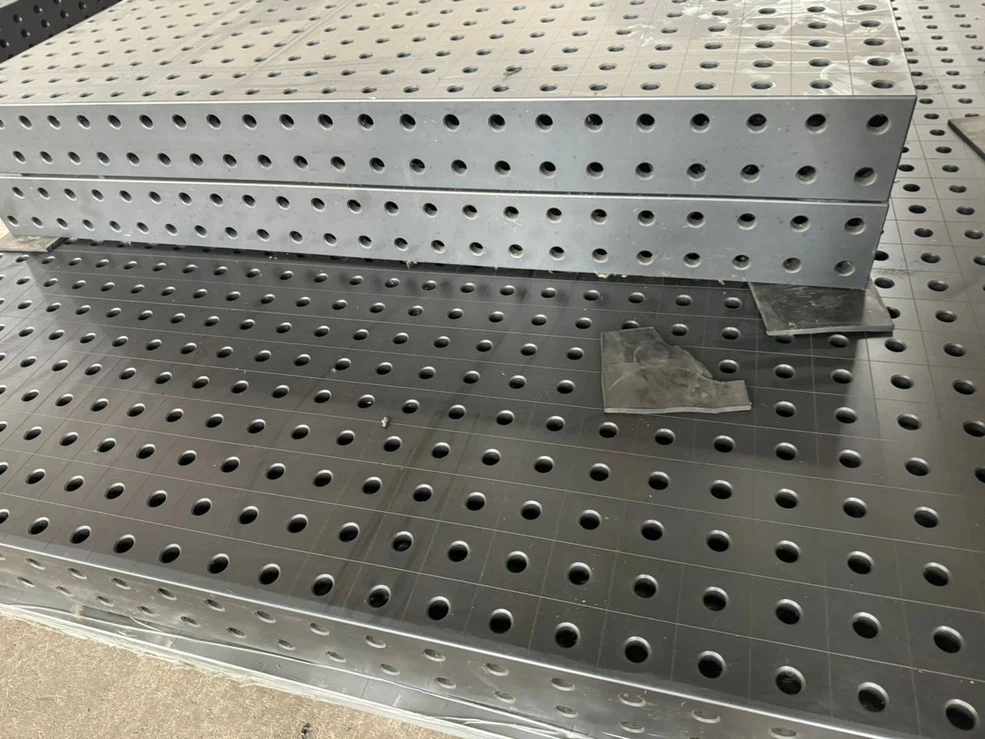

D16 Welding Table Nitrided
Material:Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D16
Size:1000*1500mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
D16 Nitrided Welding Workbench – All-Steel, Large-Size Precision Welding Solution
[Get Factory Price →Eva summer]
WUXI LEMAR
Product Overview

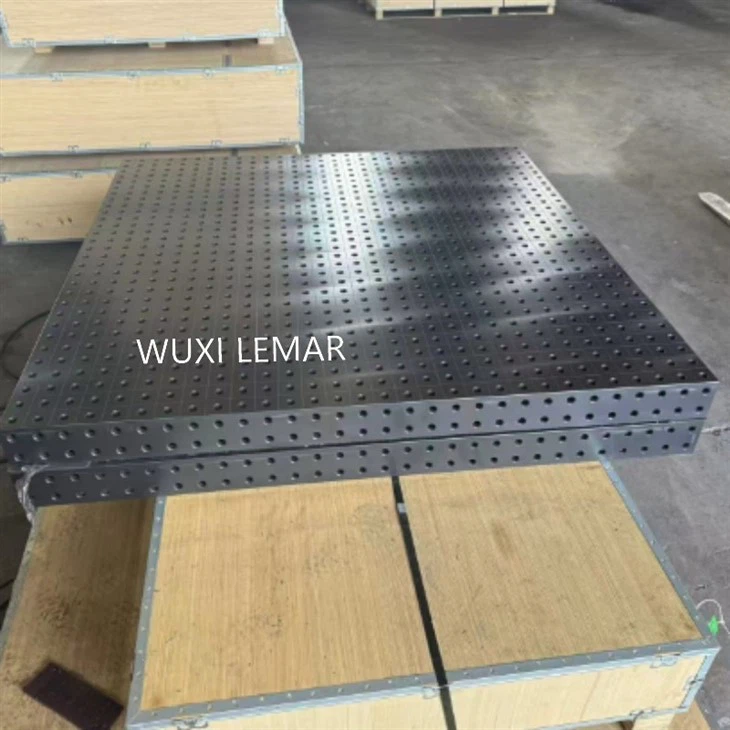

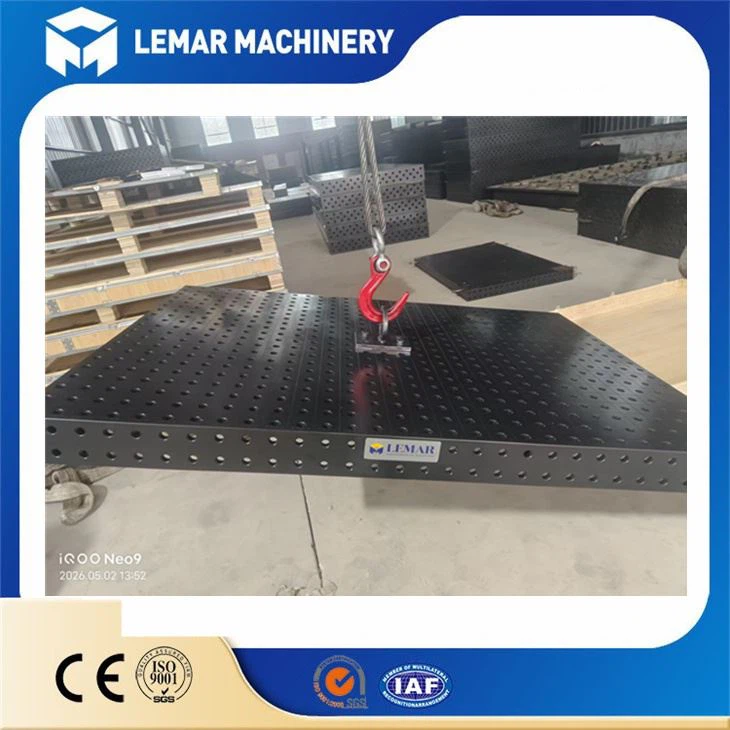

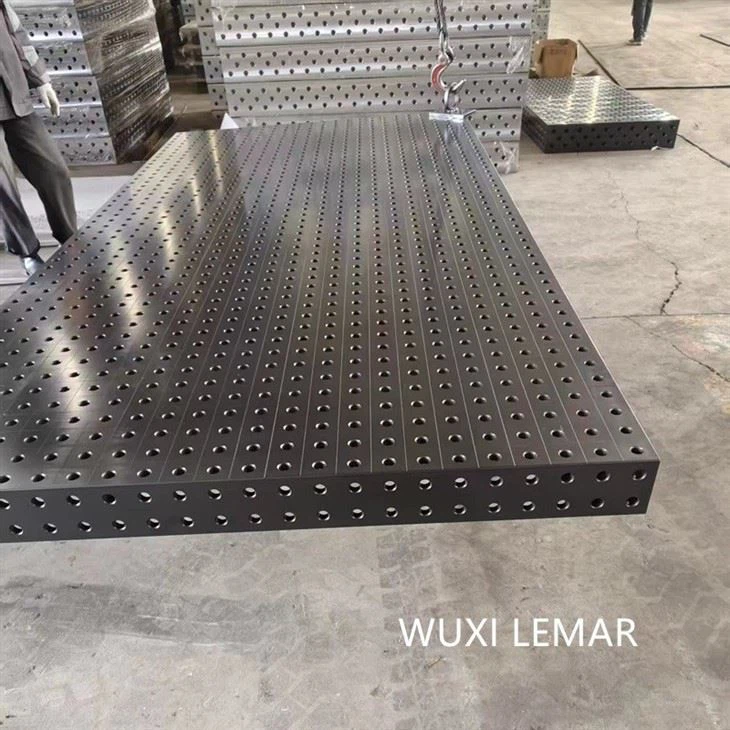

D16 Nitrided Welding Table is a heavy-duty, precision-engineered steel platform designed for high-accuracy welding and assembly.
D16 : Features a grid of 16mm diameter system holes for modular fixturing.
Nitrided : The surface is treated with gas nitriding, creating an ultra-hard, spatter-resistant, and corrosion-proof layer.
Dimensions : 1000mm (W) x 1500mm (L) – Optimized for large workpieces, pipe structures, and heavy machinery repair.
Material : Full steel construction – Delivers extreme load capacity and impact resistance.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47(Eva Summer)

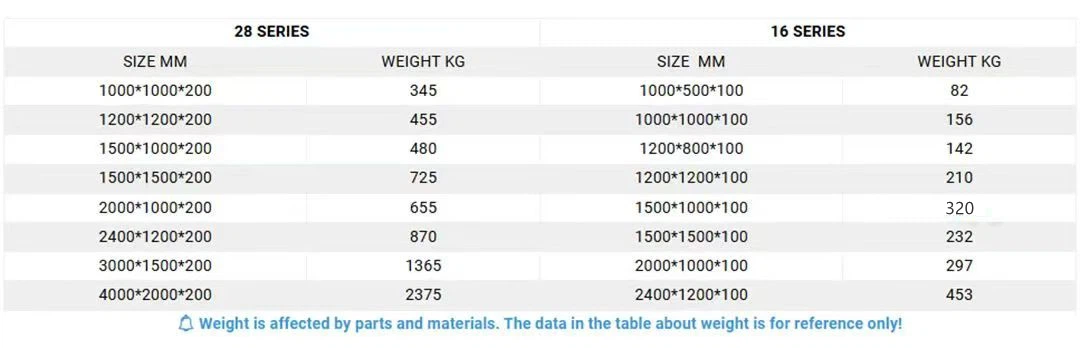

Products Parameters
Products Advantages
Why choose this Welding Table?
✔ Nitrided Surface – Say Goodbye to Spatter
The problem: Spatter sticks like concrete to ordinary tables.
The solution: The nitride layer is hard and non-reactive. Spatter pops off with a light scrape. No grinding the table. 50% efficiency gain.
✔ D16 High-Density Hole Pattern – Pinpoint Accuracy
16mm holes on a precise grid (100mm or 125mm spacing).
Use with pins and clamps to achieve ±0.05mm positioning accuracy. No more marking and guessing.
✔ Generous 1000*1500mm Working Area
Large enough for truck frames, industrial cabinets, pipe assemblies, and even holding your blueprints side-by-side.
✔ Full Steel + Reinforced Construction – Massive Load Capacity
Ribbed underside with stress-relieving heat treatment.
Uniform load capacity exceeds 2000kg. Stable even when welding 10mm steel plate.
✔ Pre-Ground & Certified Flatness
Factory flatness within 0.5mm per square meter. Use it as a precision datum surface immediately.
High Purity Q355 steel Material
Tougher and more resistant to use
In-stock goods
Source manufacturer with guaranteed production capacity

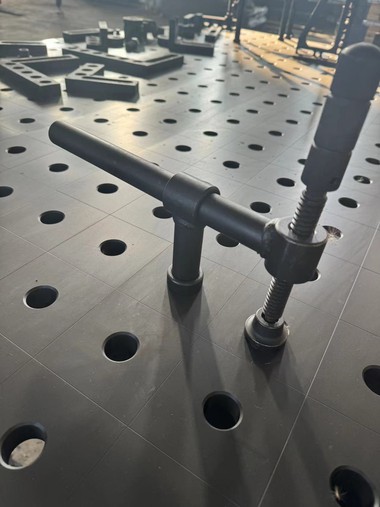

High precision fixtures

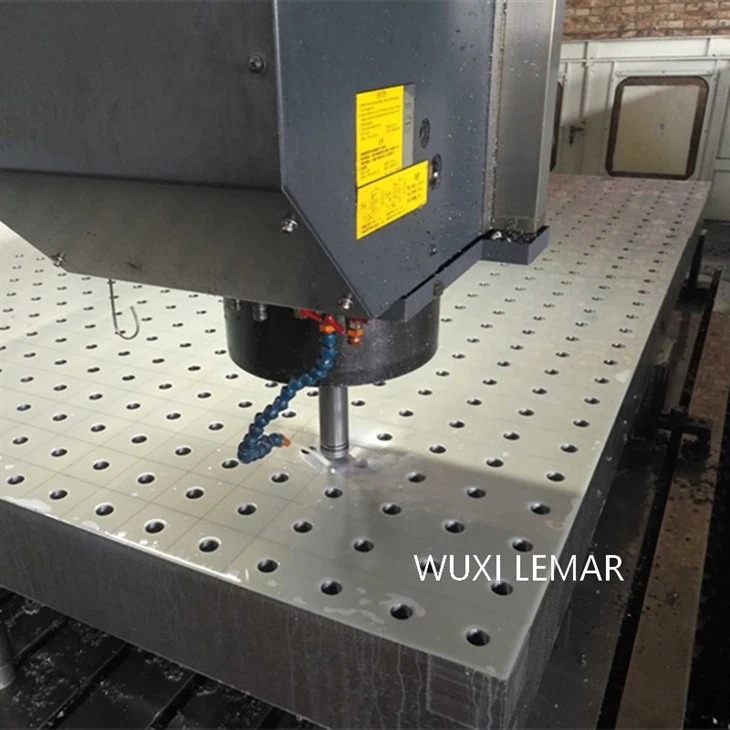

Made by CNC machine,16mm/28mm two systems are compatible.
Adjustable legs
4 types legs:standard legs/adjustable legs/caster wheel legs/square legs.

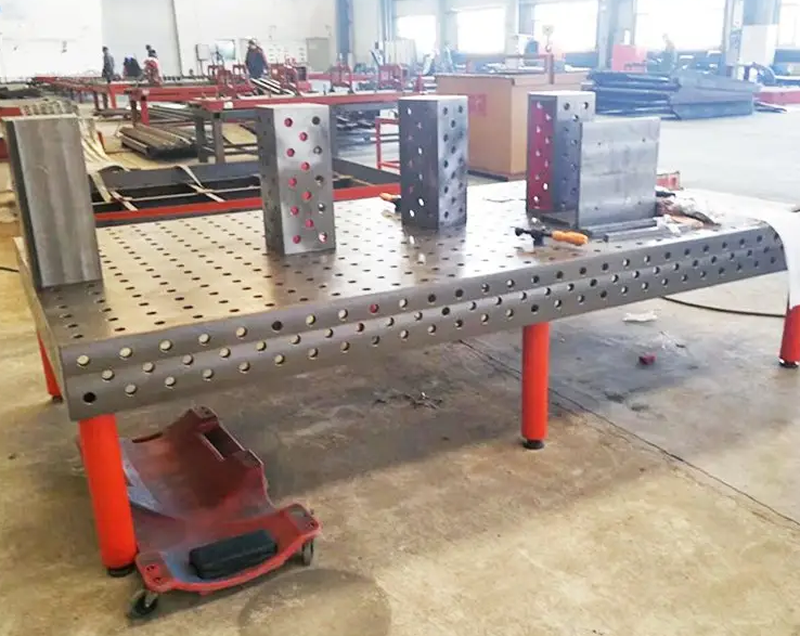

Products Application
Heavy Fabrication : Construction equipment arms, mining frames, large tank pre-assembly.
Automotive & Motorsports : Roll cage welding, chassis alignment, subframe fixturing.
Metal Art & Sculpture : Large-scale拼接 requiring distortion-free results.
Pipe & Pressure Vessel : Quickly build pipe supports using D16 holes.
Vocational & Trade Schools : Standard testing platform for student alignment skills.
Shipping & Packaging

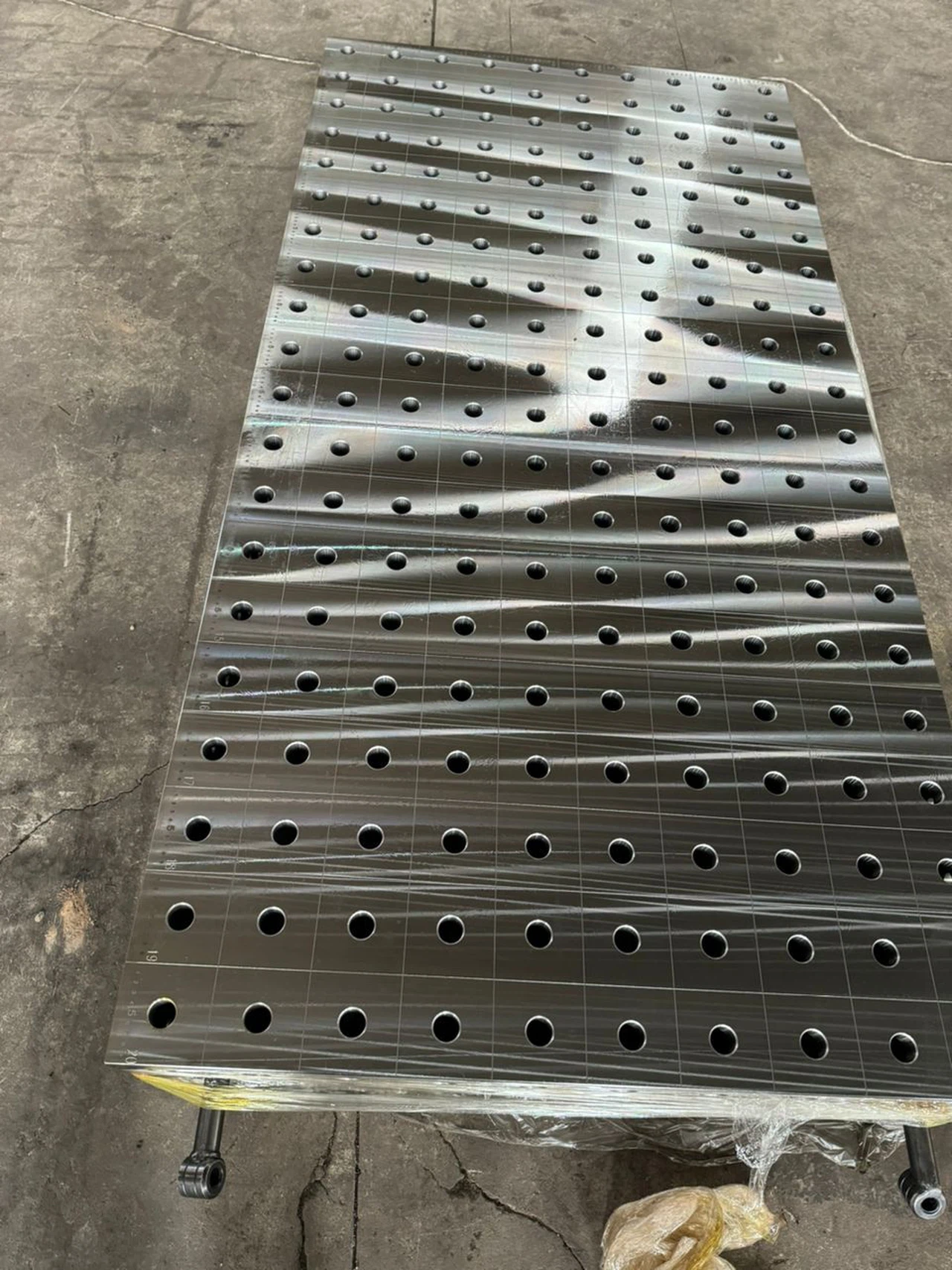

Packaging: Heavy-duty wooden crate + foam padding + anti-rust oil coating
Shipping: Freight (LTL / full truckload) – please contact for quote
Lead time: 15–30 days (depending on quantity and custom specs)
FAQ
Q1.How is nitrided surface different from painted or black oxide?
Q2.Will this table warp over time?
Q3.Do I need special D16 clamps? Can I use regular C-clamps?
Q4.Is it shipped assembled?
Q5.It looks heavy. How do I move it?
Stop fighting spatter and re-aligning parts. The D16 Nitrided Welding Table makes every joint, every angle, and every weld repeatably perfect.
[Request a Quote] | [View Fixturing Kit] | [Contact Us for Custom Sizes]
📞 Contact our sales team now
📧 Email: evasummer@lemarmetal.com
📞 Phone: +86 159 9526 9947
🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
