Jig Table For Welding
Application:Welding&Assemble
Process:CNC Machining
Surface:Normal/Nitrided
Type:3D
Brand:Lemar
Contact
Cell: +86 159 952 699 47(Whatsapp/Wechat)
Email: evasummer@lemarmetal.com
Products Description

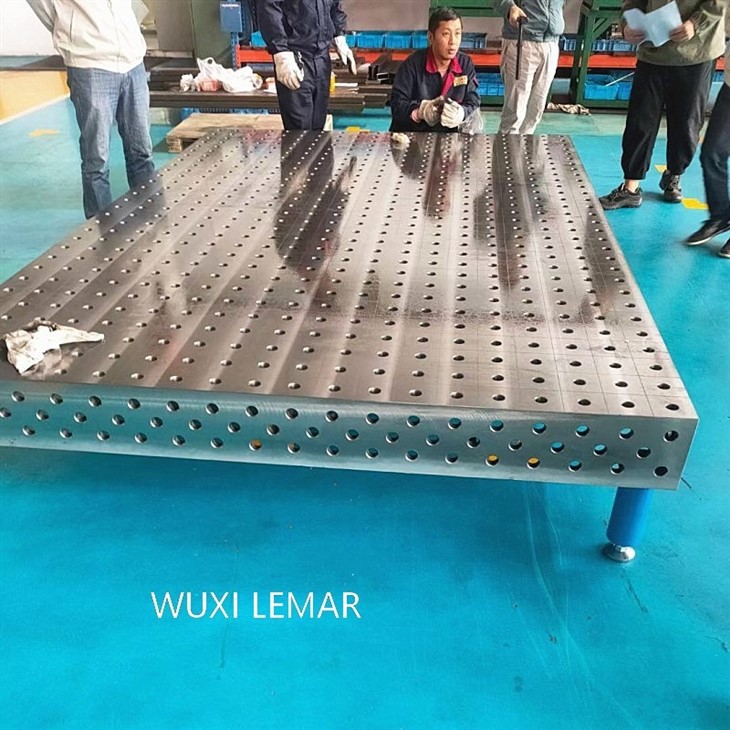

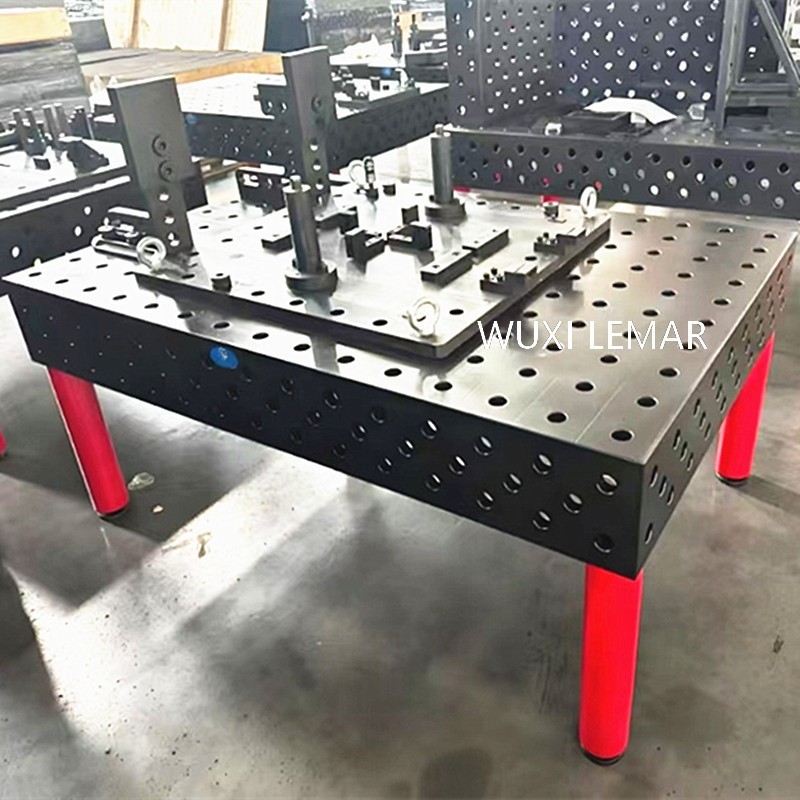

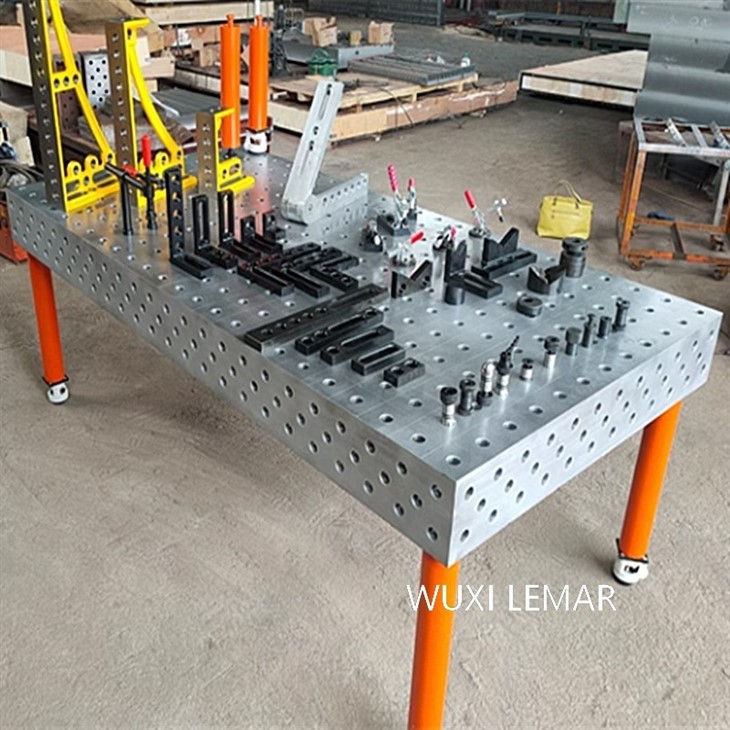

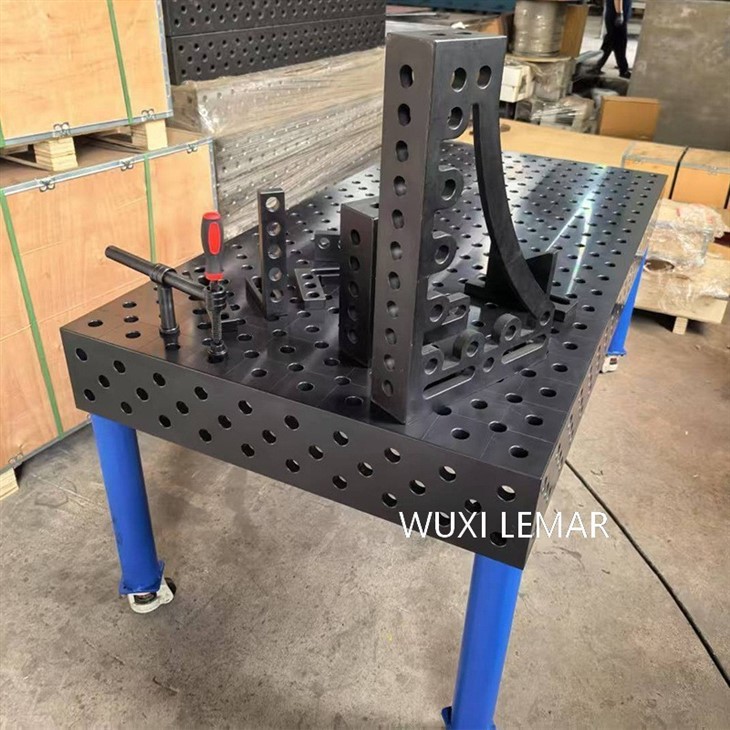

Jig Table For Welding is not just a "table" for placing things, but a precise "positioning and clamping system". Its basic structure is a workbench surface with regularly arranged hole systems (such as threaded holes, unthreaded holes) or slot systems. By matching various functional fixtures (such as pressure arms, positioning blocks, angle devices), it can quickly build welding fixtures suitable for specific workpieces.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47
Evasummer@lemarmetal.com
Products Parameters
Products Specification
Main Features
Modularity and Flexibility: This is its greatest advantage. Users do not need to design and manufacture a dedicated, expensive welding fixture for each new product. They only need to use the workbench's standard hole/slot system and universal fixture components to quickly assemble the required clamping solution like "building blocks". When the product changes, the fixture can be quickly disassembled and reconfigured.
High Repeatability Accuracy: Jig Table For Welding surface undergoes precision machining, featuring high flatness, straightness, and dimensional accuracy. The spacing of positioning holes is consistent, ensuring the repeat positioning accuracy of each clamping.
Strong Clamping Force: Equipped with quick clamps, spiral clamps, etc., which can provide strong and reliable clamping force, effectively resisting welding stress and deformation.
Efficiency Improvement: Workpieces can be quickly placed into preset positioning blocks and clamps and locked, greatly reducing preparation time and improving production efficiency.
Wide Application Range: From small precision parts to the assembly and welding of large structural parts, there are welding fixture workbenches of corresponding sizes and load-bearing capacities to choose from.
Jig Table For Welding is a fundamental piece of equipment for achieving standardization, lean production, and automation in modern welding manufacturing. Through its modular and high-precision design, it transforms the traditional welding process, which relies on individual skills and is uncontrollable, into a stable, reliable, and repeatable industrial production process. It not only ensures product quality (with low precision and small deformation) but also greatly improves production efficiency, reduces excessive reliance on operators' skills, and lowers the overall cost of tooling manufacturing. It is an indispensable core tooling in welding workshops.
