3D Cast Iron Flexible Welding Platform suppliers

3D Cast Iron Flexible Welding Platform factory

3D Cast Iron Flexible Welding Platform

Name: China 3D Cast Iron Flexible Welding Platform Manufacturers Suppliers Factory - Free Sample
Brand: Lemar
SKU: 276365709

Material:Cast Iron
Application:Welding&Assemble
Process:CNC Machining
Surface:Nitrided/Normal
Leg:Standard Legs
Type:3D
Brand:Lemar

Send Inquiry

Products Description

3D Cast Iron Flexible Welding Platform is a modular and reconfigurable welding fixture system primarily used for workpiece positioning and clamping in manufacturing processes such as welding, assembly, and inspection. Its core feature is the use of high-strength cast iron as the base material, combined with standardized positioning holes and modular fixture components, enabling quick adjustments and reuse.

Our address

505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA

Phone Number

+86 159 952 699 47

E-mail

Evasummer@lemarmetal.com

Products Parameters

3D welding platform

Products Specification

Main Components

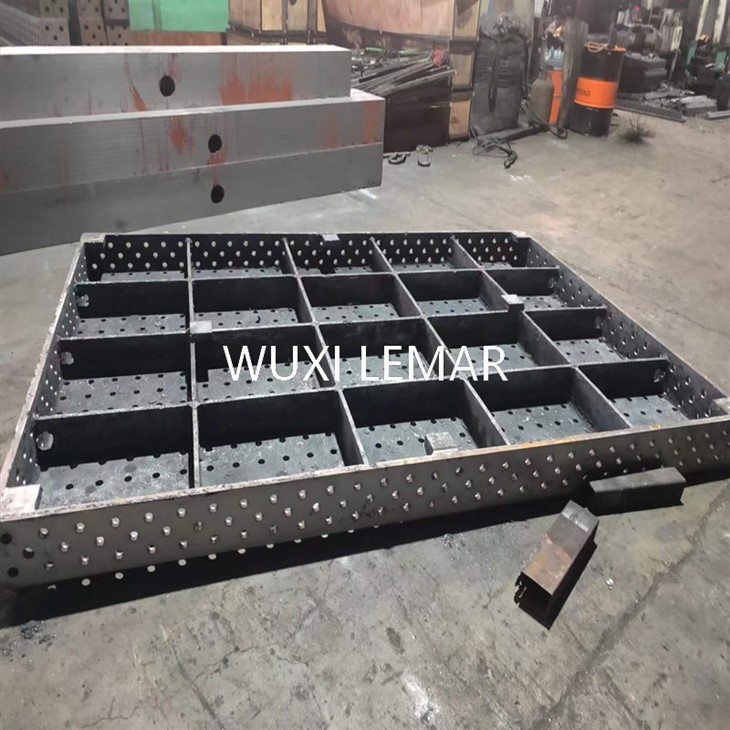

(1) Cast Iron Base Plate

Material: High-strength gray cast iron (HT250/HT300) or ductile cast iron (QT450), offering excellent rigidity, vibration damping, and wear resistance.

Structure: The surface features a grid of precisely spaced positioning holes (typically φ28mm or φ16mm, spaced at 50mm or 100mm intervals) and is precision-machined to ensure high flatness (usually ≤0.05mm/m²).

Sizes: Common dimensions include 1000×1000mm, 1200×1500mm, and 2000×4000mm, with custom sizes available.

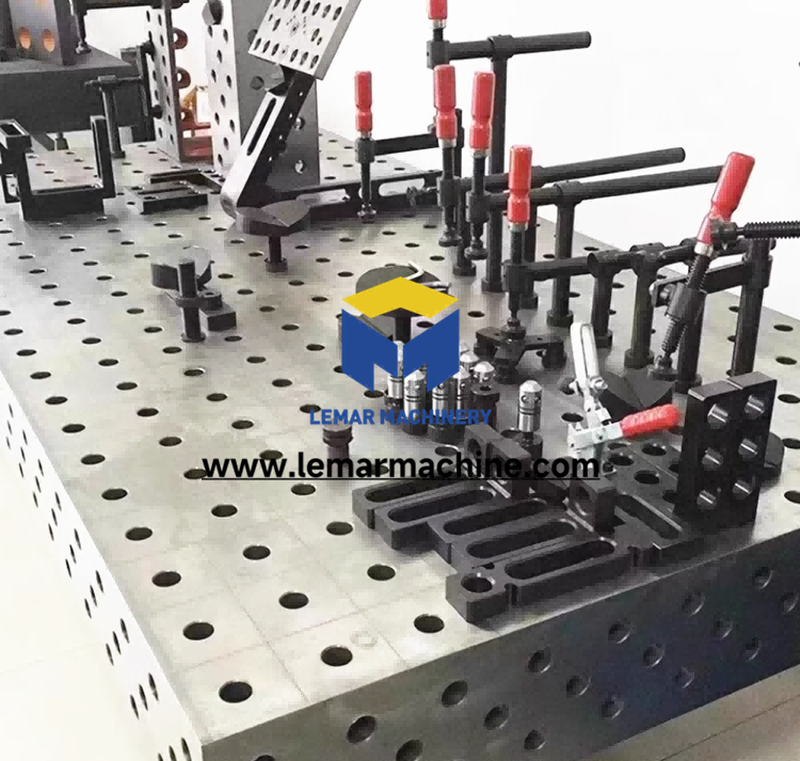

(2) Positioning & Clamping Components

Locating Pins: For precise workpiece positioning.

Support Blocks: Height-adjustable to accommodate different workpiece shapes.

Clamping Elements: Manual, pneumatic, or hydraulic clamping options.

Angle Plates: For tilting or complex-angle positioning.

Extension Arms: To expand the working range.

(3) Accessories

T-Slot Bolts: For securing fixture components.

Magnetic Bases: For quick attachment to metal workpieces.

Measuring Scales: For alignment and positioning assistance.

3D Cast Iron Flexible Welding Platform is a critical tool in modern welding manufacturing, particularly for flexible, small-batch, multi-variant production. Its high precision, stability, and modularity make it widely applicable in automotive, aerospace, and heavy machinery industries. Compared to traditional welding fixtures, it significantly improves efficiency, adaptability, and long-term cost-effectiveness.
