3D Welding Table System

Name: 3D Welding Table System - China 3D Welding Table System Manufacturers Suppliers Factory
Brand: Lemar
SKU: 271784581

Material:Cast Iron/Q355 steel/Stainless steel
Application:Welding&Assemble
Process:CNC Machining
Type:2D/3D
Brand:Lemar

Send Inquiry

Products Description

3D Welding Table System

Core functions and advantages
High-precision positioning: The tolerance of the hole array can reach ±0.02mm, ensuring repeat positioning accuracy.
Flexible production: By replacing the fixture,3D Welding Table System can process multiple types of workpieces, reducing changeover time.
Three-dimensional expandability: Supports stacking fixtures in the vertical and horizontal directions to build complex tooling structures.
Stress control: The rigid worktable reduces welding deformation and improves product consistency.

Products Parameters

Welding Jig Table

Products Specification

Some Details about our product

3D Welding Table System

Typical application scenarios
Multi-variety and small-batch production: such as aerospace components, automotive chassis welding.
Complex structural components: such as pipeline frameworks, special-shaped metal sculptures.

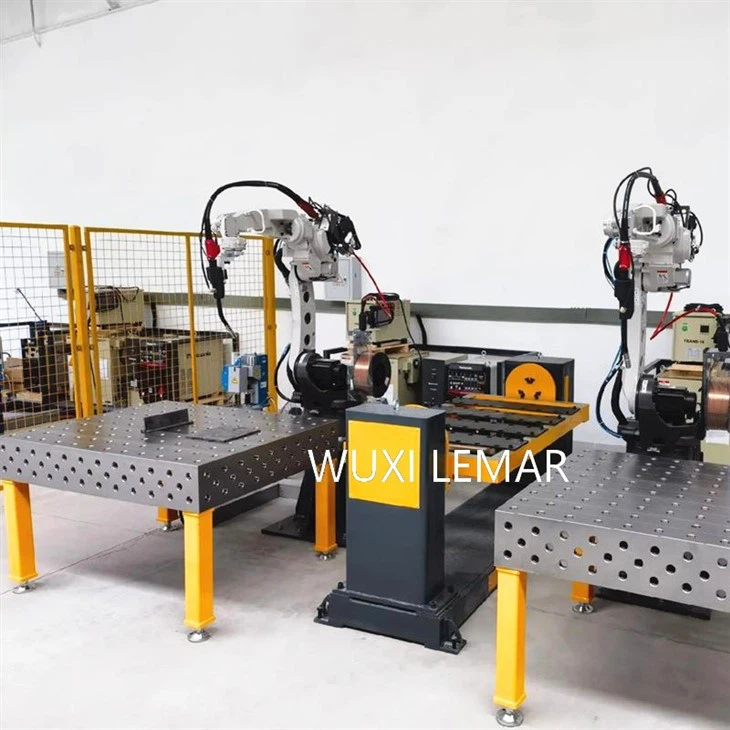

Automation integration: cooperate with the robot welding unit to achieve precise path programming.

Selection and Usage Suggestions
Select the size of 3D Welding Table System according to the size of the workpiece, and reserve space for fixture installation.
Give priority to standardized fixtures (such as EURO or DOVETAIL standards) for compatibility.
Regular Maintenance: Clean the debris in the holes and apply rust-proof oil to extend the service life.

3D Welding Table System is a modular and flexible tooling system designed specifically for manufacturing processes such as welding, assembly, and inspection. Its core components consist of a flat plate with a standard hole array (the fixture table) and matching jigs. Through precise positioning and clamping in three - dimensional space, it ensures that workpieces maintain stability and repeat accuracy during the processing.
