3D Welding Fixture System
Application:Welding&Assemble
Process:CNC Machining
Surface:Nitrided Type:3D
Brand:Lemar
Products Description

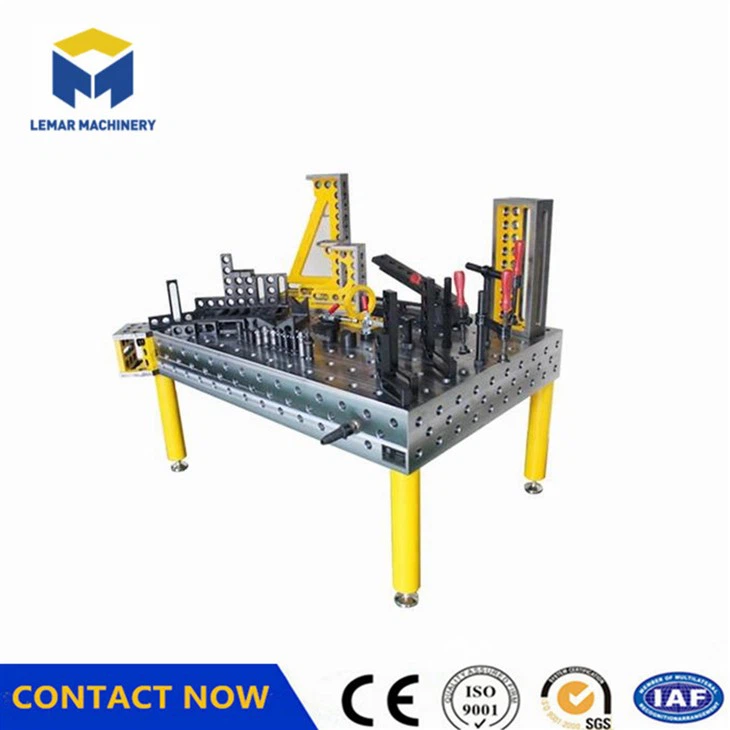

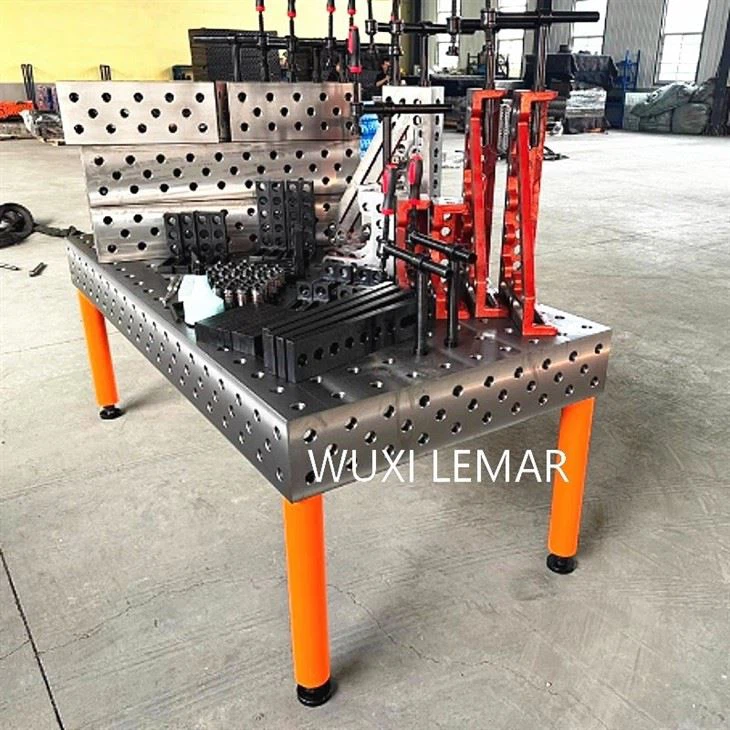

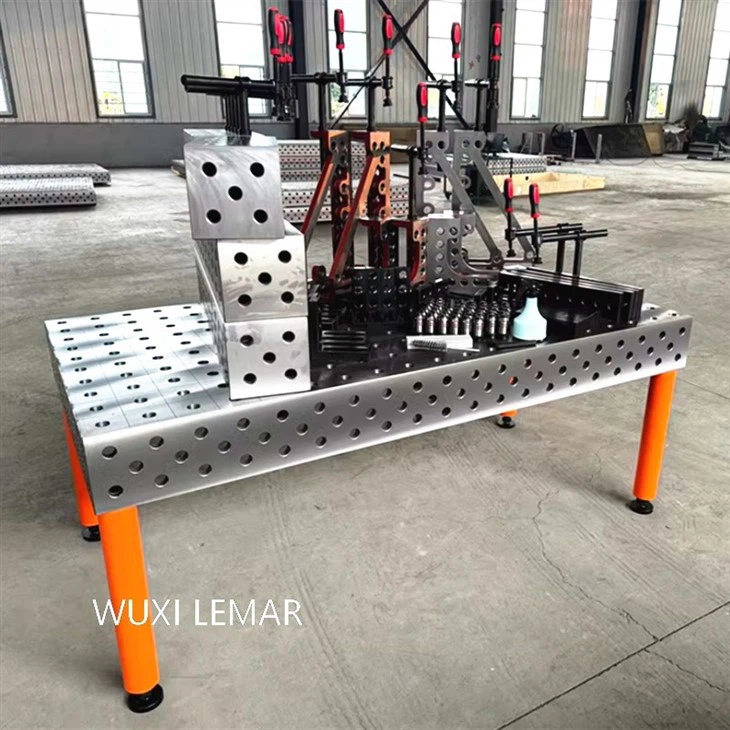

3D Welding Fixture System
3D Welding Fixture System is a kind of modular, flexible and reusable welding workbench, which is widely used in many industries.
Definition: A flexible welding platform is a highly adaptable and scalable welding workstation typically composed of multiple modular units. These units can be freely assembled and adjusted according to the shape and size of workpieces.
Function: The system enables rapid positioning and clamping of variously shaped workpieces through quick-connect pins, while also supporting arbitrary three-dimensional combinations and repeated use. This makes it suitable for welding diverse components and product assembly processes.
Features Of product
Modular Design: The platform consists of multiple modules, enabling users to quickly assemble workstations with customized configurations according to requirements, significantly enhancing operational flexibility and efficiency.
Flexibility: This platform adapts to various workpiece shapes and dimensions, eliminating the need for designers to repeatedly redesign and manufacture tooling, thereby reducing costs.
High Precision & Stability: Flexible welding platforms typically feature high flatness and vertical alignment, ensuring precision and stability during welding processes.
Wide Applications: These platforms are widely used in automotive manufacturing, construction machinery, shipbuilding, aerospace, rail transit, structural component welding, sheet metal fabrication, bicycle/motorcycle production, as well as integrated applications with welding robots or specialized welding machines.
Our Service Processes
Whatsapp Phone Number:+8615995269947(Eva summer)
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receive
5
>>
After-sale Services
6
Products Parameters
Products Advantages
Specifically, 3D Welding Fixture System (particularly three-dimensional models) offer following advantages:
1. High interchangeability: Modules can be freely combined and adjusted according to practical needs.
2. Cost-effectiveness: The reusable design eliminates redundant tooling costs, delivering excellent value for money.
3. Precision positioning: The integrated hole systems and grid lines facilitate workpiece alignment and clamping, enhancing welding accuracy and efficiency.
In summary, these modular, adaptable, high-precision, and stable platforms play a vital role across industries, serving as essential tools for improving welding productivity and quality standards.
Take action immediately!
📞 Contact our sales Engineer:Eva summer today for a customized quote.
📧 Email: evasummer@lemarmetal.com
📞 Phone: +86 159 9526 9947
🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
