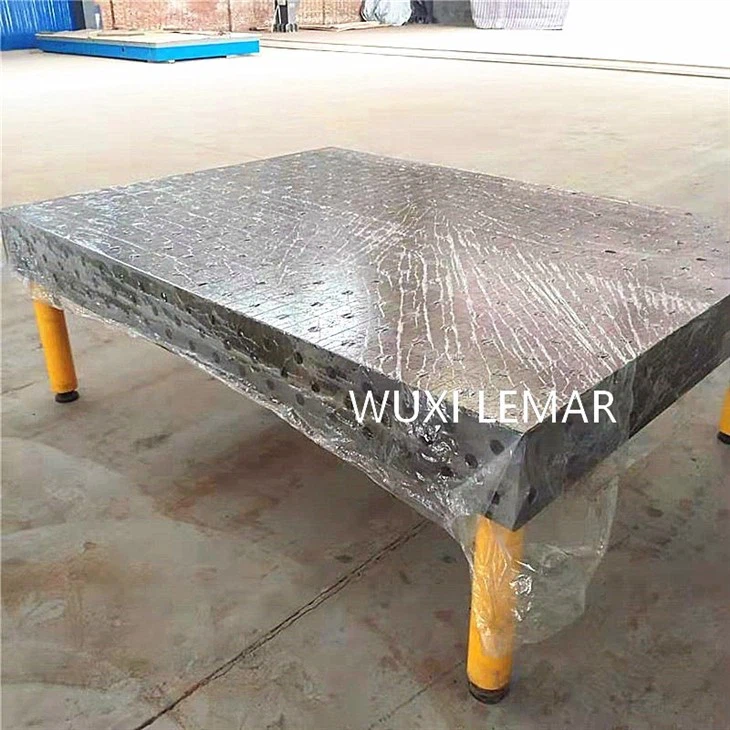

Cast Iron 3D Welding Table

Name: China OEM Cast Iron 3D Welding Table Manufacturers Suppliers Factory - Wholesale Service
Brand: Lemar
SKU: 276032569

Material:Cast Iron/Q355 steel
Application:Welding&Assemble
Process:CNC Machining
Surface:Nitrided/Normal
Leg:Standard Legs
Type:3D
Brand:Lemar

Send Inquiry

📞 Contact our sales Engineer:Eva summer today for a customized quote.

📧 Email: evasummer@lemarmetal.com

📞 Phone: +86 159 9526 9947

🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table

*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*

Products Description

Cast Iron 3D Welding Table

Cast Iron 3D Welding Table is a high-precision modular tooling platform designed specifically for welding, assembly, and inspection processes. It is made of high-strength cast iron, with a precision-machined surface and a standardized array of positioning holes. It can be used with a variety of fixtures, positioning pins, and clamping devices to achieve rapid positioning and fixation of workpieces.

Due to its excellent stability, shock resistance, and durability,this table is widely used in automotive manufacturing, aerospace, machining, mold manufacturing, and other fields. It is particularly suitable for high-precision welding and assembly of complex structural parts.

Products Parameters

3D welding platform

Products Specification

Product Core Technology

Technical Parameters (Typical Values)
Material: HT250/HT300 cast iron or QT400 ductile iron
Tabletop Dimensions: 600×800mm to 2000×4000mm (customizable)
Thickness: 100mm to 300mm (depending on load requirements)
Flatness: ≤0.05mm/m²
Hole Spacing: 28mm×28mm (standard) or 16mm×16mm (high density)
Hole Diameter: Φ16mm / Φ28mm (H7-grade tolerance)
Load Capacity 5~30 tons (depending on size and structure)
Core Structure

Cast Iron Table: Main structure, providing high rigidity and stability
Precision Holes: Standard grid holes (H7-grade accuracy) for fixture installation
T-slots/threaded holes: Auxiliary fixings for enhanced clamping capacity
Support Frame: Reinforced ribs prevent deformation and increase load capacity
Adjustable Feet: Level the worktable to accommodate varying floor conditions

Cast Iron 3D Welding Table, with its high rigidity, high precision, and modular design, has become a core piece of equipment for modern welding and assembly processes. Compared to conventional welding tables, it significantly improves production efficiency, reduces tooling costs, and accommodates flexible manufacturing requirements, making it an ideal choice for high-end manufacturing.
