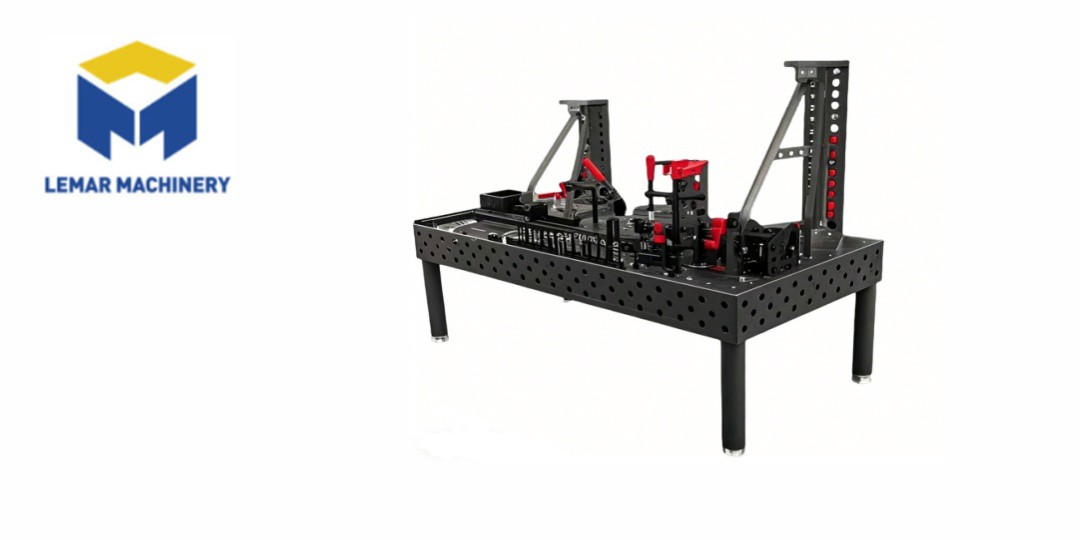

3D Welding Clamping Platform

 Flexible and versatile, one set replaces hundreds: Adaptable to workpieces of any shape and size (from small parts to large parts several meters in diameter), eliminating the need for repeatedly designing dedicated fixtures and saving 90% of tooling costs.

 Rapid changeover, tooling setup completed within 15 minutes: Traditional tooling requires several days/weeks; now, new workpiece clamping can be completed within 15 minutes, improving changeover efficiency by 80%.

 High-precision welding, dimensional stability: Positioning accuracy ±0.05mm, controllable welding deformation, excellent consistency in batch products, meeting the high requirements of automotive, aerospace, and rail transportation industries.

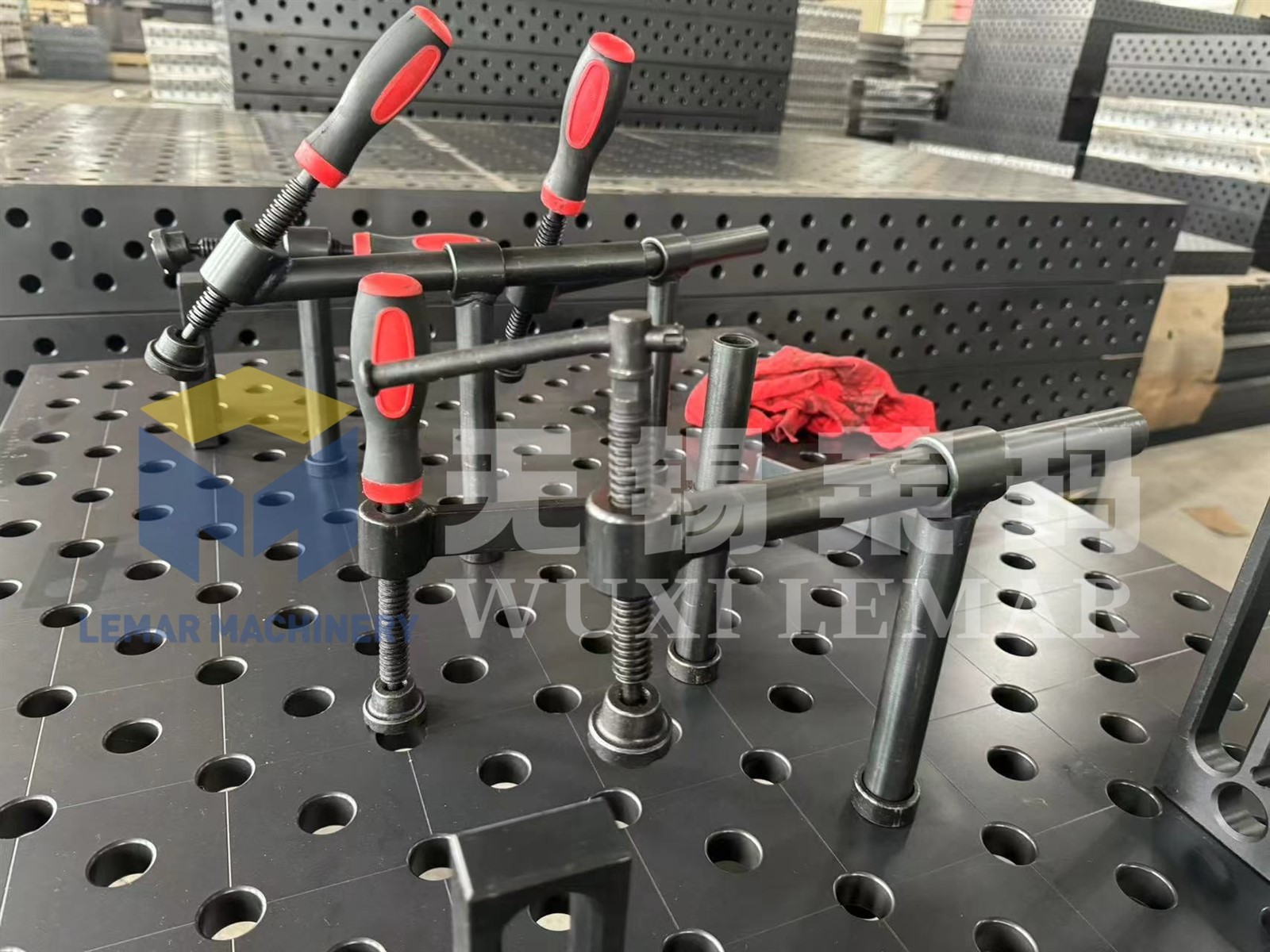

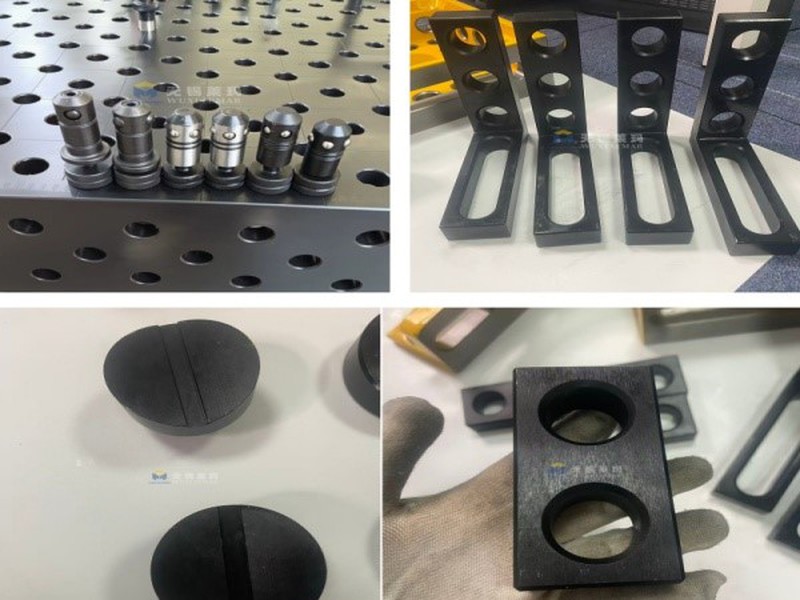

 3D spatial full positioning, no blind spots: Five-face system + 3D attachments allow for positioning and clamping in any X/Y/Z direction. Complex structural parts can be fully welded in one clamping, reducing secondary clamping errors.

 Reusable, long lifespan: Cast iron + nitriding process, wear-resistant, impact-resistant, and slag-resistant, with a normal service life of 10+ years, requiring no consumables.

 Cost reduction and efficiency improvement with high overall returns: Reduce tooling design/manufacturing/storage costs, shorten production cycles, increase capacity, and recoup costs in 2-3 months.

For more detailed information, please contact-Amy

 Basic Info

 Material: Mainstream is HT250/HT300 high-strength gray cast iron (or Q355 Steel), annealed and naturally aged for double stress relief, resulting in minimal deformation; high-end models undergo surface nitriding treatment (hardness HV600+), providing wear resistance and preventing weld slag adhesion.

 Hole System Standards (Globally Compatible):

D28 (System28): Hole diameter φ28mm, hole spacing 100mm (mainstream, heavy-duty/large workpieces).

D16 (System16): Hole diameter φ16mm, hole spacing 50mm (light-duty/precision small parts).

Accuracy: Flatness ≤0.05mm/m, hole spacing tolerance ±0.02mm, repeatability ±0.05mm.

Common Sizes (Expandable):

1000×1000mm, 1200×1500mm, 1500×2000mm, 2000×4000mm, etc.

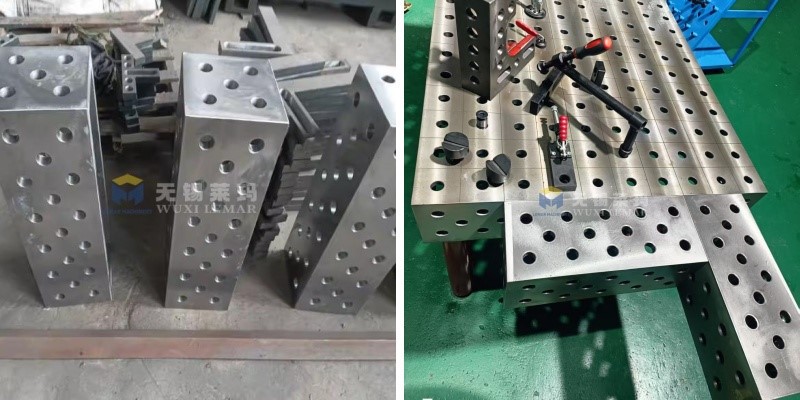

Five sides usable: standard holes evenly distributed on the tabletop and four sides, supporting 3D assembly (X/Y/Z axes).
