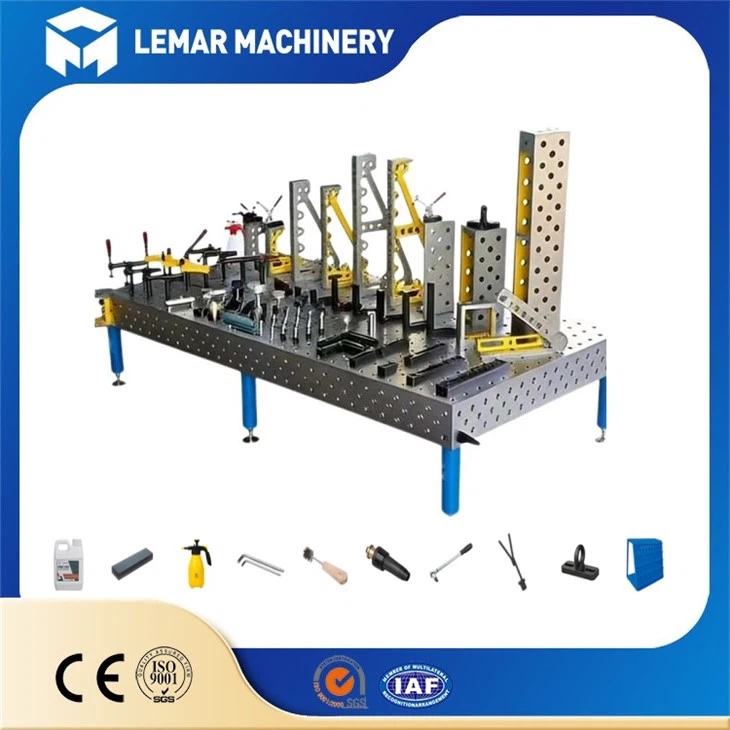

Precision Engineering Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction
Product Key Model
2D welding Table
Structure: Flat table with parallel T-slots
Clamping: Standard fixtures along the slots
Flexibility: Only 2-dimensional positioning
Application: Simple workpieces, flat structures, long profiles
Advantage: Lower cost, easy to operate, suitable for basic welding
Limitation: Poor for complex 3D parts, low positioning accuracy
3D welding Table
Structure: Grid hole system (D28 / D16, 50×50 / 100×100mm)
Clamping: Modular fixtures, locating pins, quick clamps
Flexibility: Full 3D spatial positioning
Application: Complex frames, boxes, chassis, robot welding
Advantage: High precision, strong flexibility, repeat positioning
Limitation: Higher initial investment
D16 series
Diameter: Φ16 mm
Center-to-center distance of holes: 50×50 mm
Table top thickness: 12–20 mm
Platform height: 100 mm / 200 mm
Flatness: 0.1 mm/1000 mm
Verticality: 0.05 mm/200 mm
Surface roughness: Ra 3.2
Standard load capacity: ≤2 tons
Matching bolts: M8
D28 series
Diameter: Φ28 mm
Center-to-center distance of holes: 100×100 mm
Table top thickness: 20–30 mm
Platform height: 200 mm
Flatness: 0.1 mm/1000 mm
Verticality: 0.1 mm/200 mm
Surface roughness: Ra 3.2
Standard load-bearing capacity: 5–10 tons
Matching bolts: M16
If you need other models, please feel free to contact me.
Product video
core advantage
- Ultra-high precision: Positioning error ≤ ±0.05mm, significantly reducing welding deformation and rework rate.
- High flexibility: One platform can be adapted for multiple varieties and small-batch production, with the tooling switching time shortened by 80% or more.
- Super rigidity: Resistant to thermal deformation and impact, with stable accuracy over long-term use.
- Safe and efficient: Standardized clamping, reducing manual adjustments, integrated smoke dust / protection interfaces, enhancing safety.
- Digital compatibility: Can be integrated with CAD/CAM/digital twin systems, supporting virtual simulation and remote monitoring.
safety design
1. Structural Safety
- Round corners / chamfered edges, without sharp corners
- Load-bearing safety factor ≥ 2.5 times
- Anti-slip and anti-toppling design for anchor bolts
- Brake-locking mechanism for casters
2. Operational Safety
- Self-locking and anti-loosening design for fixtures
- Anti-scald markings in welding areas
- Grounding terminals, anti-static / safety grounding
- Optional smoke collection interface and protective baffle
Our Services
Our Service
01
Customized solution design
Mixed tabletops of hole systems + T-shaped grooves, rotating tables, elevating tables, flipping tables, and other special structural designs
Overall solutions for robot welding workstations and multi-platform connected large-scale flexible welding systems
02
Strict control of the production process
Inspection of raw materials upon entry, monitoring of the heat treatment process, and detection during the finishing process
Photographs/videos of key processes can be provided to customers for viewing (upon request)
03
Sample testing and verification
Support customers in providing workpieces for clamping, positioning, and verification of welding effects.
Provide test reports and precision comparison data to enhance customers' confidence in decision-making.
product picture
company development
Founded in 2005 in China's industrial heartland, Wuxi Lemar started with a mission to deliver world-class welding equipment for the domestic market, focusing on welding rotators, positioners and manipulation frames while refining our engineering and manufacturing expertise.
In 2007, we established our International Trade Division, adapting our products to global standards and expanding to over 30 countries, exporting not just equipment but Lemar's quality commitment.
Driven by customer needs, we expanded our portfolio in 2008 with CNC drilling machinery, 3D welding platforms and flexible fixtures, evolving from a component supplier to a total solutions provider.
By 2015, our export products earned CE and GS certifications, enabling access to high-end European and American markets, with exports accounting for 50% of our revenue.
Today, Lemar serves key industries worldwide including automotive, shipbuilding, aerospace, oil & gas, pressure vessels, wind power and robotic welding. Our international team has grown from 3 to 17 specialists, dedicated to solving complex industrial challenges.
Wuxi Lemar has developed into a technology-driven enterprise and your trusted one-stop turnkey solution partner, committed to your success with reliable, efficient and precise welding solutions.
