D28 3D Fixture Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface:Normal
Type:3D
Brand:Lemar
Contact
Cell: +86 159 952 699 47(Whatsapp/Wechat)
Email: evasummer@lemarmetal.com
Products Description
D28 3D Fixture Welding Table is a very well-known and efficient tool in the fields of welding, manufacturing, and bench work. Simply put, it is not an ordinary flat workbench, but a modular three-dimensional welding platform system filled with standard hole systems.It is a modular clamping system based on a 28mm aperture, which, combined with various special fixtures, enables rapid, precise, and repeatable positioning of workpieces in three-dimensional space.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47
Evasummer@lemarmetal.com
Products Parameters
Products Specification
Main components

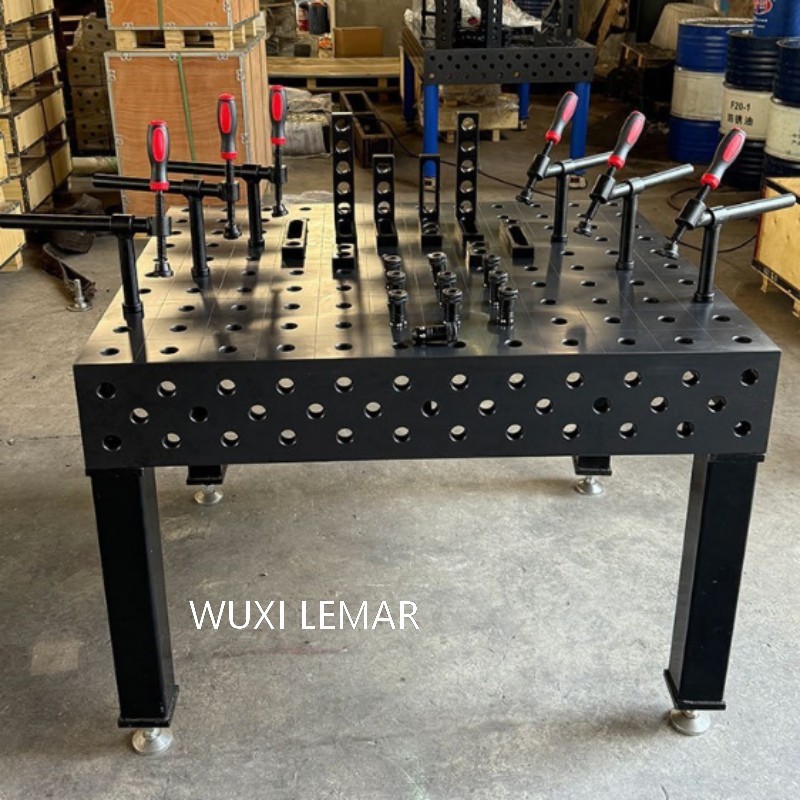

A complete D28 3D Fixture Welding Table typically includes:
Workbench:
Material: Usually made of high-strength cast iron or high-quality steel. Cast iron has excellent shock absorption and stability, and is not easily deformed.
Tabletop: Covered with φ28mm holes arranged at standard intervals such as 50mm or 100mm.

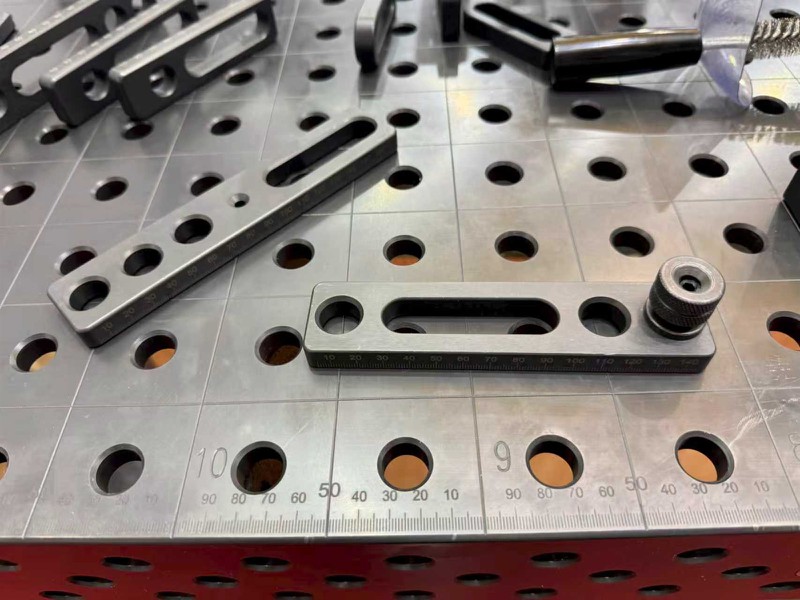

Hole structure: The essence of the D28 system lies in its "waist-shaped hole" or "stepped hole" design. The lower part of the hole is a larger unthreaded hole, and the upper part is a φ28mm threaded hole (or unthreaded hole). This design allows the bolt head of the fixture to be inserted from below, and then rotated 90 degrees to lock on the tabletop, making loading and unloading very quick.
Special fixture kit:
This is the key to exerting 3D functions. The kit usually includes:
Support blocks/bars: Used to support the reference surface of the workpiece.
Positioning blocks/pins: Used to determine the position of the workpiece.
Clamps: Press the workpiece from different directions.
Angle devices: Used to quickly set specific angles (such as 45°, 90°).
V-blocks: Used to clamp cylindrical workpieces.
Various bolts, nuts and handles: Used for connection and locking.
D28 3D Fixture Welding Table is a revolutionary tooling equipment in modern manufacturing. It transforms the traditional mode of "one workpiece, one set of fixtures" into a flexible manufacturing mode of "one platform for all workpieces". It is a powerful tool for improving production efficiency, ensuring product quality, and achieving lean production. If your work involves small-batch, multi-variety metal processing, welding, or assembly, investing in such a system will bring substantial returns.
