D28 Flexible 3D Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface:Normal
Type:3D
Brand:Lemar
Contact
Cell: +86 159 952 699 47(Whatsapp/Wechat)
Email: evasummer@lemarmetal.com
Products Description

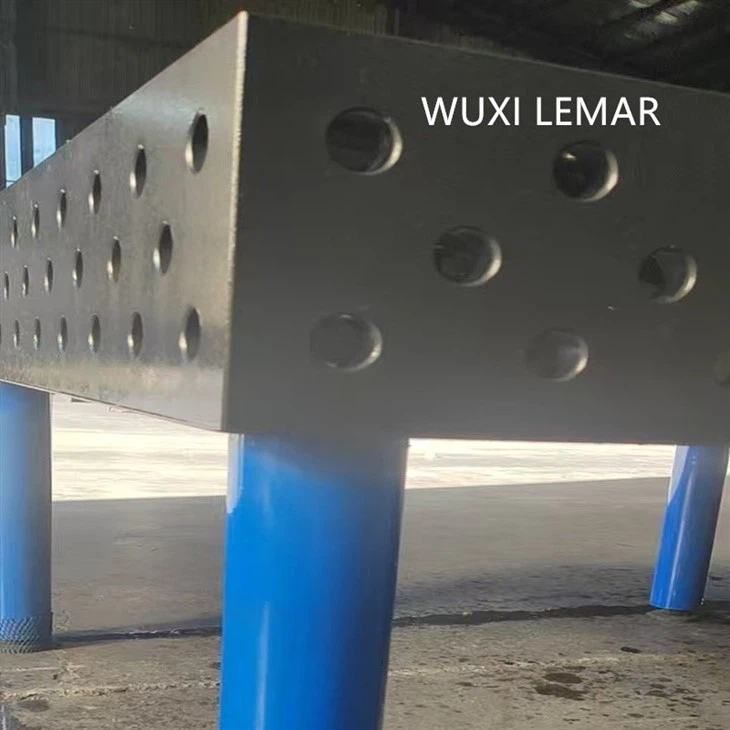

D28 Flexible 3D Welding Table is a modular and combined welding tooling system based on the 28mm aperture system.

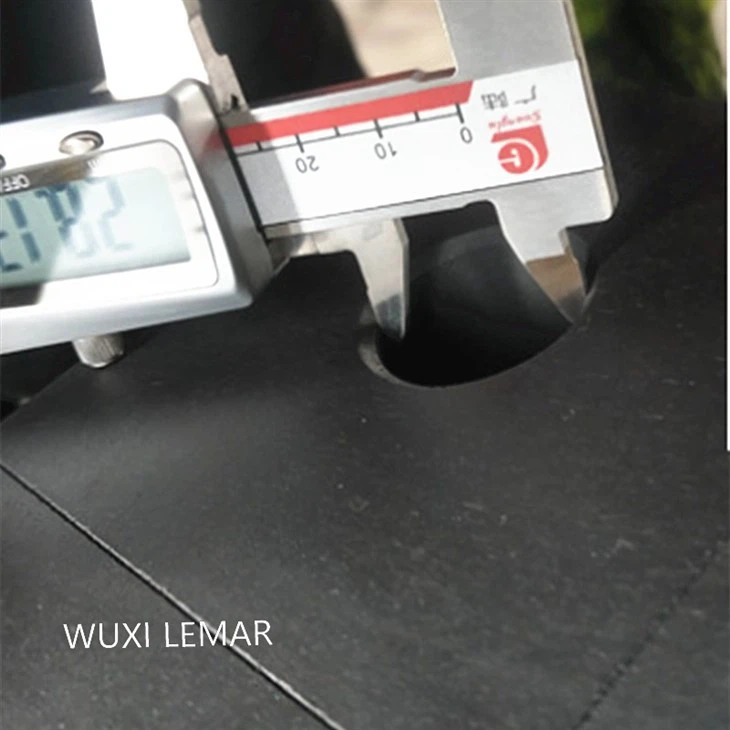

It is a "building block base plate" with 28mm standard holes and five working surfaces. Users can use special "building blocks" (clamps) to quickly "construct" an accurate and stable clamping solution for any metal welded part.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47
Evasummer@lemarmetal.com
Products Parameters
Products Specification
Some details
System Composition
A complete D28 Flexible 3D Welding Table typically includes:
1. Platform main body: A platform with vertical walls, which is the foundation of the system.
2. Positioning elements: Such as locating pins, positioning stops, angle rulers, etc., used to determine the basic position of the workpiece.
3. Clamping elements: Various quick clamps, spiral clamps, etc., used to clamp the workpiece onto the positioning elements.
4. Supporting elements: Support blocks of various heights, support angle irons, etc., used to support and elevate the workpiece.
5. Connecting elements: T-bolts, nuts, washers, etc., used to fasten the fixture to the platform holes.
Typical Application Fields
D28 Flexible 3D Welding Table is widely used in industries with high requirements for welding quality and efficiency:
• Construction machinery: excavators, crane booms, pump truck outriggers, etc.
• Rail transit: locomotive bogies, car body components.
• Automobile manufacturing and modification: chassis, frame, subframe.
• Agricultural machinery: harvesters, tractor chassis.
• Heavy industry steel structures: frames and bases of large equipment.
• Robotic welding cells: serving as standard workbenches for automated welding, perfectly matching with robots.
• Fixture manufacturing: used for manufacturing and inspecting other special fixtures.
In summary, D28 Flexible 3D Welding Table is more than just a tool; it represents an advanced production concept. It transforms welding from a "craft" that relies on personal experience and manual labor into a standardized, process-oriented, and digitalized modern manufacturing technology.
📞 Contact our sales Engineer:Eva summer today for a customized quote.
📧 Email: evasummer@lemarmetal.com
📞 Phone: +86 159 9526 9947
🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
