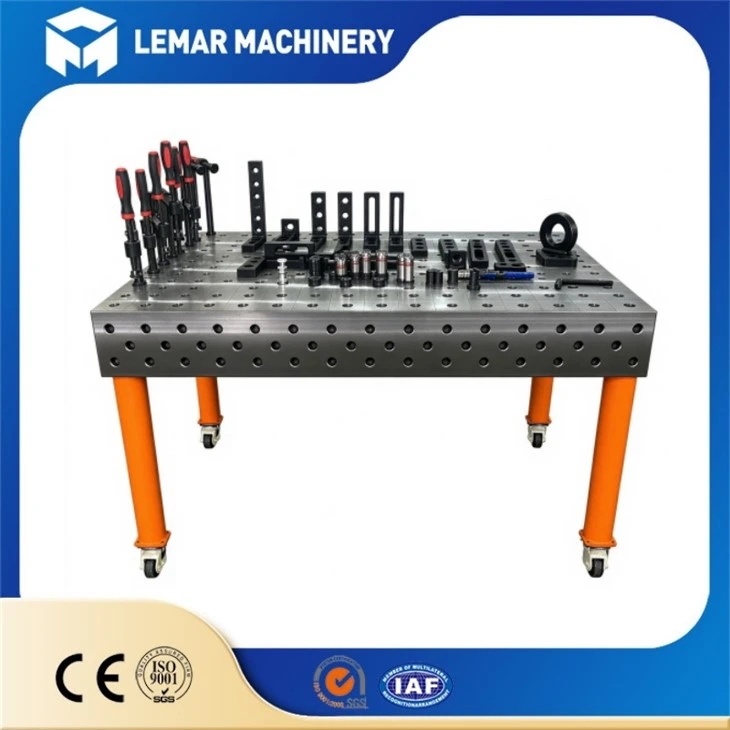

Fixture 3D Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Product Overview

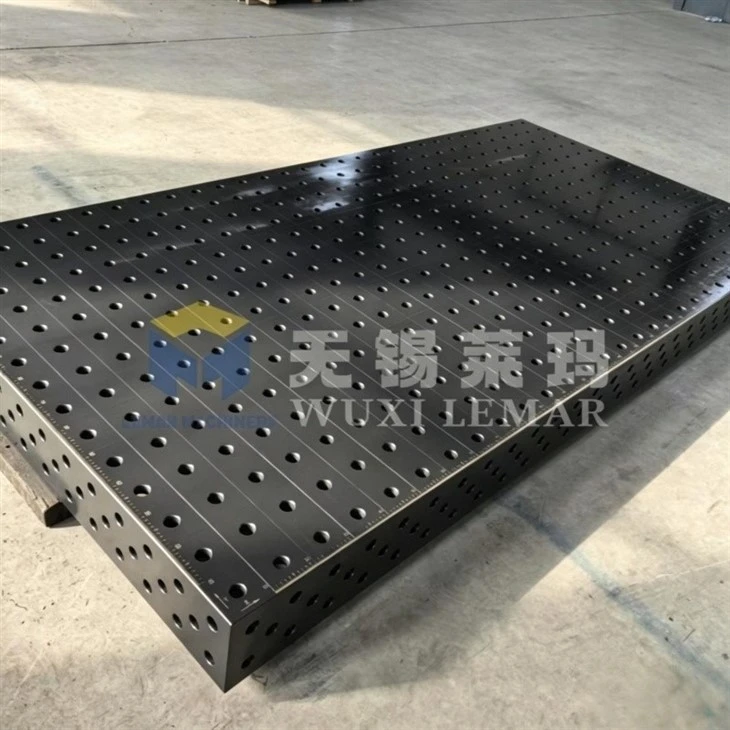

The fixture 3D welding table provides a multi reference plane for flexible workpiece clamping and three dimensional assembly. Built with precision perforated grid system, this workstation allows fabricators to position jigs stops and supports freely across all directions. The rigid all steel frame maintains stable flatness under clamping force and welding heat deformation. It eliminates repeated marking and measuring work, streamlines part alignment and improves accuracy for custom metal assembly. Operators can quickly reconfigure fixture layouts to handle different workpiece shapes without extra machining.
Our address
No.505 Jiefang Road,Liangxi District,Wuxi City,China
Phone Number
+86 159 9526 9947
evasummer@lemarmetal.com
Products Parameters
Core Advantages
Multi directional 3D positioning capability allows fabricators to clamp workpieces from different planes and angles. It removes the limitation of single plane clamping and greatly simplifies the assembly of complex irregular metal structures.
Standard perforated hole grid supports quick installation and flexible relocation of clamps stops and supporting blocks. Operators can rebuild fixture layouts rapidly without drilling new holes on site and cut down much preparation time.
Heavy integrated welded frame maintains excellent flatness under clamping force and welding thermal stress. It avoids unwanted table deformation during long time fabrication and keeps stable assembly accuracy for repeated production tasks.
Nitrided tabletop forms a permanent hardened layer on the steel surface. It effectively repels hot weld spatter and resists scratches and abrasion caused by frequent clamping and grinding operations in heavy workshop environments.
Products Applications
Three dimensional positioning capacity supports multi angle clamping for complex metal assemblies.
Universal perforated grid enables fast fixture rearrangement to fit irregular workpieces.
Nitrided tabletop reduces weld spatter adhesion and prolongs service life in busy workshops.
Precision milled surface keeps consistent flatness to control assembly tolerance tightly.
Heavy welded frame resists deformation under clamping pressure and thermal stress.

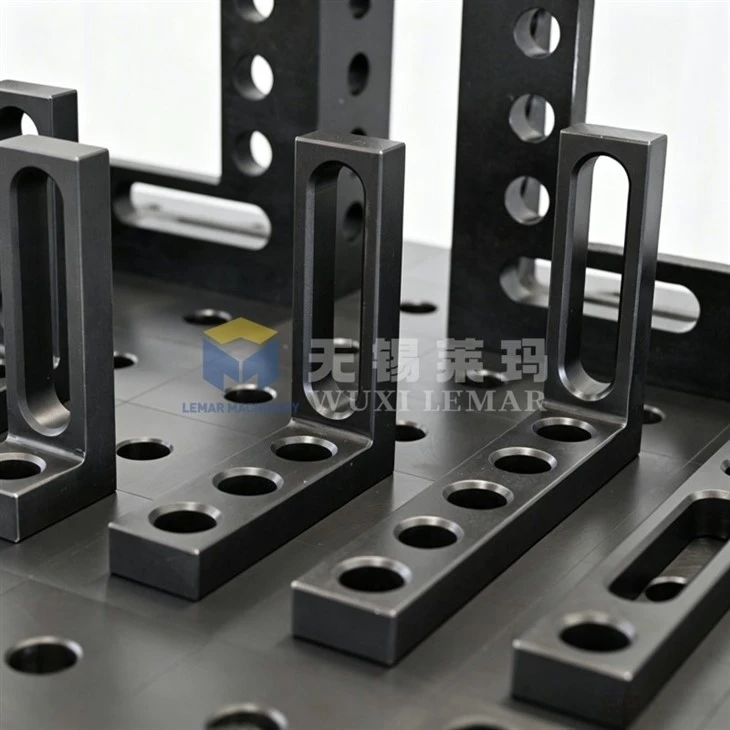

Compatible with a full set of matching fixtures to build complete custom welding stations.
Customer Feedback
Certification & Factory Inspection
Transport packaging
FAQ
Q1:What hole systems can be selected for this fixture 3D welding table?

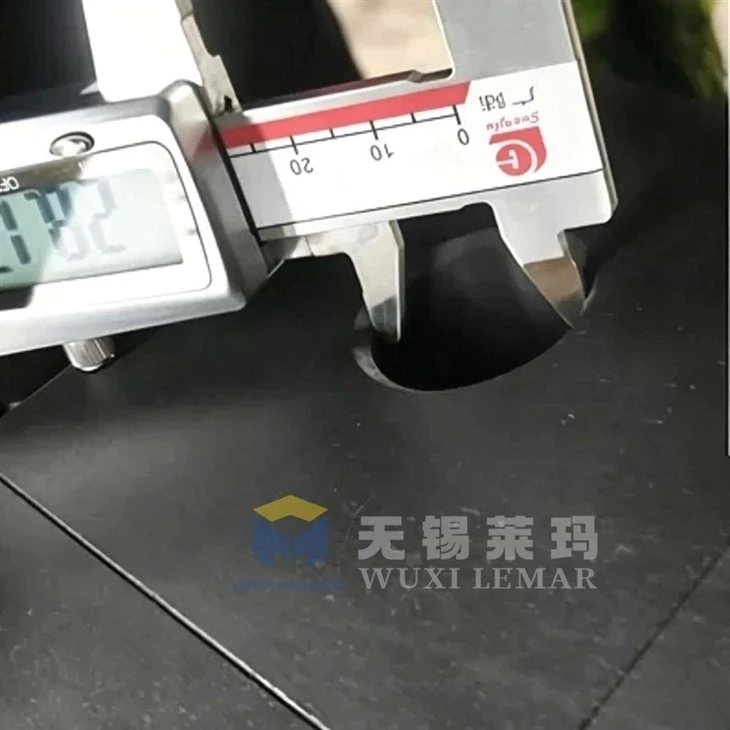

We supply D16 and D28 hole grid options according to your existing fixture accessories.
Q2:Can I purchase the full fixture kit together with the 3D welding table?
Complete fixture packages are offered as optional accessories for one stop procurement.
Q3:Is the nitrided surface treatment durable for long term batch welding work?
Yes, the permanent nitrided layer withstands repeated spatter impact and abrasion.
Q4:Can you adjust table height to match the workshop working height?
Custom table height is available, please send your target working dimension.
Q5:What protection will you use for export packaging of the 3D welding table?
Seaworthy export wooden cases are adopted to prevent damage during long ocean transportation.
Welcome to contact us
√ Wuxi Lemar Machinery Equipments Co., Ltd. is a high-tech enterprise specializing in automated welding equipment and H-beam equipment. Our company has developed a series of professional equipment such as CNC cutting equipment, Beveling equipment, welding equipment, etc.
√ On the basis of continuously absorbing advanced technologies and processes domestic and abroad,our products are widely used in pressure vessels, petrochemicals, power stations, heavy machinery, ships, steel structure buildings and other industries.Most of the products have reached advanced international levels.
√ Lemar Machinery has won the praise of users with the corporate spirit of "motivational and enterprising, honest and trustworthy", and is wi ling to work hand in hand with friends from all walks of life to realize its vision.
Don't hesitate to contact us for any questions about modular welding tables, F-clamps, angle brackets and other fixturing parts. We can match the perfect combination according to your welding workpieces. Free quotation and layout loading plan will be provided upon request. We look forward to establishing long-term cooperation with you.
