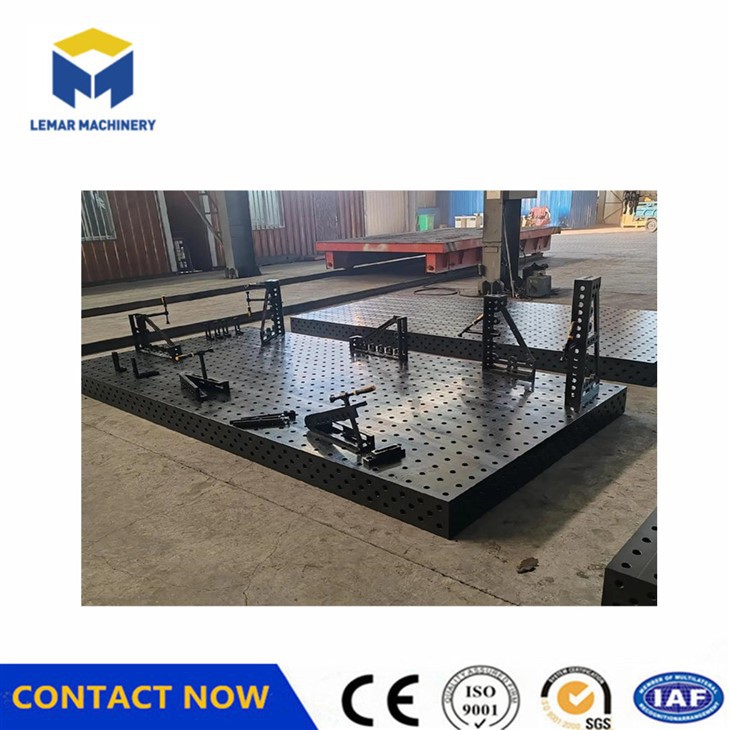

Special Welding Platform
Application:Welding&Assemble
Process:CNC Machining
Surface:Nitrided/Normal
Type:3D
Brand:Lemar
Contact
Cell: +86 159 952 699 47(Whatsapp/Wechat)
Email: evasummer@lemarmetal.com
Products Description
Special Welding Platform is a very important concept in the industrial field, especially in high-end manufacturing. It is not a term referring to a specific brand or a single product, but a general name for a type of welding system or workstation that is specially designed, manufactured, or integrated to meet special or stringent welding requirements.
Simply put, when conventional welding machines, equipment, or workbenches cannot complete the task, a "special welding platform" is needed.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47
Evasummer@lemarmetal.com
Products Parameters
Products Specification
Core Features
Differences from Ordinary Welding Equipment
An ordinary welding platform may just be a general-purpose welding robot plus a standard workbench. However, Special Welding Platform usually has one or more of the following features:
1. Customization: Tailor-made according to the special geometric shape, size or material of the workpiece.
2. High precision: Integrate high-precision motion control systems, sensors and vision systems to ensure the accuracy of welding paths and quality.
3. Automation and integration: It is usually a highly automated system that integrates subsystems such as welding power sources, robots, positioners, tooling fixtures, and safety protection.
4. Adaptability to special environments: Capable of working in special environments that cannot be achieved in ordinary workshops, such as vacuum, underwater, high radiation, extreme temperatures, etc.
5. Specialized processes: Optimized and integrated for specific welding processes (such as laser welding, electron beam welding, friction stir welding, etc.).
ProductsComponents
Key Components
A typical advanced special welding platform usually consists of the following subsystems:
• Actuators: welding robots, gantry-type operating machines, special welding torches, etc.
• Motion control unit: high-precision multi-axis linkage numerical control system, which coordinates the movement of robots and positioners.
• Welding power source and wire feeding system: provide stable and precisely adjustable welding energy and filling materials.
• Workpiece positioning and clamping system: special tooling fixtures and positioners to ensure that the workpiece is in the optimal position during the welding process.
• Sensing and monitoring system: laser vision sensors, arc sensors, temperature sensors, etc., used for real-time tracking of weld seams, adaptive control of process parameters, and quality monitoring.
• Software system: offline programming software, process parameter database, human-machine interface, etc.
• Safety protection system: protective fences, interlocking devices, dust removal systems, gratings, etc.
Special Welding Platform is essentially a solution that deeply integrates welding technology, automation technology, precision machinery, and intelligent control. It is not intended to solve the problem of "whether welding can be done" but rather to address the challenges of "how to weld better, faster, more reliably, and perform welding under extreme conditions."
It is a concrete manifestation of the country's technological strength in the field of high-end equipment manufacturing, directly related to the quality and performance of major projects and key products.
