3D Flexible Welding Table System
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description
The 3D Flexible Welding Table System is a modular industrial welding solution designed for manual welding and robotic automated welding scenarios. The whole system consists of a perforated steel table body and a complete set of matched positioning accessories including quick clamps, locating pins, angle blocks and supporting brackets. The tabletop adopts integral milling forming and plasma nitriding treatment to achieve outstanding wear resistance and thermal deformation resistance. Operators can rearrange accessories freely according to workpiece shapes and welding procedures without manufacturing dedicated fixed jigs repeatedly. With stable repeated positioning precision and strong load bearing capacity, this system fits small batch customized production as well as standardized mass production lines, helping manufacturing plants improve welding consistency and overall production efficiency.
Main hole pattern standard

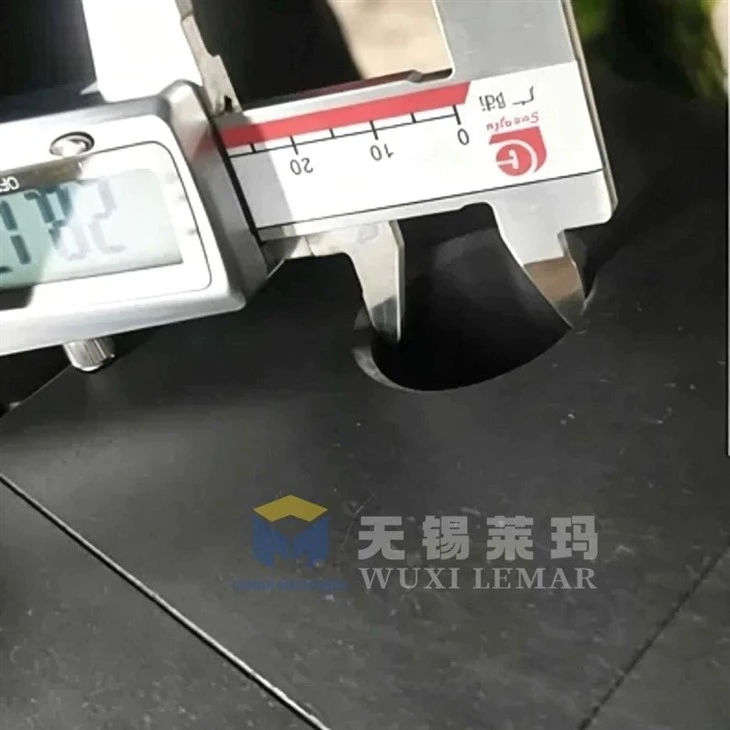

D28 System (φ28mm hole, mainstream in industry)
Hole spacing: 100×100 mm grid
Positioning accuracy: ±0.05 mm
Load-bearing capacity: 5~10 tons per square meter, locking pin locking force 5 tons, shear resistance 25 tons
Applicable to: Heavy steel structures, construction machinery, vehicle frames, robotic welding, and mass industrial production (highest market share).
D16 system (with a diameter of 16mm hole)
Hole spacing: 50 × 50 mm grid
Positioning accuracy: ± 0.03~± 0.05 mm
Material/Load bearing: Lightweight structure, suitable for small parts, precision sheet metal, teaching aids, and lightweight welding
Features: Small size, low cost, compact accessories, not suitable for heavy-duty steel structures.
Product advantages
High configuration flexibility. Modular accessories can be assembled in multiple layouts to adapt to irregular metal workpieces of different sizes and structures and shorten the cycle of fixture making.
Long service life after nitriding treatment. The hardened tabletop effectively resists welding spatter adhesion scratch damage and high temperature deformation under daily welding operation.
Reliable positioning precision. Standard hole distribution and matched accessories keep positioning deviation within the qualified range and cooperate steadily with robotic welding equipment.
Obvious long term cost saving effect. One set of the table system replaces multiple groups of special fixed jigs and reduces repeated fixture procurement cost for diversified production.
Strong operational stability. The integrated table structure prevents workpiece displacement during welding and adjustable foot pads keep the table balanced on uneven factory ground.
Good accessory compatibility. Standard interface design allows accessories to be shared among multiple production stations and lowers extra purchasing cost of spare parts for workshops.
Packaging and Shipping
Quality Certificate
Welcome to contact us
If you need information about size customization accessory matching FOB quotation sample inspection or bulk order cooperation of the 3D Flexible Welding Table System please send emails or leave messages to our sales team directly. Our technical and sales personnel will reply with complete specification sheets and formal quotation documents within 24 working hours. We sincerely expect to build long term stable partnership and support the upgrading of your welding production capacity continuously.
