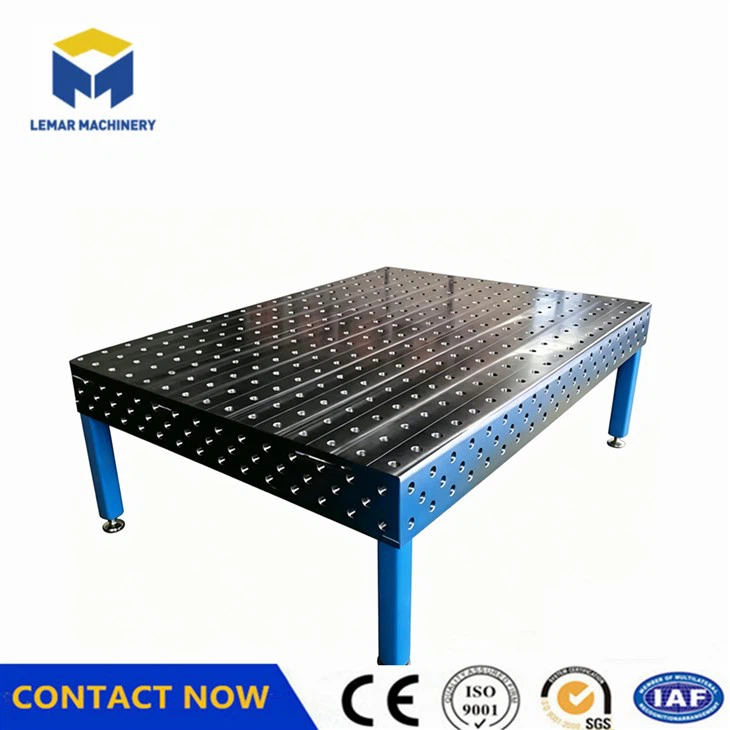

Fixture Table Nitrided Welding Platform

Name: China Fixture Table Nitrided Welding Platform Manufacturers Suppliers Factory - Pricelist
Brand: Lemar
SKU: 300966992

Certification:CE Passed
Material:Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D16
Size:1200*1200mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)

Send Inquiry

Stop fighting warped plates and spatter buildup. Get a certified flat welding platform that stays flat under high heat and heavy loads.

16mm holes welding platform for metal work

[Get Factory Price →Eva summer]

3D Weld Table With Clamps

Product Overview

"You know the frustration. A table that looks flat... until you clamp it. Then you need shims, hammers, and patience."

Stop wasting time compensating for an uneven table. This 1200x1200mm Nitrided Welding Platform is precision-ground to 0.1mm/m² flatness and case-hardened via gas nitriding. It is built for fabricators who demand absolute fixture reliability on every repeat job.

Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA

Phone Number:+86 159 952 699 47(Eva Summer)

Evasummer@lemarmetal.com

Products Parameters

table details

welding table size

Tell our sales engineer:eva summer your prefer series and platform size, we will immediately provide you with an accurate quotation!

Contact Now

Products Advantages

Why choose nitrided over standard steel?

⚡ Zero Spatter Sticking: The nitride layer acts as a non-stick surface. Molten beads pop off with a scraper; no grinding wheel required to clean the table.

🔥 Heat Resistance: Nitriding creates a heat shield. The table surface resists tempering/softening even after repeated high-amp MIG/TIG welding.

🔧 Long-Term Flatness: Stress-relieved before grinding and nitriding. Unlike cheap tables, this won't "potato chip" (warp) after 6 months of heavy clamping.

💰 Low Maintenance: No oiling, no rust spray, no anti-spatter chemical cost. Wash with solvent or brush it clean.

Not sure if this table works for your workpiece?
Send me a photo of your workpiece – I'll help you design a clamping solution for free.

High Purity cast iron Material

Tougher and more resistant to use

In-stock goods

Source manufacturer with guaranteed production capacity

High precision fixtures

Made by CNC machine,16mm/28mm two systems are compatible.

Adjustable legs

4 types legs:standard legs/adjustable legs/caster wheel legs/square legs.

Feel free to contact me for more!

Products Application

Primary Industries:

Heavy Fabrication: Structural steel, pipe flanges, equipment frames.

Automotive & Motorsport: Roll cages, chassis jigs, subframe welding.

Industrial Maintenance: Rebuilding shafts, gearbox housings, pump bases.

Job Shops & Prototyping: Rapid fixture changes. No permanent weld tooling needed.

Suitable Materials to Weld on this Table:

✔ Mild Steel (Most common)

✔ Stainless Steel (304/316 – nitriding prevents galling)

✔ Aluminum (Use clean backing plate to avoid arcing)

✘ (Avoid direct copper/brass welding – standard precaution)

Typical Part Size:

Up to 1200mm x 1200mm (Single table)

Unlimited length (Bolt multiple tables side-by-side for long beams)

Shipping & Packaging

Packaging: Heavy-duty wooden crate + foam padding + anti-rust oil coating

Shipping: Freight (LTL / full truckload) – please contact for quote

Lead time: 15–30 days (depending on quantity and custom specs)

Packaging of welding platform

Packaging of welding fixtures

FAQ

Q1.Is this table flat out of the box, or do I need to level it with feet?

A: The table surface is ground flat to 0.1mm. However, the frame/legs (sold separately) have adjustable leveling feet. You only need to level the table to your floor. The plate itself is already flat.

Q2.Can I use my existing 16mm clamps from Brand X on this table?

A: Yes. 16mm (D16) is an open standard. As long as your clamps use a 16mm locating stud or bolt, they will fit exactly. No proprietary locks.

Q3.Will the nitriding wear off over time?

A:No. Unlike paint or chrome plating, nitriding is a diffusion process (nitrogen gas penetrates the steel). It creates a case layer, not a coating. The hardness goes into the steel. You cannot scratch it off. It can wear through after 10+ years of extreme use, but it will not peel.

Q4.Can I cut or torch on this table?

A:Not recommended. Plasma or oxy-fuel cutting damages the hardened surface and creates local warping. This is a fixture/welding table. Use a cutting table for torch work.

Q5.How do I clean spatter off the nitride surface?

A:A paint scraper or putty knife. Spatter beads pop right off. For rust (unlikely), use a Scotch-Brite pad. Do not use a grinding wheel – it will damage the flat surface (though not the nitride layer itself).

Q6.Do you sell the legs / frame / clamps?

A:Yes. We offer a matching heavy-duty frame kit with adjustable feet, and a separate 16mm clamp starter kit (12 pieces: clamps, stops, and bolts). Ask for the bundle price.

📞 Contact our sales team today

📧 Email: evasummer@lemarmetal.com

📞 Phone: +86 159 9526 9947

🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table

*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
