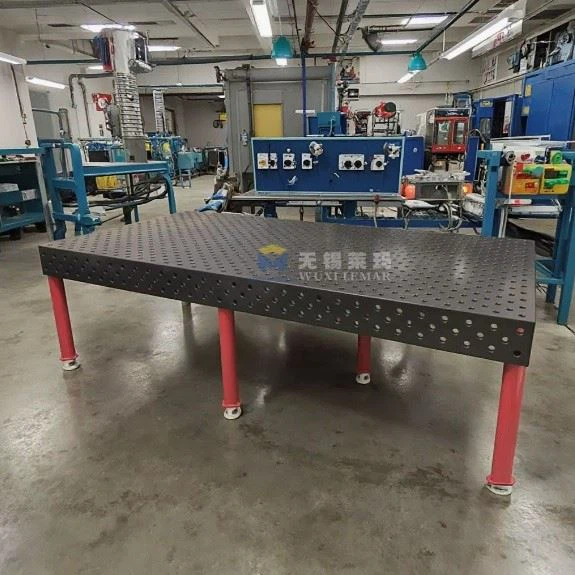

3D Welding Assembly Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description

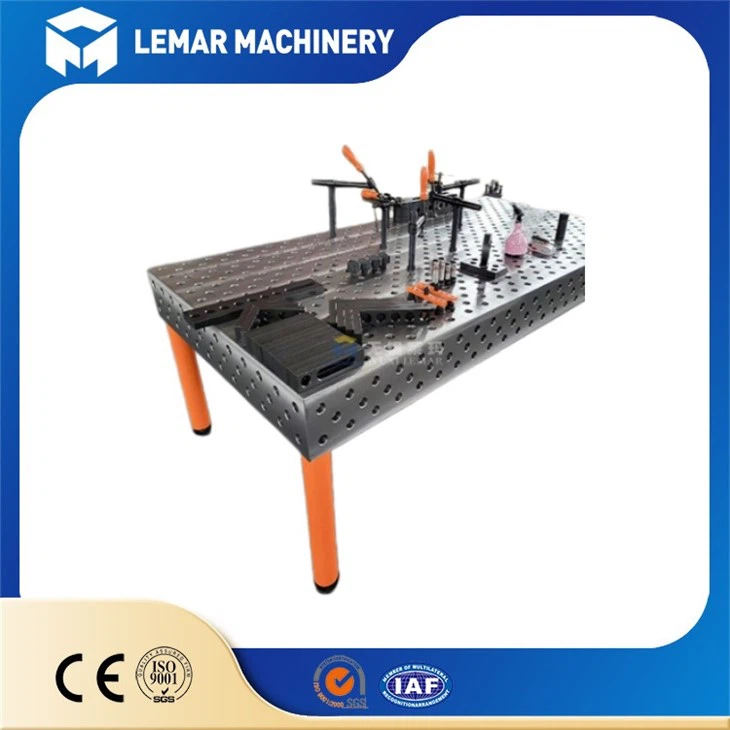

3D Welding Assembly Table:
-
The entire structure adopts a monolithic thickened load-bearing framework, with the countertop, vertical panel, and side wall panels all processed as integrated components. Comprehensive stress elimination treatment is applied to prevent overall deformation caused by prolonged heavy loads and high-temperature welding.
The tabletop and surrounding vertical surfaces are evenly distributed with standard matrix positioning holes, featuring through-hole design that supports multi-angle tooling assembly in horizontal, vertical, and inclined orientations, enabling three-dimensional free positioning along the X, Y, and Z axes. -
Nitriding Hardening Treatment (High-end Standard Configuration)
The tabletop and all tooling contact surfaces undergo integrated ion nitriding treatment, forming a dense hardened layer on the surface with a hardness of HV600 or higher.
It features high temperature resistance, anti-solder slag adhesion, oxidation and rust prevention, wear and scratch resistance, as well as acid and alkali corrosion resistance. Welding spatter is easily removable, and it resists wear, discoloration, and deformation during prolonged use.
Product Specifications
Basic Info
The mainstream is divided into two universal standard apertures, which are interchangeable with global tooling components.
D16 Small Hole Series: Suitable for lightweight welding, small piece processing, sheet metal, and small frame assembly, compact and flexible, with a wide variety of accessories.
D28 Large Hole Series: Suitable for heavy-duty steel structures, construction machinery, large frames, thick material welding, with stronger bearing capacity and higher clamping stability.
The hole spacing adopts internationally recognized standard dimensions, and the hole position is uniformly controlled with tolerances. All positioning pins, fixtures, and connectors can be freely matched, making it highly versatile.
Standard Sizes
Our company provides non-standard customization services. If you are unsure which size of Welding Setup Table to choose, you can contact Amy and send photos of the workpiece for free consultation. We will provide the most suitable solution based on the actual situation of the customer.
Features
Core strengths
No need to customize exclusive molds and tooling, relying on modular accessories for free combination, quickly adapting to different specifications and shapes of workpieces, quickly changing production, and adapting to multiple varieties and small batch customized production modes.
No need for custom-made jigs and tooling molds; relying on modular parts for free combination, it can quickly adapt to workpieces of different specifications and shapes, enabling rapid production changeover and adapting to multi-variety, small-batch customized production modes.
Universal accessories
All accessories in the series are perfectly matched with the worktable holes and can be freely combined and matched.
Includes quick positioning pin, elastic locking pin, manual compactor, angle fixing seat, L-shaped limit block, V-shaped support block, height adjustment pad block, extension connection block, right angle connector, lateral clamping component, etc.
All accessories are made of sturdy and durable materials, easy to disassemble and assemble, with a high reuse rate, and can reduce the factory's tooling procurement costs in the long run.
Customer feedback
Customer-Proven Precision, Built for Your Success
When Peter used our 3D welding table for his first project, he didn't just get a tool - he got peace of mind:"Every measurement is perfect. This table has changed my life."
This is why we design our welding tables: to turn complex, stressful jobs into straightforward, repeatable success stories.Join Peter and thousands of welders who've upgraded their workflow with precision that never lets you down.
Company profile
LEMAR MACHINERY
Starting locally and expanding to serve welding fixture partners in over 30 countries worldwide, this is our growth story:
2005 🏭 Founding Vision: Rooted in China, dedicated to welding equipment R&D;
2007 🌍 Going Global: Initiating a globalization strategy and upgrading products to international standards;
2008 ⚙️ Comprehensive Upgrades: Added 3D welding platforms and other production lines, transitioning into a comprehensive solution provider;
2015 ✅ Quality Certification: Obtained CE/GS certifications and entered the high-end European and American markets;
Today 🌟, we are present worldwide, serving high-end manufacturing sectors such as automobiles, wind power, and shipbuilding, earning the trust of global clients with our expertise.
Certificate of Product Quality
FAQ
Q1: Do I need to buy all the accessories at once?
A: No, you can start with the basic table and add accessories as your needs grow. All components are modular and designed to work together, so you can build your perfect setup over time.
Q2: Is the table easy to move?
A: Standard tables are heavy and designed for fixed workshop use. If you need mobility, we offer optional caster kits or mobile bases that let you move the entire station safely.
Q3: How do I clean and maintain the table?
A: Nitrided surfaces are very low-maintenance. Simply brush off weld spatter with a wire brush or use a scraper. Painted tables require more care to prevent rust if the paint is chipped. We recommend applying a light oil coat if the table will be unused for long periods.
Q4: What if my project is a very unusual size or shape?
A: That's where these tables shine! The modular design lets you add extensions, build multi-level setups, or create custom angles. We can also manufacture custom-sized tabletops to fit your specific projects.
Q5: Do you provide technical drawings or CAD files?
A: Yes. Upon request, we can provide detailed technical drawings, 2D/3D CAD files, and DXF files for the table and common accessories, to help you plan your projects in advance.
If you are interested in our 3D Welding Assembly Table or need a customized solution, feel free to contact us for a quote and detailed catalog.
