Welding Table Diagonal Holes

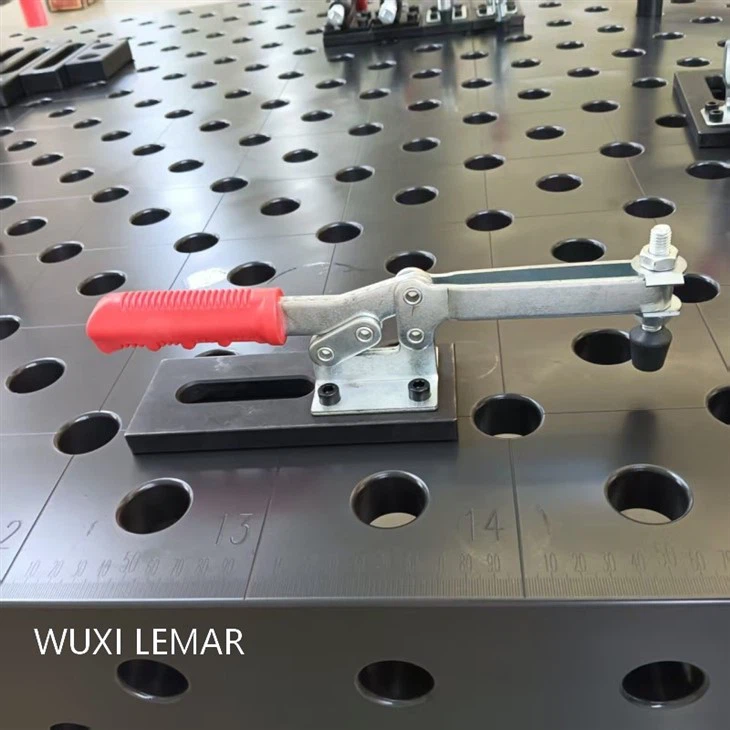

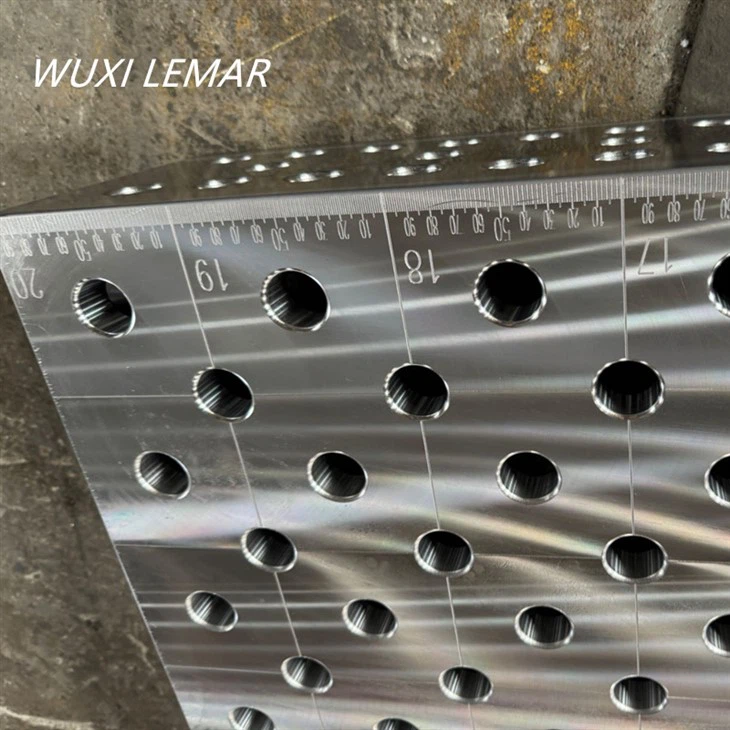

Welding Table Diagonal Holes refer to the hole systems arranged in a 45-degree diagonal direction, which are additionally added on the surface of the welding table besides the standard orthogonal grid holes (i.e., holes arranged along the vertical X-axis and Y-axis directions).
Simply put, it is a layer of "diamond grid" superimposed on the standard "square grid", providing more hole position options for the positioning system of the platform.



 Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA

 Phone Number:+86 159 952 699 47

 Evasummer@lemarmetal.com

Products Specification

Advantages

1. Unparalleled positioning flexibility: This is the core advantage. Welding Table Diagonal Holes system allows locators and fixtures to be installed along a 45-degree angle direction, enabling more direct and precise positioning and clamping of workpieces with inclined or complex angles without the need for additional angle conversion modules that may introduce errors.
2. Higher positioning accuracy and rigidity: When it is necessary to support or clamp a workpiece from a 45-degree direction, using a standard orthogonal hole system often requires a transition piece, which introduces additional fitting gaps and potential elastic deformation. However, direct positioning using diagonal holes reduces intermediate links and establishes a shorter and more direct force flow path, thereby providing better rigidity and accuracy.
3. Simplified setup of complex tooling: For complex workpieces with multiple inclined elements, engineers have greater freedom in designing clamping schemes. They can easily find the most suitable hole positions to install accessories, making tooling setup simpler and more efficient.
4. Improved space utilization: The denser distribution of hole positions means that at any position on the table, there can almost always be a "perfect" hole for installing accessories, avoiding interference issues between accessories due to hole position limitations.

Main application fields

Welding Tables Diagonal Holes are not necessary for all welding tasks, but they demonstrate great value in the following high-end and application scenarios:
• Workpieces with complex geometric shapes: Such as brackets and frames in the aerospace field, subframes in the automotive industry, etc. These workpieces often contain a large number of non-90-degree structures.
• Manufacturing of high-precision molds and inspection tools: During the manufacturing process, there is an inherent need for precise replication and measurement of oblique datums.
• Robotic welding and automation: In automated cells, workpieces usually need to be clamped at specific angles to optimize the accessibility of the robot welding torch and avoid collisions. Diagonal hole systems make positioning at such angles effortless.
• Optimization in mass production: In mass production, even a small improvement in efficiency can lead to significant benefits. Diagonal hole systems can shorten cycle times through more optimized clamping schemes.

Welding Table Diagonal Holes is an advanced feature in the design of 3D flexible welding platforms. It represents the development of flexible tooling technology to a higher level.
• It is a powerful supplement to the standard orthogonal hole system, addressing the inherent limitations of orthogonal hole systems when dealing with inclined surfaces and non-right-angle workpieces.
• It is designed for high-end manufacturing environments that pursue extreme precision, efficiency, and flexibility. Although it increases the manufacturing cost and price of the platform, for users handling complex workpieces, the clamping advantages and improved production efficiency it brings make this investment worthwhile.
• Choosing a platform with diagonal holes means you have selected one of the most advanced and comprehensive solutions in the current field of flexible welding tooling, fully preparing for various manufacturing challenges that may be encountered in the future.
