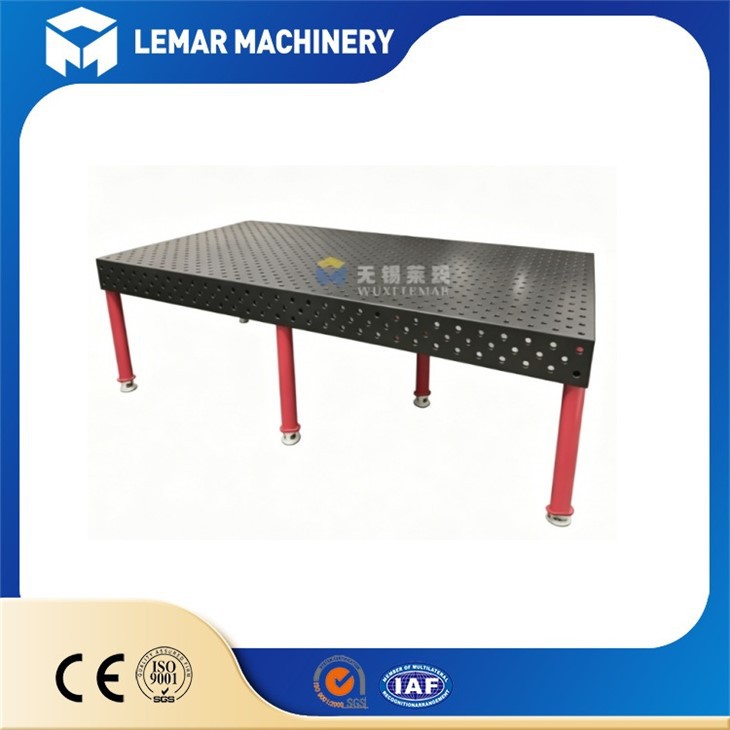

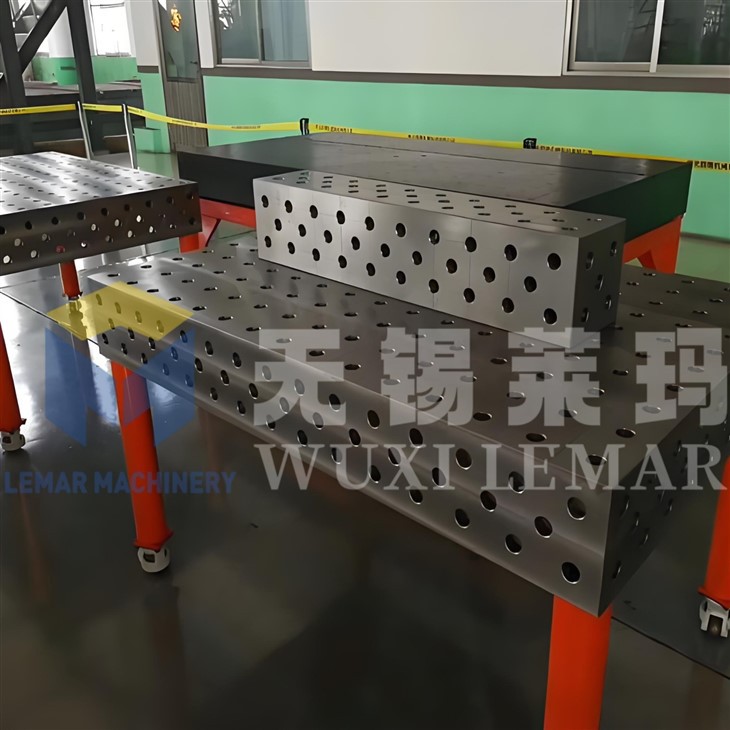

Modular Steel Fabrication Tables
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description
Modular Steel Fabrication Tables

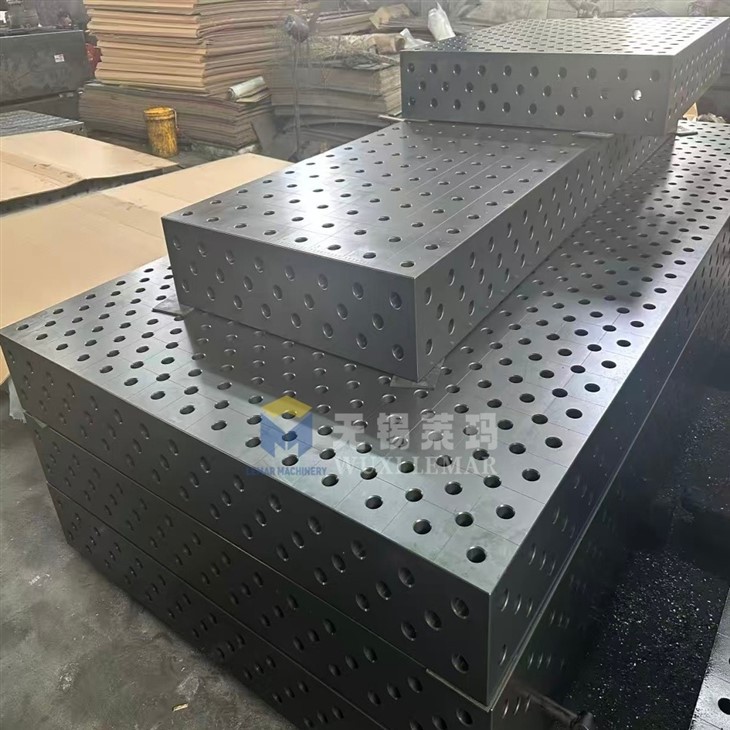

1. Countertop (core)
- Material: Q355 alloy steel/cast iron/stainless steel, thickness 100~150mm, internal reinforcement ribs, strong load-bearing and anti-deformation.

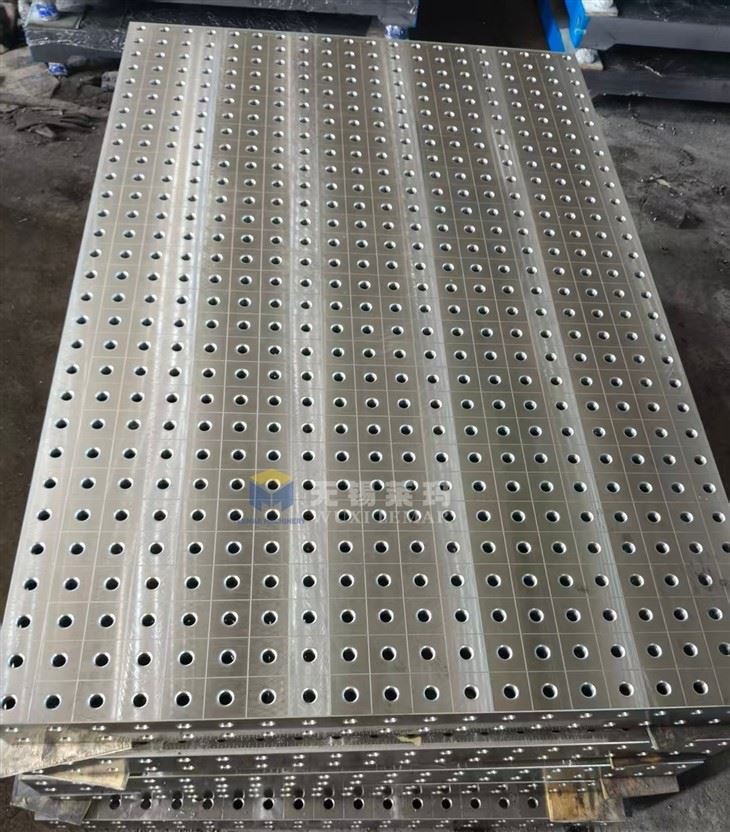

- Hole system: D28 (φ28mm, hole spacing 50/100mm, heavy load); D16 (φ16mm, hole spacing 25/50mm, small precision parts).
- Accuracy: Hole position accuracy ±0.05mm, flatness ≤±0.1mm/㎡, nitriding/quenching treatment, wear-resistant, and anti-welding slag adhesion.
2.Support base/bracket
- Heavy-duty square tube welded structure, equipped with leveling adjustment feet (±20mm), which can be locked after leveling to ensure the level and stability of the table.
3. Modular fixture system (soul)
- Basic parts: locking pins, positioning pins, clamps, right-angle blocks, V-blocks, extension arms, etc., fully compatible with D28/D16 hole systems.
- Function: three-dimensional arbitrary positioning, fast clamping, precise angle (90°/45°/30°), high repeatability positioning accuracy.
4. Connectors and extensions
- The table tops are spliced with high-strength bolts + positioning pins to ensure seamless connection and consistent accuracy.
- Optional: side baffles, tool hanging boards, drawers, mobile casters, dust covers, etc.
Product Specifications
Basic Info
The mainstream is divided into two universal standard apertures, which are interchangeable with global tooling components.
- D16 Small Hole Series: Suitable for lightweight welding, small piece processing, sheet metal, and small frame assembly, compact and flexible, with a wide variety of accessories.
- D28 Large Hole Series: Suitable for heavy-duty steel structures, construction machinery, large frames, thick material welding, with stronger bearing capacity and higher clamping stability.
Standard Sizes
Not sure which size fits best?
Send us your workpiece photos, and we'll get back to you with a perfect solution.
Modular flexible positioning
Working principle
High-precision plane + hole system grid provides three-dimensional orthogonal datum (X/Y/Z axis).
Use positioning pins to determine the position, right-angle blocks to determine the angle, and clamps to lock the workpiece, and the complex tooling can be built within 10 minutes.
Core advantages
- Flexible and efficient: model change within 1 hour, no need to customize fixtures, optimal for small batches and multiple varieties.
- High precision and consistency: ±0.05mm positioning accuracy, strong consistency in mass production, and reduced rework.
- Heavy load stability: cast iron/steel structure, uniform load 3-5 tons, point load 1-1.5 tons, heavy workpieces will not deform.
- Durable and low-maintenance: the nitrided surface is resistant to welding slag, wear-resistant and rust-resistant, with a service life of 10 years +, and no need for frequent calibration.
- Expandable and mobile: Multiple units can be spliced to expand the area; flexible in disassembly/movement, adaptable to workshop layout adjustments.
- Cost reduction and efficiency improvement: 90% reduction in custom fixtures, 70% reduction in tooling time, and high long-term cost performance.
Customer feedback
Customer-Proven Precision, Built for Your Success
When Peter used our 3D welding table for his first project, he didn't just get a tool - he got peace of mind:"Every measurement is perfect. This table has changed my life."
This is why we design our welding tables: to turn complex, stressful jobs into straightforward, repeatable success stories.Join Peter and thousands of welders who've upgraded their workflow with precision that never lets you down.
Company profile
LEMAR MACHINERY
Starting locally and expanding to serve welding fixture partners in over 30 countries worldwide, this is our growth story:
2005 🏭 Founding Vision: Rooted in China, dedicated to welding equipment R&D;
2007 🌍 Going Global: Initiating a globalization strategy and upgrading products to international standards;
2008 ⚙️ Comprehensive Upgrades: Added 3D welding platforms and other production lines, transitioning into a comprehensive solution provider;
2015 ✅ Quality Certification: Obtained CE/GS certifications and entered the high-end European and American markets;
Today 🌟, we are present worldwide, serving high-end manufacturing sectors such as automobiles, wind power, and shipbuilding, earning the trust of global clients with our expertise.
Certificate of Product Quality
FAQ
Q: Can I customize the table size and load capacity?
A: Yes. Custom length, width, height and thickened tabletop are available. Standard and heavy-load versions are optional to meet light, medium and heavy industrial processing demands.
Q: What is your surface treatment?
A: Standard is black anti-rust painting; optional overall nitriding treatment for anti-wear, anti-corrosion, high temperature resistance and anti-spatter, greatly extending service life.
Q: Do you have quality certification?
A: Our modular steel fabrication tables comply with CE standard, with strict production inspection, dimensional tolerance control and raw material testing. Stable quality for global industrial market.
Q: Can you ship to my country?
A: We support global shipping, including Europe, North America, South America, Southeast Asia, Middle East and Oceania. We can offer CIF, FOB, DDP and other shipping terms.
Q: What about your after-sales service?
A: Provide long-term technical support and accessory supply. Damaged parts caused by non-human factors can be provided with replacement parts at cost.
Q: Can I get a sample or catalog?
A: Product catalog and parameter list can be sent for free. For large equipment, we provide detailed pictures, videos and factory inspection support.
If you are interested in our Modular Steel Fabrication Tables or need a customized solution, feel free to contact us for a quote and detailed catalog.
