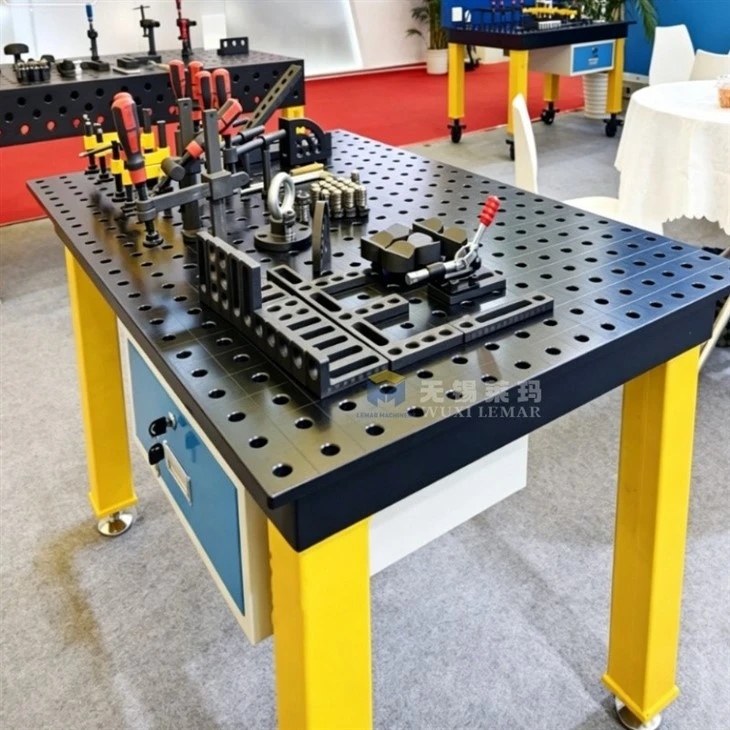

Welding Table With Jigs And Fixtures
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
WUXI LEMAR
Product Overview
Looking for a reliable modular welding system to improve your welding consistency and reduce rework?
Our welding table with jigs and fixtures is designed for modern metal fabrication workshops. The stress‑relieved perforated tabletop features high flatness and tight hole tolerance, paired with a full set of jigs & fixtures to lock workpieces in exact positions. No more repeated marking and measuring. It minimizes thermal distortion during welding and ensures identical dimensions for every batch of parts.
Compatible with both manual operators and robotic welding cells. You can reconfigure the jigs and fixtures for diverse projects without custom‑built dedicated molds. Perfect for multi‑variety, small‑batch manufacturing.
Countertop material
| Material | Key Characteristics | Application Scenarios |
|---|---|---|
| Q355 / Q345 Carbon Steel (Nitrided) | High strength, impact‑resistant and crack‑resistant. Nitrided hardness HV550‑900, anti‑welding‑spatter. Flatness ≤0.1mm/1000mm. Lighter than cast iron. Compatible with D16 & D28 hole systems. Mainstream export material. | Medium‑small workpieces, robotic welding stations, frequent lifting & bumping, humid workshop environments. |
| HT300 Gray Cast Iron | Good rigidity and vibration damping, long‑term precision retention. Brittle, prone to cracking under heavy impact. Heavy weight, requires regular rust‑proof maintenance. | Heavy‑duty engineering machinery, frame welding, long‑term heavy‑load mass production. Not suitable for frequent movement. |
| 38CrMoAl Mold Steel | Max nitrided hardness HV870, outstanding wear resistance. High cost. Seldom used for full tabletop, mostly for high‑end jig & fixture parts. | Ultra‑precision robotic welding, high‑wear working conditions. |
Key process points: Artificial aging + natural stress relief treatment to prevent tabletop deformation after long-term use; CNC milling of the tabletop with hole tolerance of ±0.05mm; tabletop thickness is mainly 25-30mm; side holes enable 3D tooling assembly.
Advantage Comparison
✅ Advantages
1. Flexible and Reconfigurable: One welding table with jigs and fixtures can produce dozens of different products without the need for numerous dedicated fixed molds; the optimal solution for small-batch, multi-variety production.
2. Repeatable Accuracy: After tooling assembly, each batch of workpieces operates on the same datum, reducing errors from manual scribing and measurement.
3. Suppresses Welding Deformation: Multi-point clamping constraints counteract warping due to thermal expansion and contraction; support blocks can be used to counteract workpiece sagging.
4. Multi-functional: In addition to welding, it can also perform assembly, dimensional verification, and component inspection.
5. Compatible with Robotic Welding: High-precision datum allows for docking with welding robot workstations.
Shipping & Packaging
Key points for selection decision
1. Workpiece Size: Choose a larger table size rather than a smaller one, allowing for a margin to avoid insufficient capacity later;
2. Workpiece Weight: Select a D28 welding table for heavy loads; select a D16 welding table for thin plates and small parts;
3. Production Mode: Multi-variety, small-batch production → prioritize this modular system with jigs and fixtures; Single-product, large-batch production → consider dedicated fixed tooling;
4. Robot Integration Required: If a robot is required, prioritize 0-level precision ≤0.05mm/1000mm;
5. Workshop Environment: Humid, frequently impacted → select a steel nitriding welding table; Heavy-duty, stable working conditions → cast iron welding table.
Real‑World Customer Feedback
This real‑world workshop photo comes from one of our US customers using our Heavy‑Duty Steel Welding Table. Fully equipped with a complete range of modular fixtures and put through daily heavy‑duty welding‑shop operations, this table demonstrates excellent rigidity and reliable hole‑system compatibility. Highly satisfied with its real‑life performance, the customer plans to repurchase another welding table alongside additional tooling accessories. Repeat‑buy intent from end‑users stands as authentic proof of our table's durability and stable quality for metal‑fabrication work.
Contact us
Looking for a customized Welding Table with Jigs and Fixtures for your workshop?
Feel free to send us your workpiece size, required hole system and production demands. Our professional team will provide you with a tailored solution and competitive quotation.
📞 Contact our sales team now
📧 Email: amywang@lemarmetal.com
📞 Phone: +86 180 0619 3916
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
