Gib Head Taper Key

No.:LM-1266
Model NO.:DIN 6887
Head Type:Gib Head
Product Name:Gib Head Machine Key/Taper Key

Send Inquiry

Products Description

About Product

Gib Head Taper Key is a detachable connection between the shaft and the drive member on the shaft, mainly used to transfer torque and motion. ‌ The upper surface and the bottom surface of the hub keyway have a slope of 1:100, through the wedge action to produce pretension force, rely on friction to transfer torque, and can withstand one-way axial force ‌.

Products Description

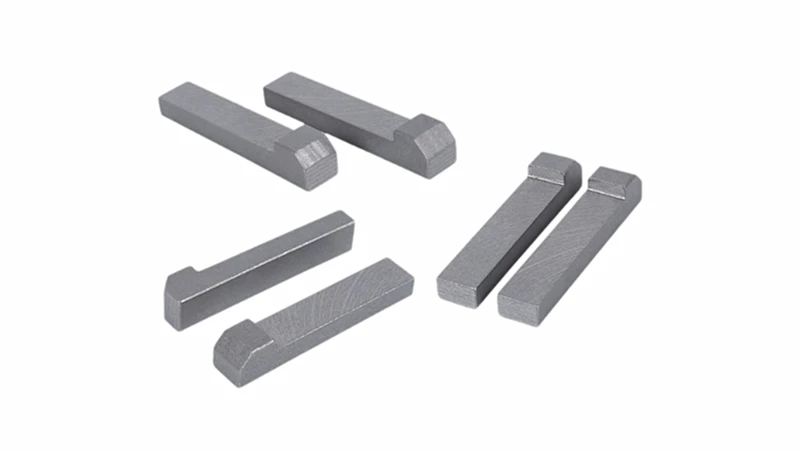

Gib Head Taper Key

Products Feature

Structure:

Upper surface of Gib Head Taper Key and the bottom surface of the hub keyway have a slope of 1:100, this design makes the key can produce a large preload after assembly, so that the torque is transmitted by friction ‌.

Products Application

First:

Working principle of Gib Head Taper Key is based on its wedge structure. When key is driven into the keyway of the shaft and hub, the slope of upper surface of key and bottom surface of the hub keyway makes key tightly wedged and produces a pre-tightening force.

Second:

When working, the key relies on friction to transmit torque and can withstand unidirectional axial loads.GB/T 1565-2003 standard specifies the type and size of the key, suitable for the width of 4mm to 100mm of the key ‌.

Third:

‌The characteristic of this key is that its hook design makes it suitable where the key cannot be punched out from the other end ‌.The key is often used in the need of tight key connection, is not suitable for high precision requirements of the connection.
