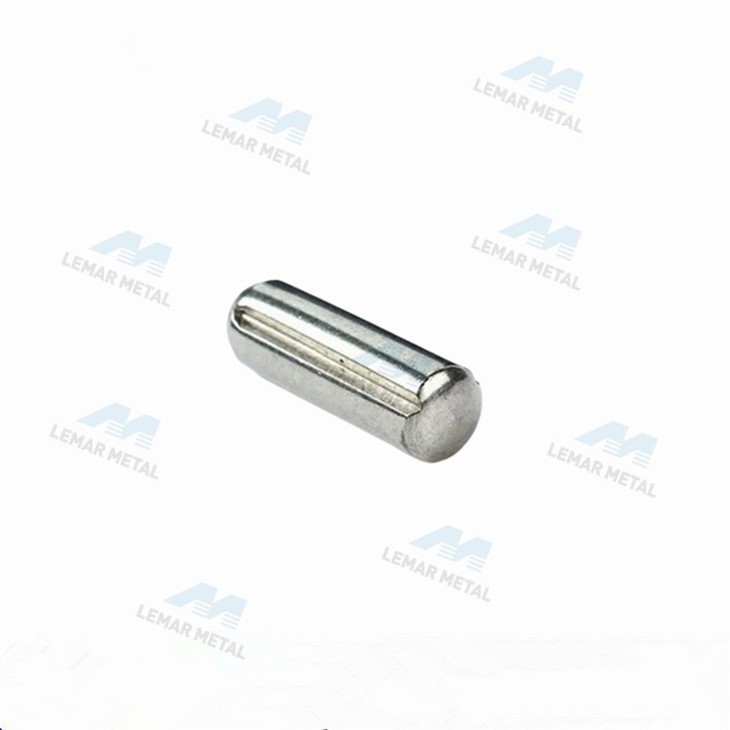

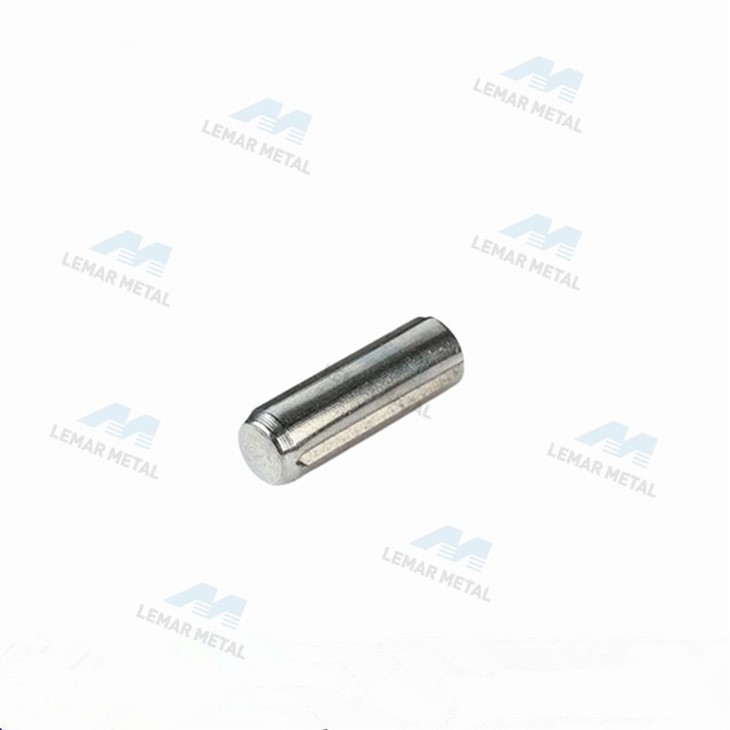

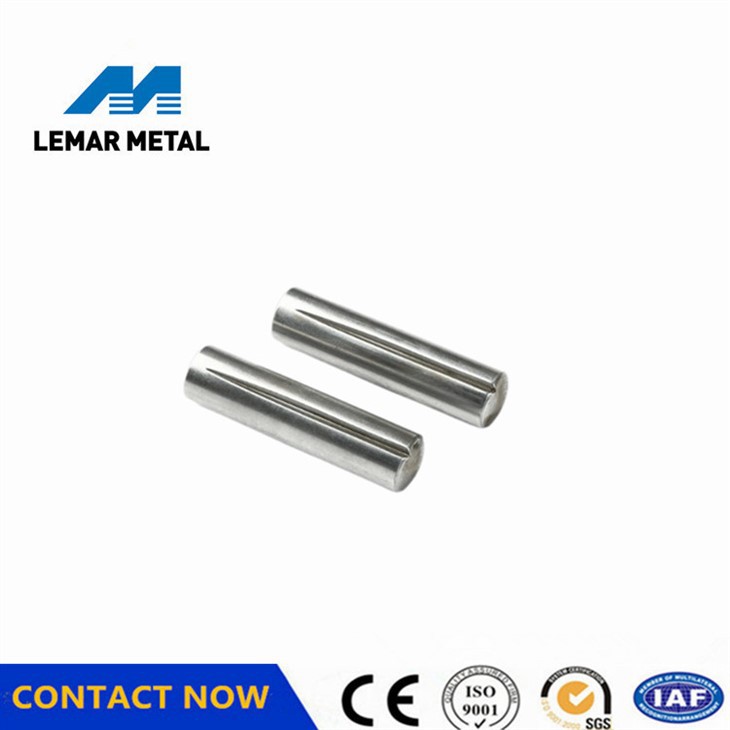

Grooved Taper Pin
Name:Grooved Pins
Length:4mm to 120mm
Material:Stainless Steel/Steel
Products Description
About Product
Grooved Taper Pin is a kind of dowel widely used in machinery and electric power industries , its surface is usually rolled out of three longitudinal grooves, these grooves are generally parallel or conical, the purpose is to insert the grooved pin into the pin hole can be pressed with the hole wall, so as to play a fixed part, not easy to loose the effect .

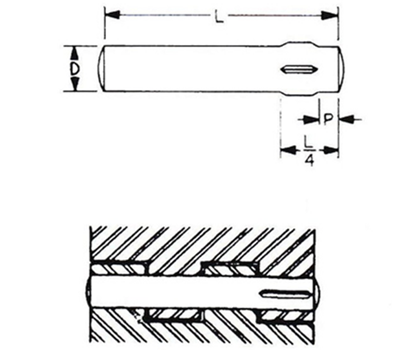

Products classification
Type-a
Type A Pin has three full-length tapered grooves.This
popular type is used in applications requiring excellent
locking effect and ease of assembly. It is widely used in
place of taper pins, rivets, set screws and keys. Typical
applications include keying sprockets, gears, collars, knobs,
handles, levers and wheels to shafts.
Type-u
Type U has three parallel grooves extending the full length
of the pin. A short pilot at each end permits hopper or
automatic feeding. Identical ends speed manual insertion as
operator need not examine pin to determine proper end to
start. Full-length parallel grooves provide maximum locking
effect. Typical applications include keying gears, collars,
knobs, handles, etc., to shafts.

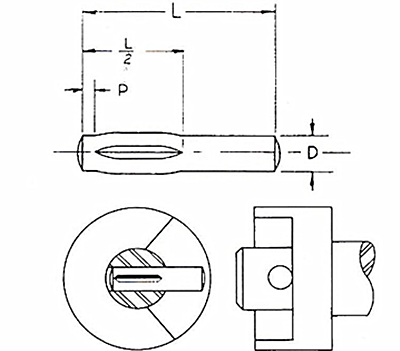

Type-H
Type H grooved pin has three parallel grooves for half the
length of the pin. This type of pin may be used as a pivot,
stop or hinge pin. When pressed in place, the grooved
portion locks in one part while the ungrooved section
remains free to serve as the locator,hinge, etc.
TYPE-G
Type G has three parallel half-length grooves including pilot.
lt is a very versatile pin, suitable for use in both blind and
through holes as a spring anchor pin. The annular groove
opposite the locking end is used to anchor the end loop of
a tension spring. If snap or retainer rings are to be used,
special section annular grooves can be machined to order.
TYPE-E
Type E has three parallel half-length grooves located
equidistant from each end. Widely used as Thandle on
valves and tools. Also used as a cross pin, cotter pin,
pivot pin, etc., where center locking is required.
Products feature
differences between
dowel pins and grooved pins
First,application differences:
Dowel pin is fixed on the high-precision machine tool assembly with the connection element, and Grooved Taper Pin is fixed on the working part of connection element used with positioning pin. Grooved pin is composed of the shape of positioning hole and slot, and corresponding use of positioning pin can make the workpiece achieve the role of accurate positioning.
Second, structural differences:
Dowel pin is generally composed of the head, handle body, tail, etc., and the diameter of the head and tail is generally larger than the handle body, so that there will be no error even in the high-precision position. The main components of the grooved pin are the slot and the working face, and the groove shape has a great relationship with the connection demand.
Third,Differences in application scenarios:
Dowel pins are often used for positioning in high-precision machining, which can ensure the accuracy and stability of the working part. Grooved Taper Pin are often used in the accurate positioning of molds, fixtures and other tooling to ensure the matching degree of molds and workpieces and the accurate positioning of tooling.
