Double Fold Self-locking Washer
Standard:DIN25201 gasket
Material:Stainless steel/Mn steel
Brand:Lemar
Products Description
About our Product

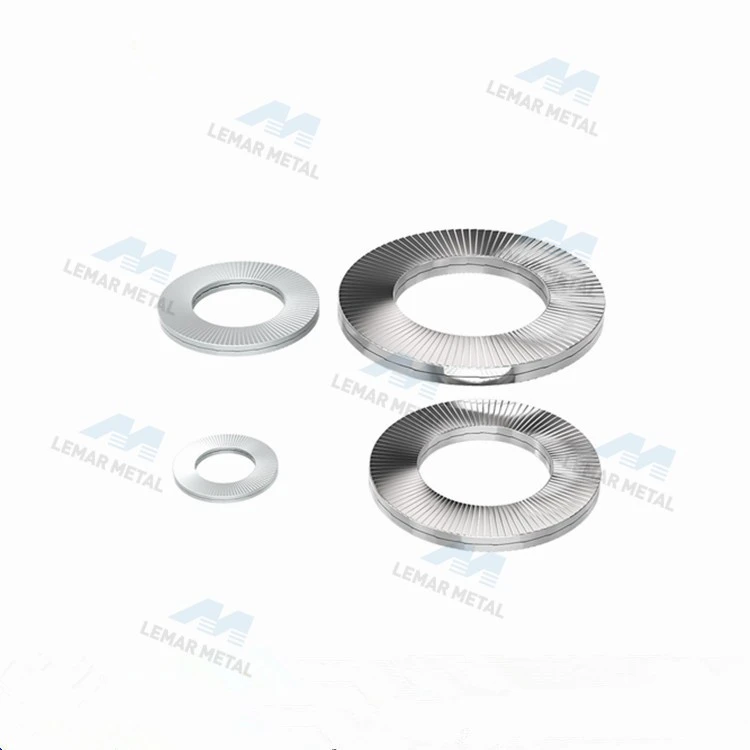

Double fold self-locking washer is also named DIN25201 Dual-stacked self-locking washer,Safety Washers,Safety Lock Washer,Double-sided Lock Washer,etc.It is a double-sided toothed gasket that automatically lifts and moves to produce a self-locking function to prevent loosening.
It has high tensile strength and good corrosion resistance. Double fold self-locking washer adopts double-layer design, which can effectively prevent threaded connection from loosening and improve the stability and reliability of equipment. At the same time, its self-locking function makes installation easier and reduces maintenance costs. In addition, the washer has a wide range of sizes and is suitable for a variety of different application scenarios.
Products Installation
Installation method
1. Prepare tools and work surface: Make sure there is a clean and flat metal surface to install the Double fold self-locking washer. The inner beveled tooth surfaces are opposite, and the outer radial convex surface is in bite state with the contact surfaces at both ends.
2. Place washers: Place the inner beveled tooth surfaces of the two washers opposite each other and place them between the nut and the connecting material. In this way, when the nut is tightened, the outer radial convex surface of the anti-loosening washer is in bite state with the contact surfaces at both ends2.
3. Tighten the nut: When the nut is tightened, the design of the Double fold self-locking washer makes the friction between the inner beveled tooth surfaces greater than the friction between the outer radial convex surface and the contact surfaces at both ends. Therefore, when the connection is vibrated and the bolts loosen, only the relative displacement between the inner beveled tooth surfaces is allowed, thereby generating lifting tension to achieve the effect of preventing loosening.
Products Parameter
|
Type |
Applicable bolts |
D |
d |
t |
|
|
model |
No. |
||||
|
FSDP |
3 |
M3 |
7 |
3.4 |
1.8 |
|
4 |
M4 |
7.6 |
4.4 |
1.8 |
|
|
5 |
M5 |
9 |
5.4 |
1.8 |
|
|
6 |
M6 |
10.8 |
6.5 |
1.8 |
|
|
8 |
M8 |
13.5 |
8.7 |
2.5 |
|
|
10 |
M10 |
16.6 |
10.7 |
2.5 |
|
|
12 |
M12 |
19.5 |
13 |
2.5 |
|
|
16 |
M16 |
25.4 |
17 |
3.4 |
|
|
20 |
M20 |
30.7 |
21.4 |
3.4 |
|
