Double Stack Self-locking Washers
Specification：M3-M42
Material：65Mn
Model:LM-1111
Products Description
our Product
washer

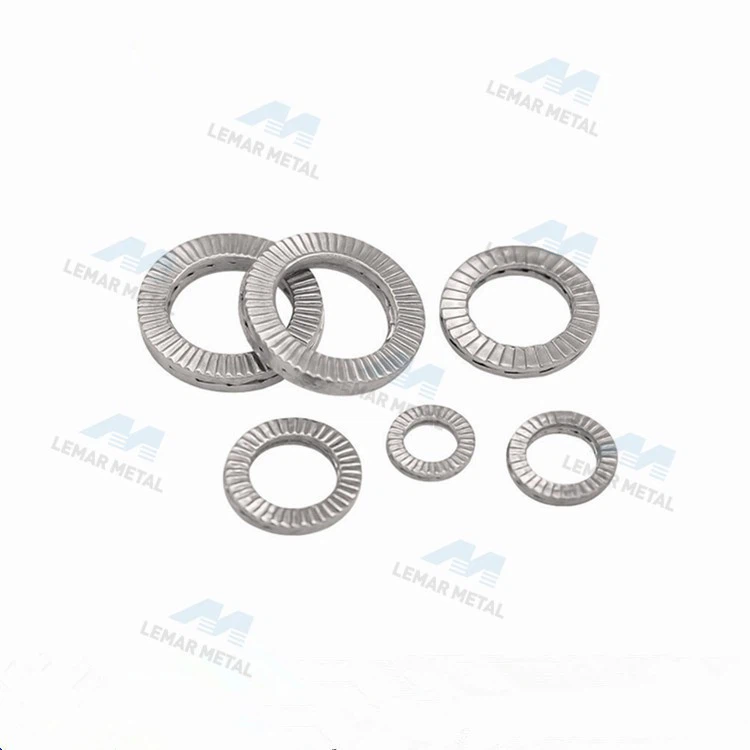

Double stack self-locking washers are one mechanical fastener that is mainly used to prevent fasteners from loosening due to external forces such as vibration, impact, and thermal expansion. It consists of two pieces, each with a radial convex surface on the outside and a beveled surface on the inside. This type of sealing washer uses the tension between the two washers to achieve the dual effects of preventing loosening and tightening.
Products Parameter
|
Washer Size |
Fit Thread Specifications |
D |
Dc |
(Thickness)H |
|
|
Metric System |
UNC |
||||
|
Unit：Mm |
|||||
|
M3.4*7*2.2 |
M3 |
#5 |
3.4 |
7 |
2.2 |
|
M3.9*7.6*2.2 |
M3.5 |
#6 |
3.9 |
7.6 |
2.2 |
|
M3.9*9*2.2 |
M3.5 |
#6 |
3.9 |
9 |
2.2 |
|
M4.4*7.6*2.2 |
M4 |
#8 |
4.4 |
7.6 |
2.2 |
|
M4.4*9*2.2 |
M4 |
#8 |
4.4 |
9 |
2.2 |
|
M5.4*9*2.2 |
M5 |
#10 |
5.4 |
9 |
2.2 |
|
M5.4*10.8*2.2 |
M5 |
#10 |
5.4 |
10.8 |
2.2 |
|
M6.5*10.8*2.2 |
M6 |
6.5 |
10.8 |
2.2 |
|
|
M6.5*13.5*2 |
M6 |
6.5 |
13.5 |
2 |
|
|
M7.2*11.5*2.2 |
1/4 |
7.2 |
11.5 |
2.2 |
|
|
M7.2*13.5*2.2 |
1/4 |
7.2 |
13.5 |
2.2 |
|
|
M8.7*13.5*2 |
M8 |
5/16 |
8.7 |
13.5 |
2 |
|
M8.7*16.6*2 |
M8 |
5/16 |
8.7 |
16.6 |
2 |
|
M10.3*16.6*2 |
3/8 |
10.3 |
16.6 |
2 |
|
|
M10.3*21*2 |
3/8 |
10.3 |
21 |
2 |
|
|
M10.7*16.6*2 |
M10 |
10.7 |
16.6 |
2 |
|
|
M10.7*21*2 |
M10 |
10.7 |
21 |
2 |
|
|
M11.4*18.5*2.2 |
M11 |
7/16 |
11.4 |
18.5 |
2.2 |
|
M13*19.5*2 |
M12 |
13 |
19.5 |
2 |
|
|
M13*25.4*3 |
M13 |
13 |
25.4 |
3 |
|
Product details and features
Installation and use precautions
When installing the anti-loosening washers, just face the inner beveled surfaces of the two washers and place them between the nut and the connecting material. After the nut is tightened, the radial convex surface on the outer side of the anti-loosening washer is in a bite state with the contact surfaces at both ends. During the installation process, there is no need to use a torque wrench, and pneumatic tools can be used. In addition, anti-loosening washers are disposable, and used washers should not be used again. Every time a fastener is replaced, a new anti-loosening washer should be replaced at the same time.
Working principle
The working principle of this anti-loosening washer is that during assembly, the inner beveled tooth surfaces are relative to each other, and the outer radial convex surface is in a bite state with the contact surfaces at both ends. When the connecting part is vibrated and the bolt tends to loosen, only the inner beveled tooth surfaces of the two washers are allowed to move relative to each other, generating lifting tension, thereby achieving a 100% locking effect.
Advantages
1) Ability to ensure that the clamping force of the connection is maintained under strong vibration: Compared with fasteners that rely on friction to lock themselves, anti-loosening washers provide higher safety performance.
2) Easy to install and disassemble: Regardless of the preload, DIN25201 anti-loosening washers have a good locking effect.
Advantages
3) Has the same temperature characteristics as standard bolts/nuts: This means that anti-loosening washers can work normally in various temperature environments.
4) Reusable: Unlike disposable products, anti-loosening washers can be used multiple times, reducing costs.
5) Strong adaptability: Suitable for complex environments such as large/long holes, coated surfaces or soft materials (such as aluminum).
