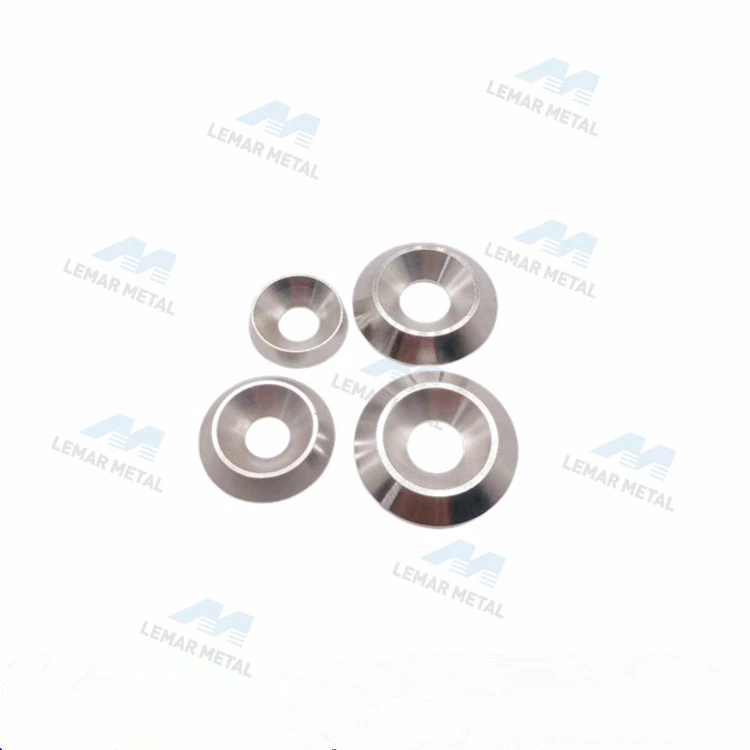

Countersunk Screw Gasket Washer
Strenght level: A3
Product grade: A
Surface treatment:Wash and brighten
Products Description
Countersunk Screw Gasket Washer is also named tapered washers which are a common type of mechanical washer with a tapered shape, usually used where extra elasticity is required to prevent loosening and vibration between joints or assembled parts.
The structure of this conical washers is mainly composed of upper and lower cone springs, inner bowl surface, outer bowl surface, spring coil and upper and lower end caps. They are mainly made of high-quality spring steel and are refined through multiple processes including heat treatment. They have the characteristics of high strength, pressure resistance, and corrosion resistance.
Products Parameter
argument
|
unit：mm |
||||
|
Specification |
D |
S |
h |
dk |
|
6#(M3*11*2.5) |
3.84-4.16 |
10.88-11.37 |
2.38 |
8 |
|
8#(M4*13*2.5) |
4.65-7.97 |
13.24-13.74 |
2.45 |
9.69 |
|
10#(M5*15*3) |
5.44-5.76 |
14.81-15.1 |
2.89 |
11.5 |
|
12#(M6*17*3.5) |
6.23-6.73 |
17.2-17.7 |
3.48 |
12 |
Application
Countersunk Screw Gasket Washer is widely used in various fields, including machinery, aviation, automobiles, military industry, etc. In the automotive field, it can reduce shock and noise, also prevent nuts from loosening. In industrial machinery, it also has many applications, such as large machine tools, punching machines, lifting equipment, etc.304 Stainless Steel Bowl Type Conical Washer has the characteristics of easy installation, high elasticity, and large bearing capacity, and can better adapt to the mechanical operation status of different requirements.
Products Description
Countersunk Screw Gasket Washer and flat washer are both commonly used gaskets, both of which have good sealing and buffering properties. However, there are some differences in actual applications.
|
No. |
Countersunk Screw Gasket Washer |
Flat washer |
|
Shape |
With a conical shape. It has a bevel angle, usually 5, 10 or 15 degrees, which is used to compensate for misalignment or eccentricity between two parts. |
Flat washers are a type of seal with a circular shape. It has no bevel angle and achieves sealing by filling the gap between two parts. |
|
Sealing effect |
Due to the existence of its bevel angle, 304 Stainless steel Countersunk Screw Gasket Washer can compensate for the angular deviation between the two parts connected, so that good sealing effects can be obtained under harsh working conditions such as high pressure, high temperature and high speed. |
Flat washers have easier installation, they can be used in different application scenarios, such as pumps, valves, pipes, connectors, etc. Flat gaskets have good sealing performance and versatility, and are widely used in some low-pressure, low-speed or small devices. |
|
Installation method |
Special installation tools such as gasket clamps or pressing tools are required to install stainless steel Countersunk washers . This is because the angled design of the conical gasket requires pressure or rotation to achieve sealing. |
Flat gaskets need to be installed at the position between the two parts, and usually need to be used with other fasteners. |
|
Usage |
Countersunk Screw Gasket Washer are generally used for high-pressure, high-temperature or high-speed sealing. |
Flat washers are widely used in low-pressure, low-speed or non-sealing applications. |
