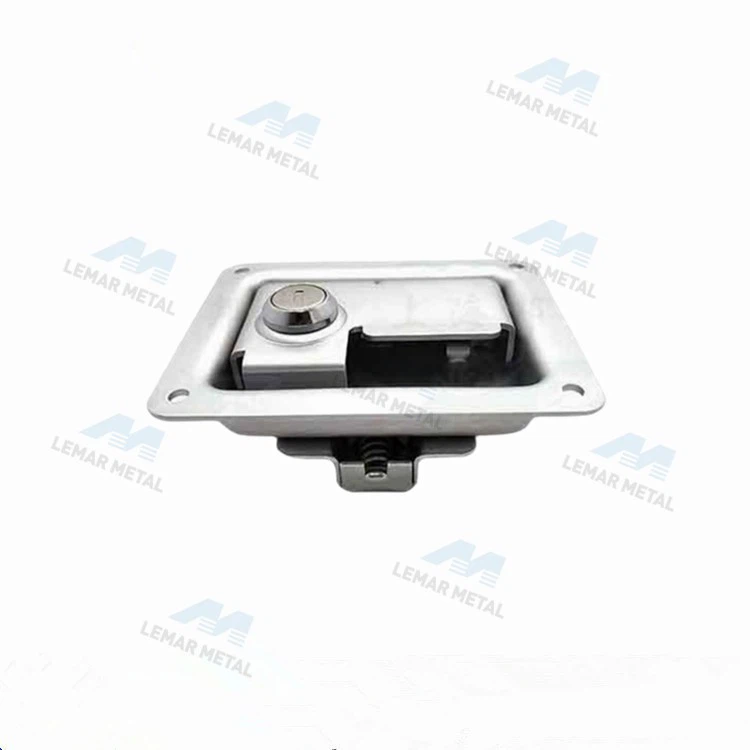

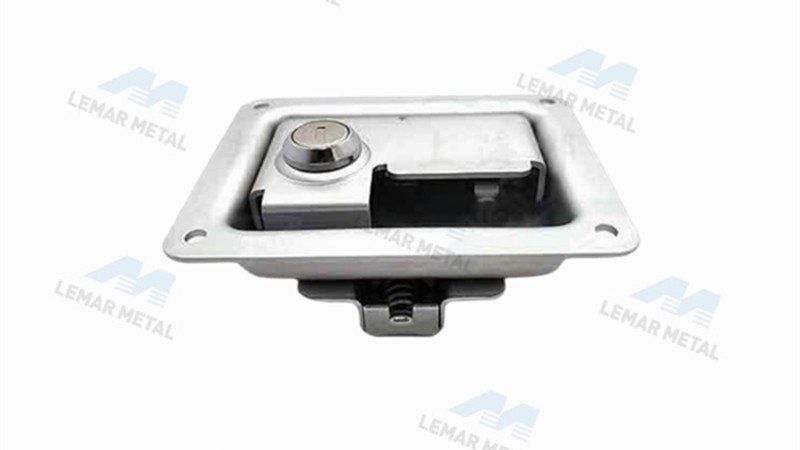

Paddle Handle Latch
Type:Stainless Steel Flat Plate Lock
Specifications: MS866-7-4S, MS866-7-4
Material: Stainless steel mirror
Products Description
Paddle Handle Latch is a common lock, mainly used for doors, cabinets and other objects.
It is usually composed of a lock body, a shaft, an operating part, a lock tongue and a drive assembly. In the design of the panel lock, in order to improve the convenience of use, a retaining component is also added. When the operating part is squeezed, the component can switch the locking end from the unlocked position to the locked position.

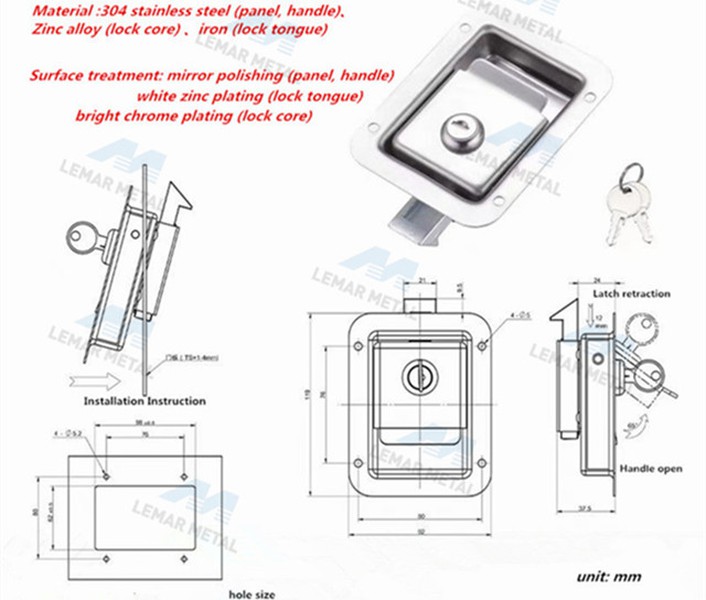

Products Parameters
There are many types of panel locks available in the market, such as stainless steel mechanical door locks, zinc alloy panel locks, etc. These locks are suitable for different occasions, such as distribution cabinets, chassis cabinets, electrical cabinets, etc.
Products Usage Viedo
Products Composition
Lock body
The lock body is the core part of the panel lock, around which all other components are installed and operated. The lock body is usually made of strong materials to ensure its durability and safety. In some smart panel locks, the lock body may contain electronic components, such as sensors and control circuits, to achieve intelligent functions.
Shaft
The shaft is a component that is rotatably arranged on the lock body, which is connected to the operating member and can drive the shaft to move. The design of the shaft allows it to rotate smoothly in the lock body, thereby realizing the opening and closing of the lock.
Operating member
The operating member is connected to the shaft and can drive the shaft to move. Its main function is to trigger the extension and retraction of the lock tongue by rotating the shaft, thereby realizing the locking and unlocking operations. The operating member is usually operated manually, but in smart panel locks, the movement of the operating member may be controlled by a motor or other drive device.
Lock tongue
The lock tongue is a component that is movably arranged in the lock body, which can extend into the operating member to lock the operating member. The design of the lock tongue allows it to freely retract and retract in the lock body, thereby achieving locking and unlocking of the operating member. In some smart panel locks, the movement of the lock tongue may be controlled by a solenoid valve or other driving device.
Driving component
The driving component is a component connected to the lock body, and its locking end has a locking position extending into the lock tongue and an unlocking position exiting the lock tongue. The main function of the driving component is to control the lock tongue by controlling the extension and retraction of the locking end, thereby achieving the locking and unlocking operations.
Holding component
The holding component is a component connected to the locking end. When the locking end switches from the locked position to the unlocked position, the locking end avoids the lock tongue to unlock the operating member, and the holding component keeps the locking end in the unlocked position. A part of the holding component extends out of the surface of the lock body.
