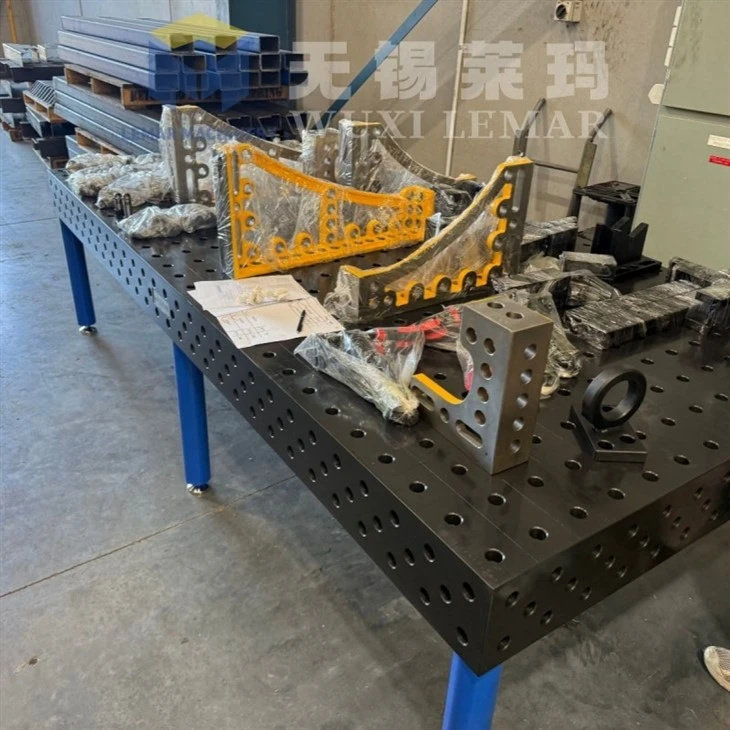

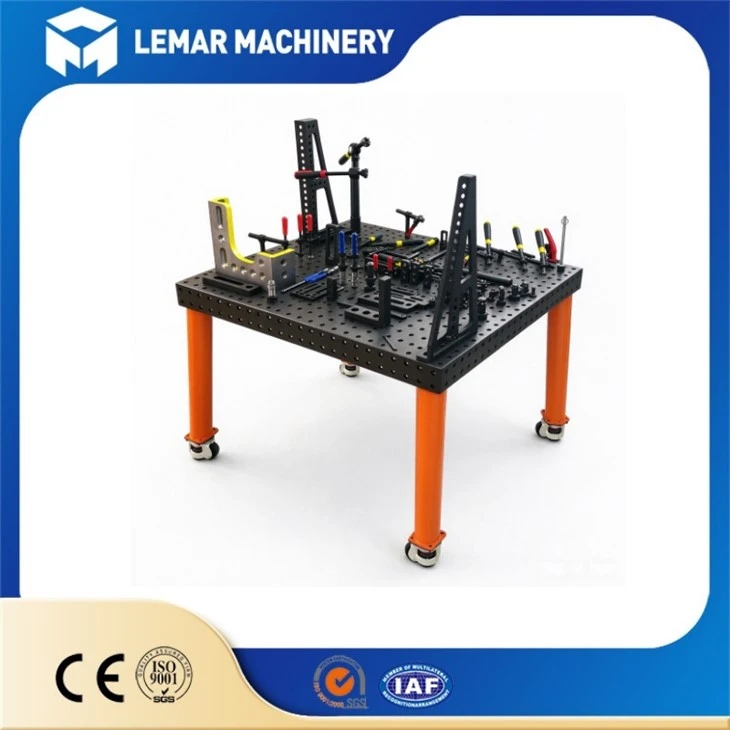

3D Modular Welding Fixture Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Product Overview
Our 3D Modular Welding Fixture Table delivers flexible and repeatable clamping solutions for various welding and assembly jobs. Built with a precision machined surface and standardized hole system, this welding worktable allows operators to quickly arrange, adjust and reconfigure fixtures without custom machining. The modular design eliminates the need for dedicated jigs for every single workpiece, greatly cutting down setup time. It maintains stable flatness under heavy load during welding operations, reducing deformation and improving welding consistency. Suitable for small batch prototypes and mass production alike, this table is a reliable foundation for modern fabrication workshops.
Our address
No.505 Jiefang Road,Liangxi District,Wuxi City,China
Phone Number
+86 159 9526 9947
evasummer@lemarmetal.com
Products Parameters
Core Advantages
Triaxial Positioning for Complex Geometries
The 3D multi plane hole grid supports fixture installation across horizontal vertical and angled orientations. It locks oddly shaped metal components firmly in place to stop unwanted shifting while welding and assembling complex structures.
Modular Tooling Cuts Down Custom Fabrication Work

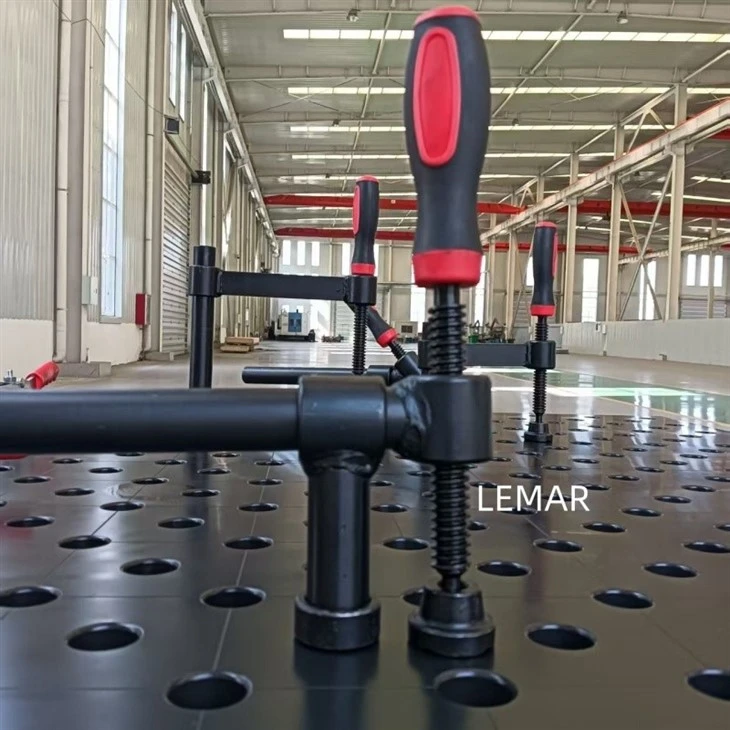

The full set of locating elements and clamps can be rearranged and reused across different workpieces. This removes the need for time consuming custom jig fabrication for every new product batch.
Stress Relief Process for Long Term Geometric Stability
Base plates go through dedicated stress relief before precision machining. This processing greatly lowers the risk of table warping triggered by repeated thermal cycling during continuous welding operations.
Product Applications
Our 3D modular welding fixture table delivers multi angle positioning capability for custom metal fabrication projects. It provides secure clamping and precise alignment for heavy frame assembly, mechanical equipment build off, onsite pipeline prefabrication, custom metal art fabrication, vehicle retrofit component welding and test prototype assembly.
This table supports welding jobs for carbon steel stainless steel and thick aluminum profiles. It works for custom job shops with variable order types and medium scale production facilities requiring consistent dimensional repeatability. Fabricators use this three dimensional fixture platform to reduce assembly tolerance errors and simplify setup for non standard workpieces.
Customer Feedback
Certification & Factory Inspection
Transport packaging
FAQ
Q1:What Hole System Does This Welding Table Use?

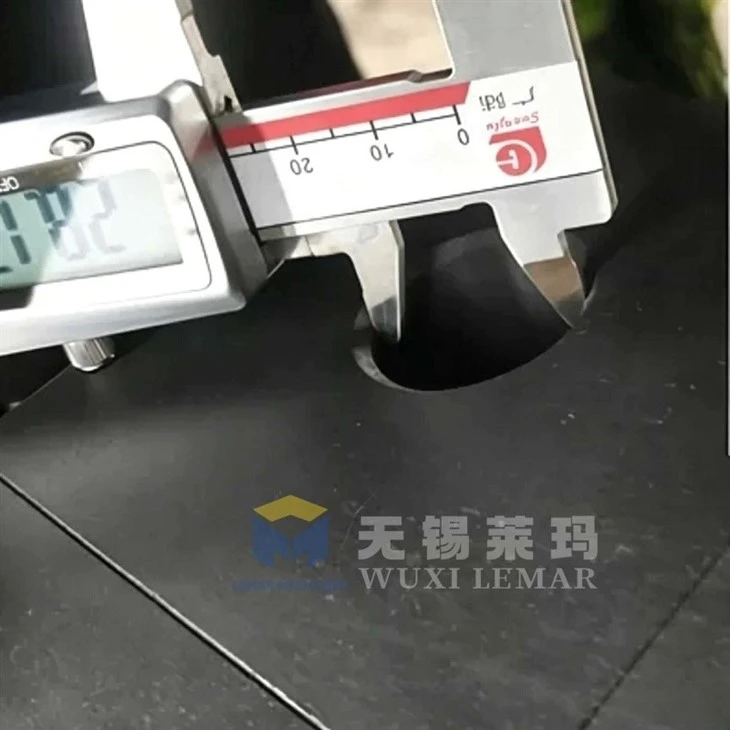

This table is built with D28 modular hole grid, compatible with the complete range of D28 series fixture accessories for multi angle clamping.
Q2:Can I Customize The Table Size According To My Workshop Space?
Yes, custom table dimensions are available. Please share your maximum workpiece outline and workshop layout so our team can provide a tailored quotation.
Q3:Is The Table Surface Resistant To Welding Spatter?
The nitrided hardened surface reduces welding slag adhesion. Any residual spatter can be cleared easily with standard hand tools without damaging the precision hole structure.
Q4:What Is The Maximum Load Capacity Of This Fixture Table?
Safe load rating varies based on table dimensions and frame reinforcement. Our technical team will recommend the proper model after learning your maximum workpiece weight.
Q5:Can I Buy Only Fixture Accessories Separately Without The Table?
Yes. Our full lineup of D28 clamps stops and positioning blocks can be purchased separately if you already own a compatible D28 modular welding table.
Q6:What Is The Lead Time After Placing An Order?
Standard size tables have shorter production cycles. Custom built tables require longer manufacturing time. Our sales team will confirm exact production and delivery timeline once your order details are confirmed.
Contact Info
Email:evasumme@lemarmetal.com
Wechat / Whatsapp：+86 159 9526 9947
