Professional 3D Welding Platform
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description

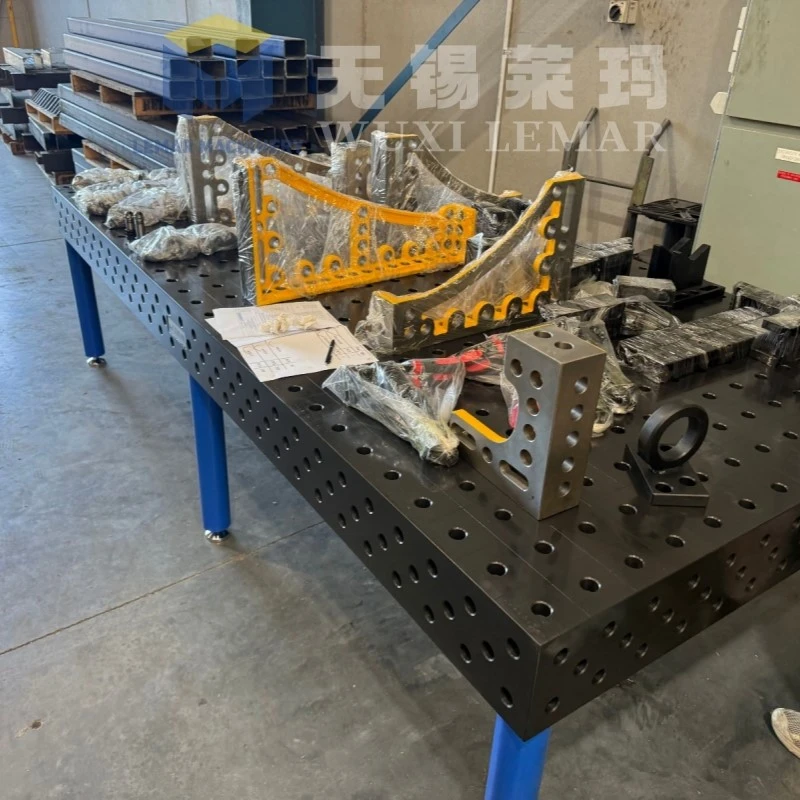

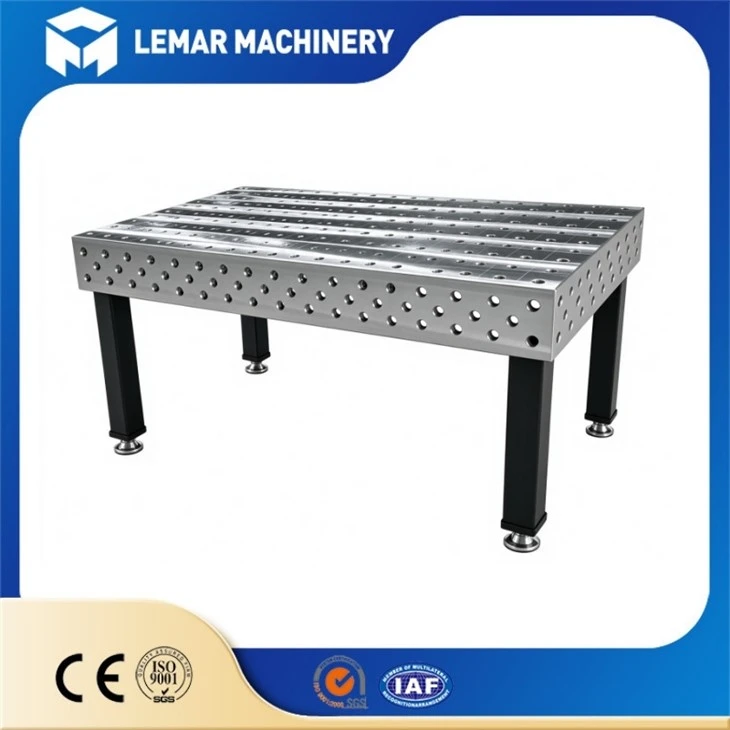

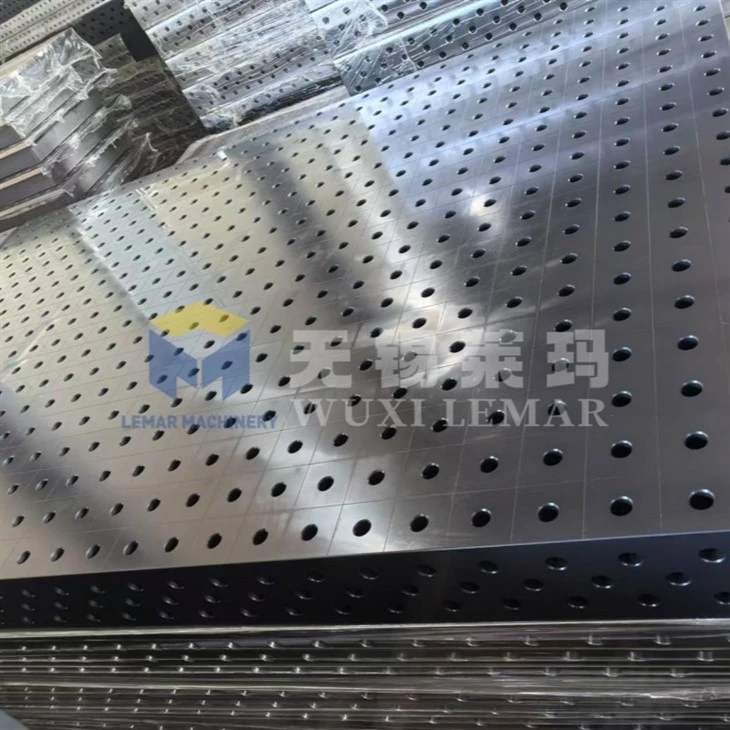

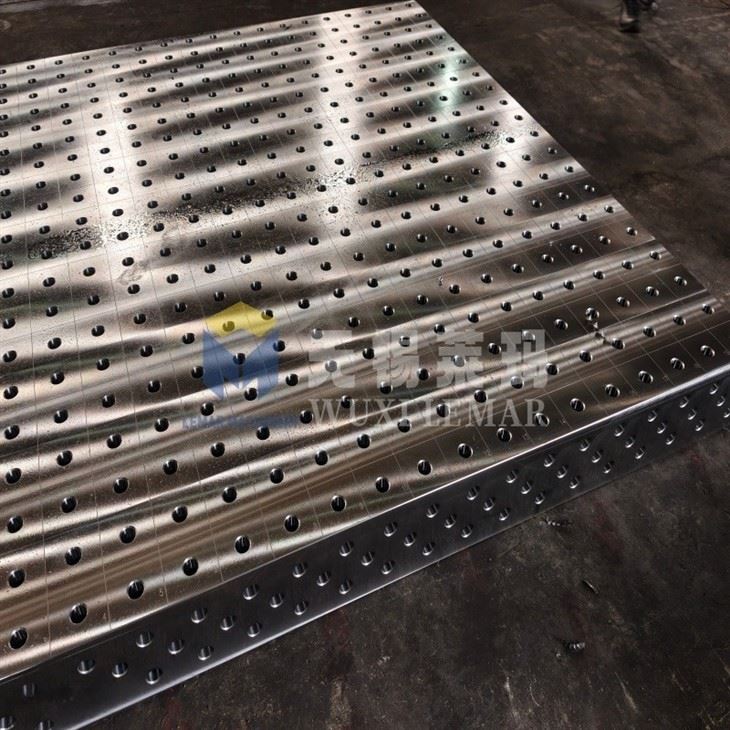

The Professional 3D Welding Platform is a high grade modular workstation developed for industrial metal fabrication and precision welding jobs. Built with integrated hole grids on the top surface and surrounding side panels, this platform enables three dimensional clamping and multi angle workpiece positioning. The tabletop is precision machined and treated with nitriding to enhance surface hardness and resist weld spatter buildup and abrasion. Its robust one piece plate design delivers excellent rigidity under heavy loads. Fabrication teams can quickly reposition clamps and supports to adapt to changing workpiece geometries. This professional workstation reduces fixture preparation time and ensures stable accuracy for both custom prototype work and consistent batch production.
Basic Parameters
- Standard dimensions (L × W, mm): 1000×1000, 1200×800, 1500×1000, 2000×1000, 2400×1200, 3000×1500, etc. (customizable).
- Tabletop thickness: 12mm (D16), 25mm (D28).
- Hole spacing / Hole diameter: D16 (50×50mm / φ16), D28 (100×100mm / φ28).
- Precision: Flatness 0.1mm/m; hole position accuracy ±0.03mm.
- Load capacity: 1–2 tons/m².
2D Welding Table
- Only the top surface features standard locating holes; the side walls are solid (hole-free) and the structure is simple, limiting workpiece clamping and welding to the horizontal plane.
- While accuracy and load-bearing capacity match those of standard 3D welding tables, overall rigidity is lower, and the sides cannot be used for vertical or multi-angle positioning.
- Advantages: Lower price, high cost-effectiveness, compact footprint, and easy maintenance.
- Suitable for: Flat workpieces (such as plates and sheet metal) requiring only planar welding; high-volume production of single-type products; small, simple workstations; and scenarios with limited budgets.
3D Welding Table
- Features a box-type reinforced base with a standard hole pattern evenly distributed across five surfaces (top and four sides), ensuring superior overall rigidity.
- Supports clamping in full 3D space-including horizontal, vertical, and inclined orientations-enabling vertical, fillet, and multi-angle welding; modular fixtures allow for flexible, free-form configurations.
- Advantages: Compatible with various frames, housings, pipe fittings, and heavy structural components; enables rapid tooling changeovers, making it ideal for high-mix, low-volume production.
- Applications: Welding of complex 3D workpieces in sectors such as automotive parts, construction machinery, and rail transit; suitable for scenarios requiring high tooling flexibility (note: overall cost is higher than 2D versions).
Product Advantages
Three dimensional hole arrangement on the tabletop and side panels supports multi plane clamping. Welders can secure workpieces at complex angles without building complicated dedicated jigs for each new product.
Nitrided surface treatment creates a hard protective layer that repels weld spatter and resists scratches. This treatment preserves surface flatness and hole precision after long hours of continuous industrial workshop use.
Reinforced rigid plate structure withstands heavy static loads and repeated clamping pressure. It minimizes bending deformation and keeps alignment stable even when handling large and heavy metal workpieces.
Interchangeable modular segments allow flexible workstation expansion. Users can connect extra platform sections to create larger working zones or separate modules to run multiple small welding tasks independently.

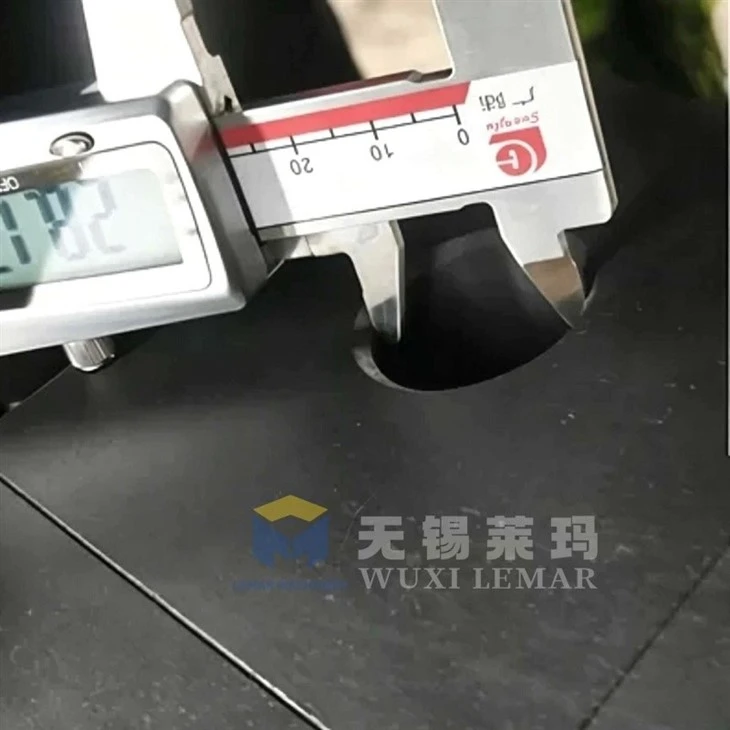

Precision milling of the D28 hole grid maintains consistent hole positioning across the whole platform. Every fixture reinstallation achieves repeatable alignment and cuts measurement errors during assembly.

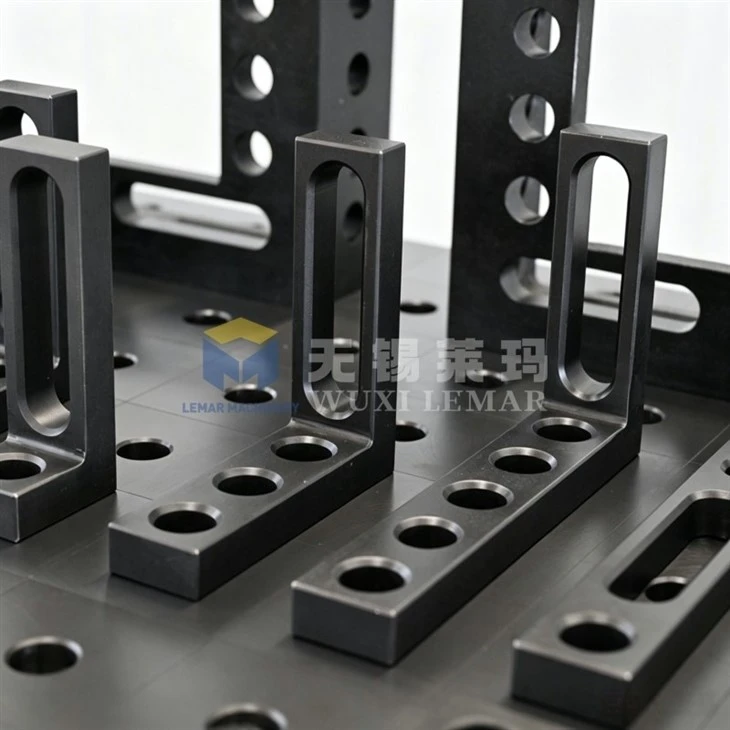

Universal compatibility with full D28 fixture series including clamps supports and stops. This allows quick assembly of custom fixture layouts and lowers extra spending on special positioning tooling.
Quality Certificate
FAQ
Q1:What is the key advantage of 3D structure compared to ordinary flat welding tables?
The 3D design adds holes on vertical side panels, which allows fixtures to be mounted on multiple planes. Operators can fix workpieces from horizontal and vertical directions for complex angle welding.
Q2:How does nitriding treatment protect the professional 3D welding platform?
Nitriding forms a dense hardened layer on the steel surface. It improves wear resistance and prevents weld spatter from damaging the tabletop and hole structure.
Q3:Can I expand the platform area by adding more modules later?
Yes. All platform modules share the same D28 standard. New segments can be connected easily to extend your working space as your projects expand.
Q4:Are D28 clamps and positioning accessories included in the base platform price?
The base quotation only covers the main platform body. All fixture accessories are optional and can be ordered separately according to your project plans.
Q5:Can you adjust the platform size and side panel layout for our special workshop requirements?
Custom dimensions and side panel designs are supported. Submit your workpiece drawings and workshop layout for our technical team to create a tailored solution.
Q6:What routine maintenance work should be done for this professional 3D welding platform?
Clean weld spatter from holes and surfaces after each working shift. Avoid sharp heavy impacts to protect the precision machined surface and maintain long term flatness.
