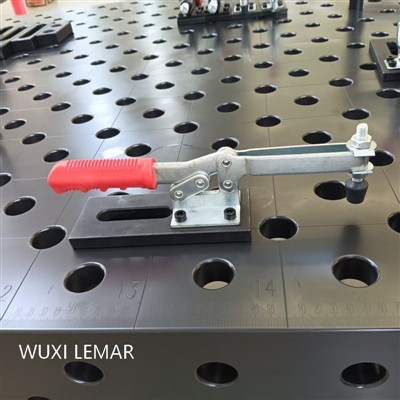

How to determine if the precision of a 3D welding table meets the standards?

I. Core Precision Indicators and Testing Methods

1. Flatness Error: Measures the overall flatness of the worktable surface. Use an electronic level or autocollimator with a bridge plate, measure points according to a grid layout, and evaluate the error using the minimum area method or diagonal method.

2. Dimensional and Positional Errors:

External Dimensions: Use a laser tracker or coordinate measuring machine (CMM) to check if the length, width, and height conform to the design values.

Positioning Hole/Slot Positional Accuracy: Use a laser tracker or CMM to measure the deviation between the actual position and the theoretical position of the hole/slot.

3. Repeatability: Calculate the maximum fluctuation range of the results after multiple measurements at the same position, reflecting the stability of the equipment.

4. Linearity Accuracy: Whether the error is uniformly distributed across the entire measurement range. It is usually marked as "error per meter" to avoid cumulative errors in the measurement of large workpieces.

II. Testing Process and Tools

1. Preparation: Clean the welding station and place it in a stable environment.

2. Measurement: Obtain data using professional instruments (such as CMM, laser tracker) as described above.

3. Comparison: Compare the measured data with the design drawings or technical agreement requirements.

4. Judgment: Acceptance is deemed complete if all errors are within the allowable tolerance range.

III. Key Considerations

1. Accuracy is a comprehensive indicator: It needs to be evaluated in conjunction with flatness, dimensional accuracy, repeatability, and other aspects.

2. Reliance on professional equipment: It is recommended to entrust a third-party testing agency or use the company's own high-precision equipment such as a CMM.

3. Pay attention to acceptance standards: The specific accuracy requirements in the contract or technical agreement shall prevail.
