3D Welding Table Kit

Name: China 3D Welding Table Kit Manufacturers Suppliers Factory - OEM 3D Welding Table Kit
Brand: Lemar
SKU: 303396805

Material:Steel/Cast iron
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar

Send Inquiry

Products Description

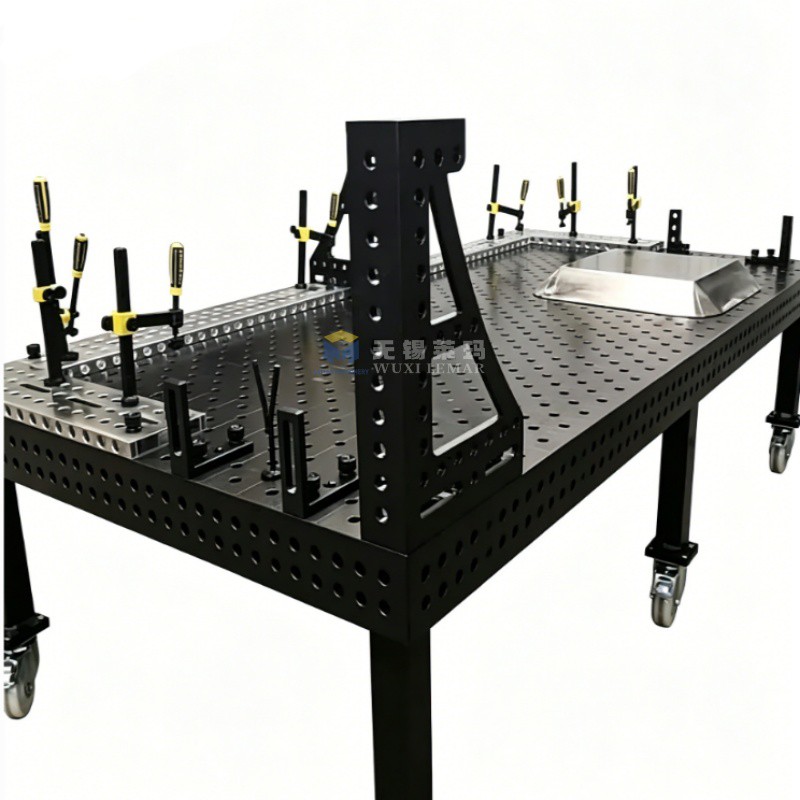

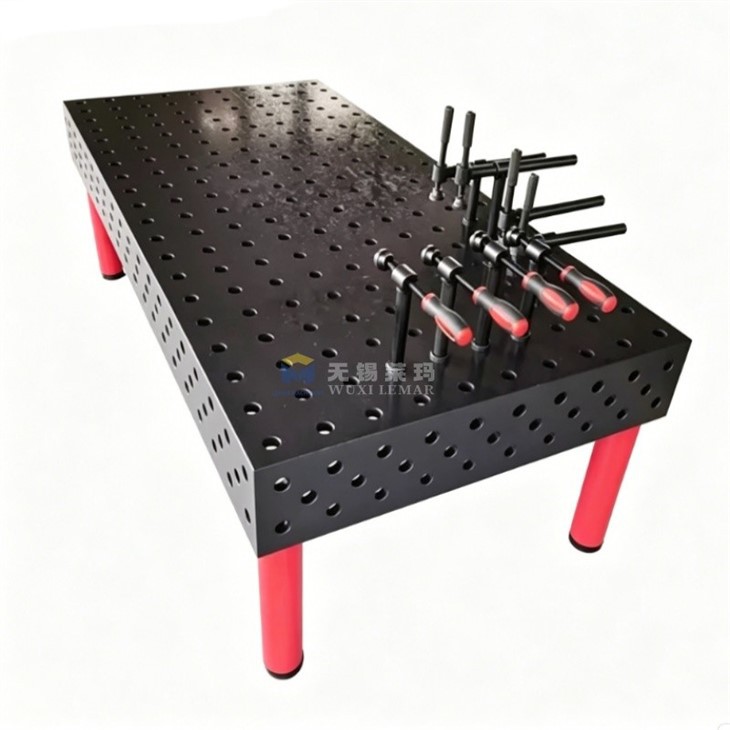

The 3D Welding Table is a high-precision welding fixture based on a standardized hole grid and modular clamps, used for three-dimensional spatial positioning, clamping, welding/assembly of complex workpieces.

Working surfaces: Top surface + four side surfaces, a total of 5 surfaces with evenly distributed standard positioning holes (mainly D16/D28), hole spacing 50/100mm grid.

Material: Cast iron HT300: Good rigidity, small deformation, long-lasting precision retention, suitable for heavy loads and high precision.
Steel Q355: High toughness, impact resistance, high cost-effectiveness.

Precision: Flatness 0.02mm/1000mm, hole position accuracy ±0.05mm, spatial positioning accuracy ±0.03~±0.1mm.
Surface treatment: Gas nitriding, hardness HRC58-62, wear-resistant and corrosion-resistant, lifespan increased by 3 times+.
welding table as

learn more

Modular clamping system

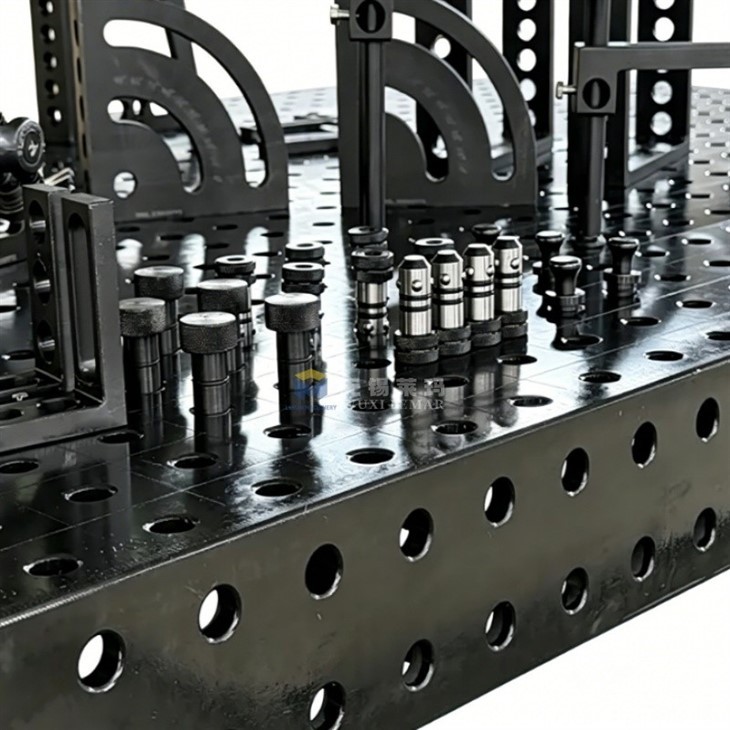

Positioning devices: Positioning pins, V-blocks, right-angle blocks, reference plates (establish XYZ references).

Clamping devices: Quick clamps, screw clamps, horizontal/vertical pressure plates (securely hold workpieces).

Support devices: Adjustable support columns, extension rods, angle blocks (adapt to complex curved surfaces and heights).

Connecting devices: Locking pins, connecting blocks, extension plates (for multi-platform splicing, expanding the working surface).

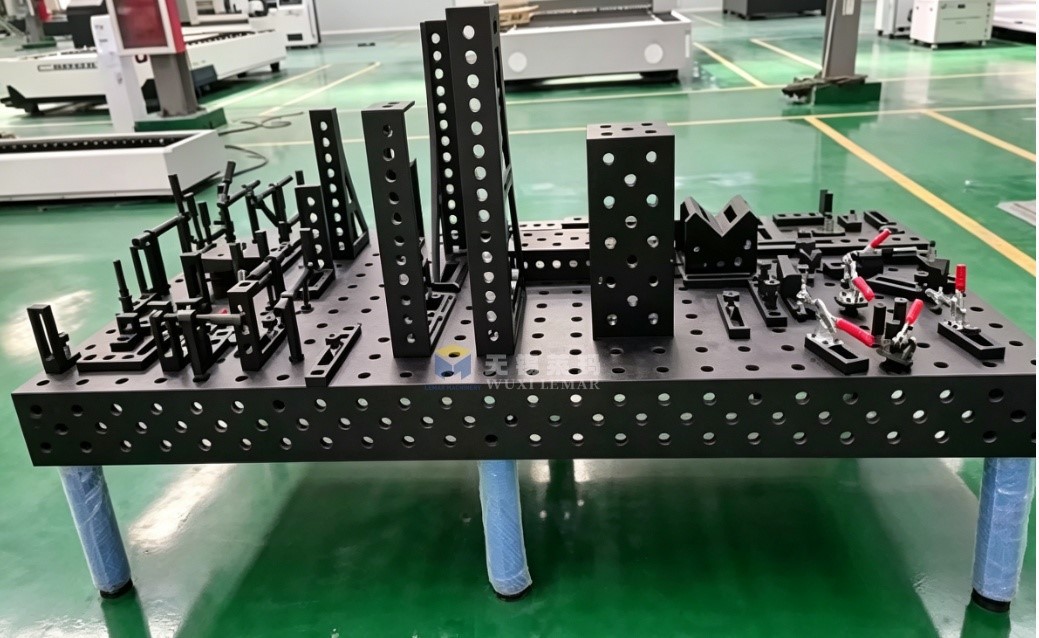

153

Customer feedback

User Evaluation

This 3D welding table boosts our workshop efficiency significantly. The 5-sided precision hole system ensures accurate positioning and low welding deformation. Modular fixtures support quick product switching without custom jigs. It features great rigidity and stable precision for consistent welding quality.

John Miller

oduction Manager

Ideal for custom and small-batch automotive welding. The nitrided surface is anti-wear, anti-corrosion and slag-resistant. Compatible with both manual and robotic welding, it stabilizes product quality and lowers defective rates effectively.'

Sarah Johnson

Workshop Supervisor

This versatile 3D welding table replaces costly custom jigs, fitting all our custom and mass welding tasks. High flatness and rigidity guarantee stable precision. Fast setup saves labor costs, perfect for diversified welding production.

Steven Clark

Factory Director

Differentiated category segmentation

Fixed machining table: Sturdy and durable, suitable for long-term use in a fixed workstation.
Mobile machining table: Equipped with casters for flexible workpiece movement within the workshop.
Lift-type machining table: Height adjustable to accommodate operators of different heights and machining angles.

Certificate of Product Quality

FAQ

Other information about Steel Fabrication Tables

Are the fixtures included in the kit?

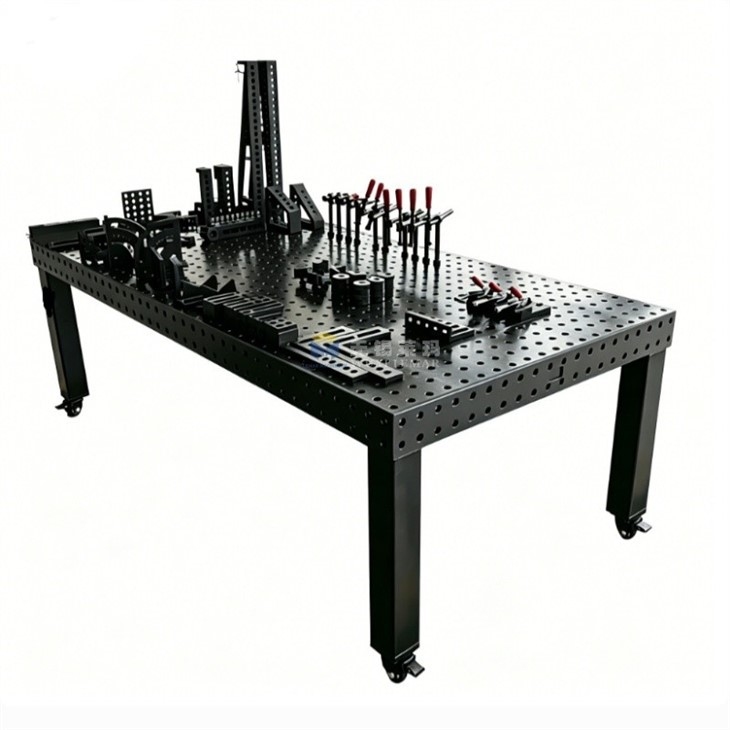

Yes. Standard kit includes table top, legs, clamping set, positioning pins, angles; full accessory list available.

Can I customize size, height, or hole pattern?

Fully customizable – dimensions, height, D16/D28, scales, nitriding, logo.

What's your MOQ?

1 set for standard; OEM/ODM 5 sets.

What trade terms do you accept?

EXW, FOB, CIF, DAP, DDP to most countries.

What payment methods do you accept?

T/T (30% deposit), L/C, PayPal, Credit Card.
