Fabrication Welding Table
Material:Cast iron
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Raw
Type:3D D28
Size:1500*1500mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
Built for Large-Scale Welding, Jig Assembly, and Structural Fabrication – No Paint to Burn, No Surface to Damage
[Get Factory Price →Eva summer]
WUXI LEMAR
Product Overview

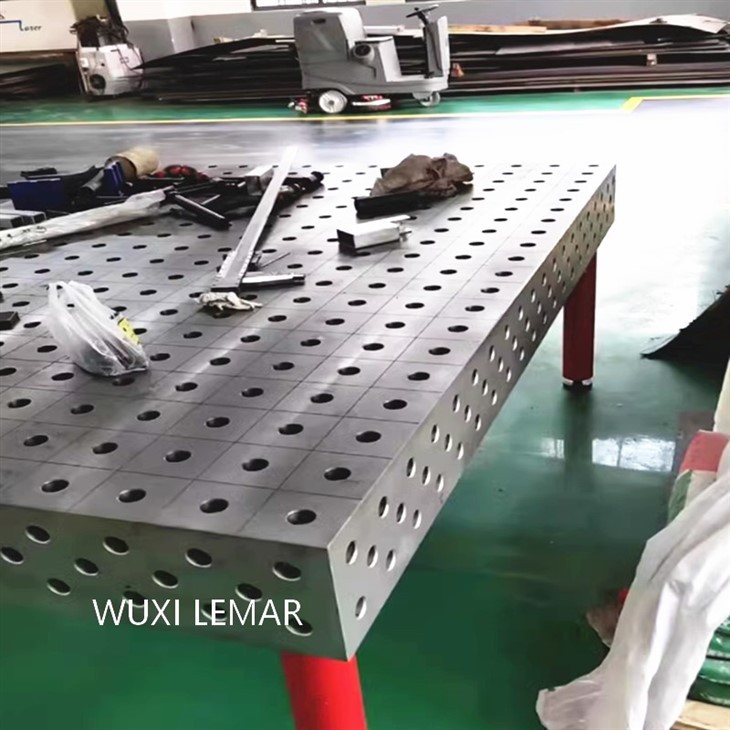

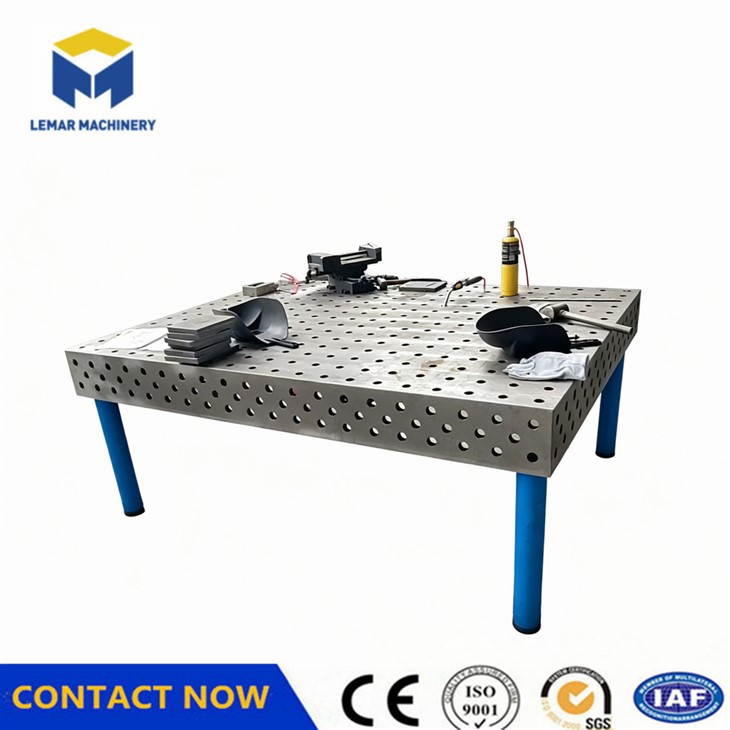

D28 Cast Iron Fabrication Welding Table (1500*1500mm) is a heavy-duty, industrial-grade workbench designed for precision welding, assembly, and fabrication tasks.
Manufactured from high-quality raw cast iron, this table provides exceptional dimensional stability, vibration dampening, and heat resistance – critical attributes for demanding metalworking environments.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47(Eva Summer)
Products Parameters
| Parameter | Specification |
|---|---|
| Model | D28 |
| Material | Raw Cast Iron (Uncoated / No paint) |
| Table Size (L x W) | 1500 mm x 1500 mm |
| Thickness (Typical) | 25–35 mm plate (depending on supplier spec – confirm with drawing) |
| Hole Diameter | 28 mm |
| Hole Pattern Grid | Typically 100 x 100 mm (or 125 x 125 mm – verify with drawing) |
| Flatness Tolerance | ≤ 0.01 mm / m² (precision ground surface) |
| Surface Finish | As-cast or lightly machined raw surface |
| Underside | Reinforced ribbed structure |
| Standard Accessories | Table top only (clamps, legs, tooling sold separately) |
| Optional Legs | Heavy-duty steel legs with leveling pads (order separately) |
Note: Raw material tables may have minor surface scale or casting marks. Light grinding before first use is recommended for precision work.
Products Advantages
Why choose this Welding Table?
Key Features & Benefits
High-Grade Cast Iron Construction
Excellent vibration absorption reduces weld distortion and improves cut accuracy. Naturally resistant to warping under thermal stress.
1500x1500mm Large Work Surface
Ample space for oversized fabrications, jigs, and multi-component assemblies.
28mm Hole Grid System
Standardized hole pattern (often 100x100mm or similar grid) accepts universal tooling – clamps, stops, angles, and fixtures lock in securely.
Ribbed Underside Design
Maximizes strength-to-weight ratio while keeping the table flat and stable over decades of use.
Products Applications
Heavy Fabrication Shops – Welding steel frames, heavy equipment repair, structural steel assembly.
Tool & Die Shops – Fixture building, jig setup, precision layout work.
Maintenance & Repair (MRO) – Straightening, pressing, and aligning large components.
Pipeline & Tank Fabrication – Large-diameter pipe supports and vessel sub-assemblies.
Art & Architectural Metalwork – Large sculptures, gates, staircases.
Vocational Training Labs – Stable, durable student workbench.
Shipping & Packaging
Packaging: Heavy-duty wooden crate + foam padding + anti-rust oil coating
Shipping: Freight (LTL / full truckload) – please contact for quote
Lead time: 15–30 days (depending on quantity and custom specs)
Frequently Asked Questions
Q1.Why choose raw cast iron instead of a painted steel table?
Q2.Does the table come with legs?
Q3.What does "D28" mean?
Q4.How do I prevent rust on a raw cast iron table?
Q5.What is the maximum weight capacity?
Increase your welding productivity and accuracy – starting with a truly professional worktable.
[Request a Quote] | [View Fixturing Kit] | [Contact Us for Custom Sizes]
📞 Contact our sales team now
📧 Email: evasummer@lemarmetal.com
📞 Phone: +86 159 9526 9947
🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
