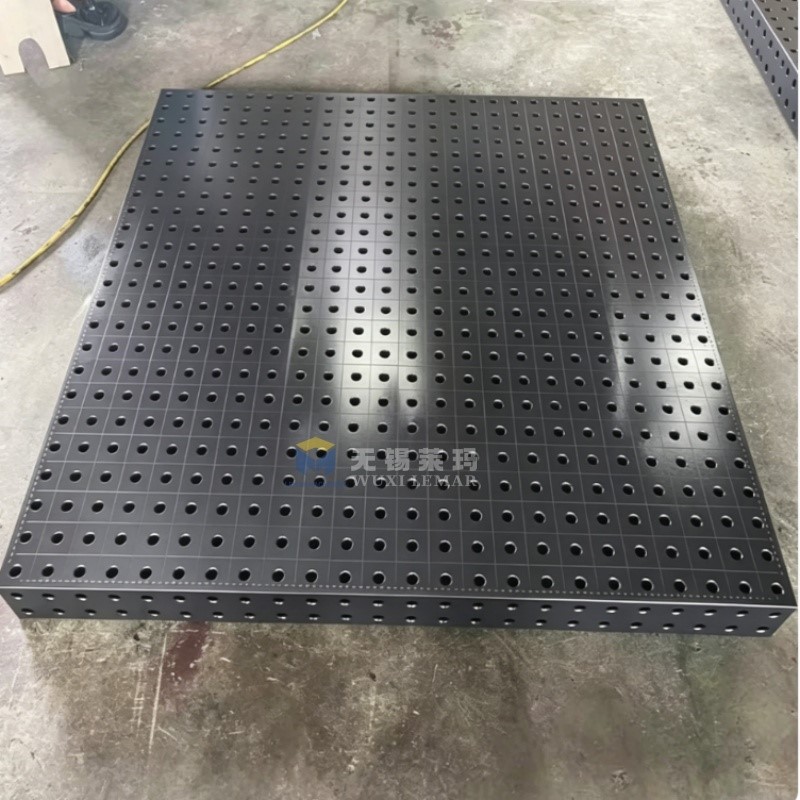

Welding Jig Tables
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description
This product

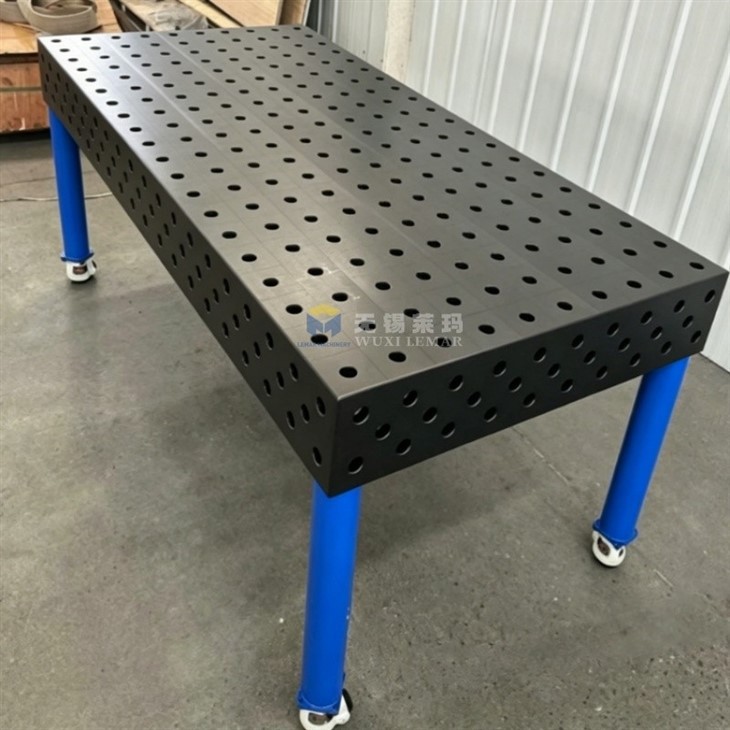

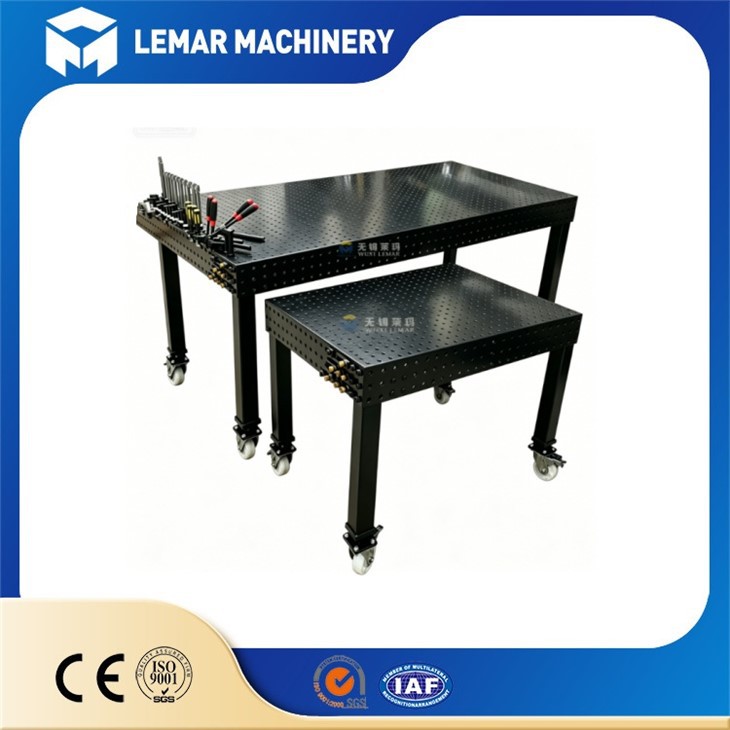

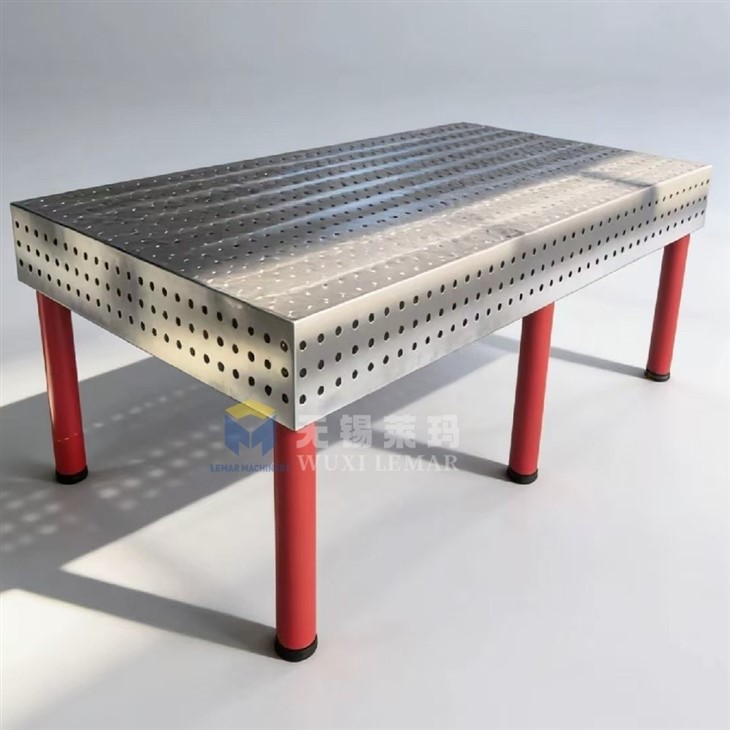

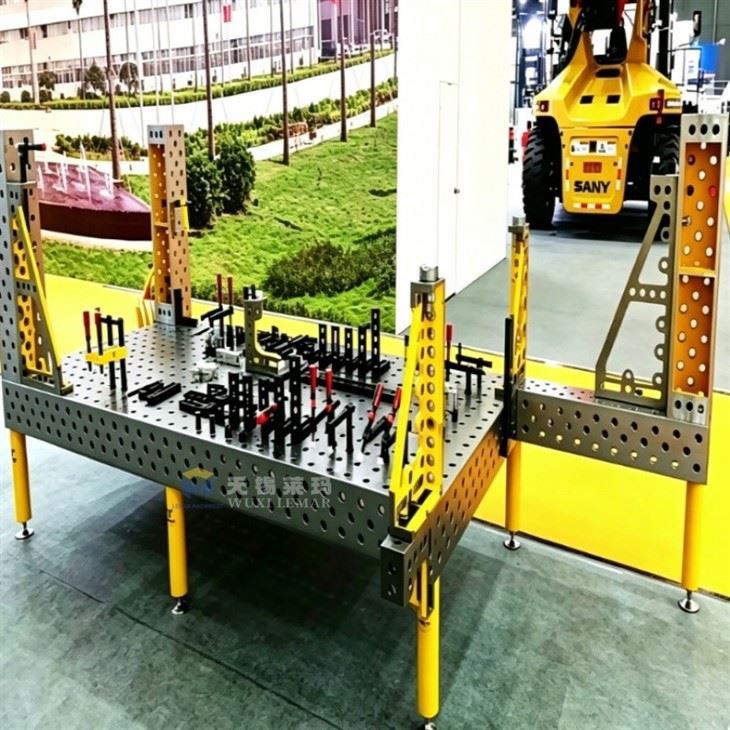

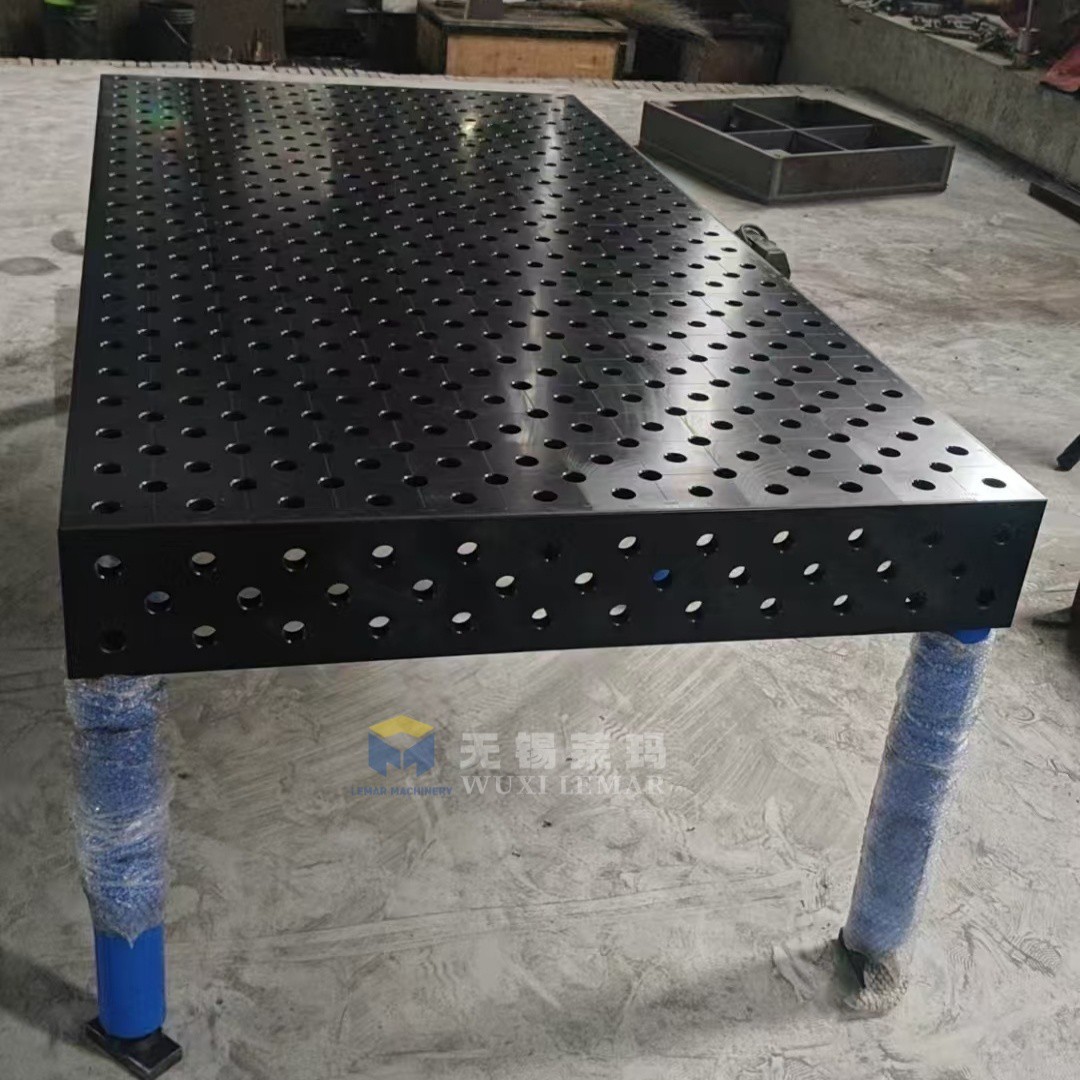

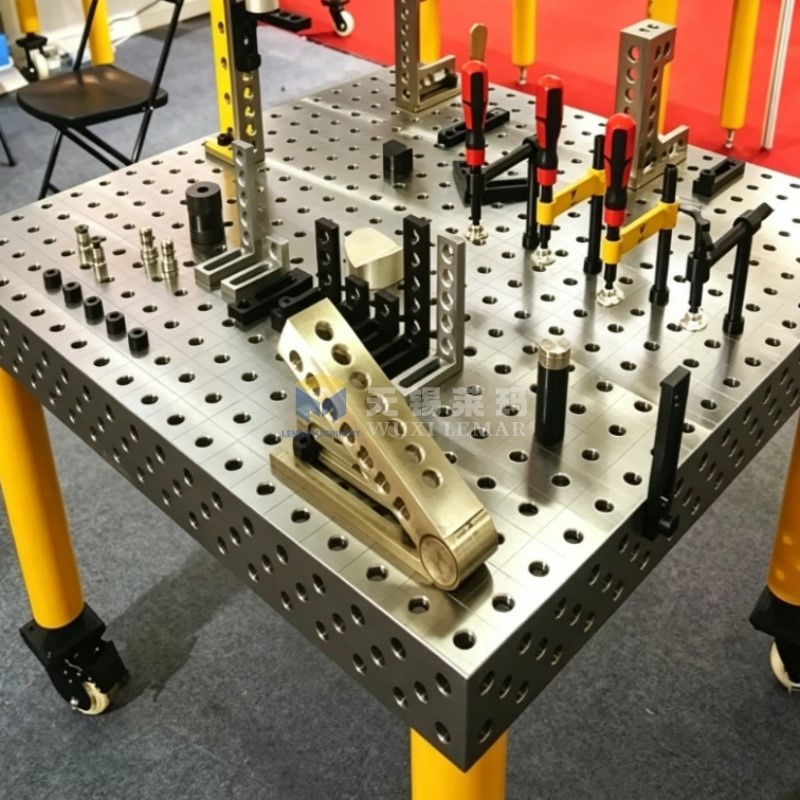

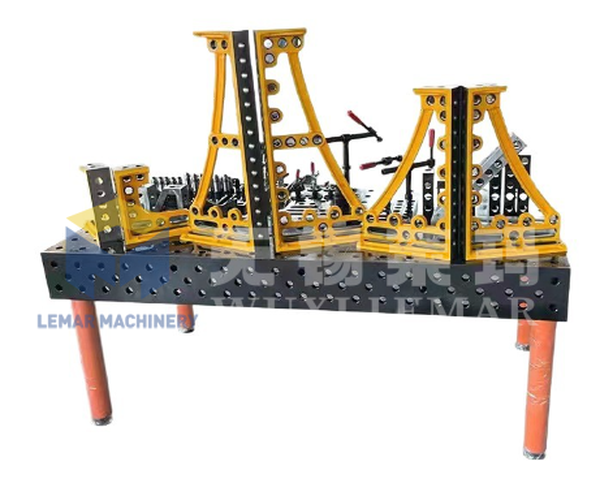

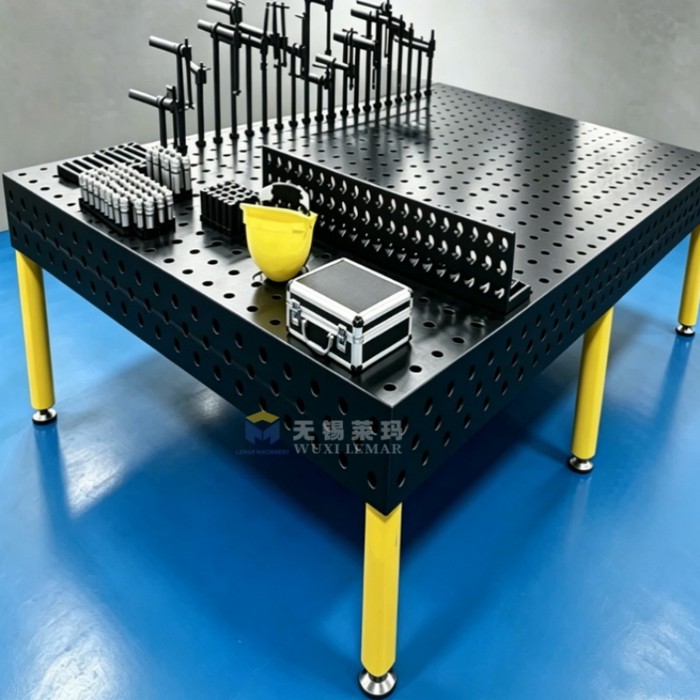

Welding Jig Tables are high-precision positioning platforms specifically designed for welding workshops. Their primary function is to accurately position and securely clamp workpieces, thereby ensuring dimensional consistency in welding, minimizing deformation, and boosting efficiency. As such, they serve as essential equipment for mass production welding, precision welding, and complex assembly welding operations.
2D vs 3D
Mainstream Materials and Characteristics
Gray Cast Iron HT200/HT250/HT300 (Industry Standard)
Features excellent shock absorption, resistance to thermal deformation during welding, and high rigidity; suitable for medium-to-heavy-duty welding applications. The working surface hardness ranges from HB170 to HB240. It undergoes a secondary aging treatment to relieve internal stresses, ensuring minimal deformation even after prolonged use.
Ductile Iron QT450
Offers superior toughness and impact resistance. It is primarily utilized in heavy-load environments and applications involving frequent lifting operations. Its cost is higher than that of standard gray cast iron.
High-Quality Carbon Steel Q345/Q355
Lightweight and portable; ideal for small-scale projects, mobile workstations, and the welding of thin sheet metal.
Features and Specifications
Product Specifications
- Flatness: Precision Grade ±0.03 mm/m; Industrial Grade ±0.05 mm/m.
- Repeatability: ±0.02 to ±0.05 mm.
- Load Capacity per Square Meter: Standard 5–10 tons; Heavy-Duty up to 30 tons or more.
- Table Dimensions: Standard sizes include 1000×1200 mm, 1000×2000 mm, 2000×3000 mm, etc.; capable of infinite modular splicing.
Product Features
- Precise Positioning: Welding Jig Tables ensure consistency in workpiece dimensions, angles, and coaxiality, with tolerances achievable within ±0.02 to ±0.05 mm.
- Anti-Deformation: A rigid platform combined with multi-point clamping effectively counteracts thermal deformation and stress-induced distortion caused by welding.
- Repeatable Production: Once the fixturing setup is established, it can be replicated an infinite number of times, making it ideal for mass production.
- Efficiency & Cost Savings: Rapid changeover capabilities allow a single platform to replace dozens of specialized fixtures.
- Safe Operation: Eliminates the need to manually hold workpieces, thereby reducing the risk of burns and dropped parts.
Installation and Usage Guidelines
Installation Requirements
- Foundation: The ground surface must be level and meet load-bearing requirements; for large-scale platforms, a concrete foundation is recommended.
- Leveling: Equipped with adjustable leveling pads/feet; the overall levelness must be ≤0.1 mm/1000 mm. Under no circumstances should any side be left suspended in mid-air.
- Lifting: Employ multi-point, evenly distributed lifting techniques to prevent concentrated stress at a single point, which could result in deformation of the platform surface.
Usage Restrictions (Protection of Reference Surfaces)
❌ Do not strike an arc directly on the tabletop, nor use it for hammering or grinding; doing so will compromise its flatness and damage the positioning holes.
❌ Do not exceed the rated load capacity, and avoid prolonged stacking of excessively heavy workpieces.
✅ When welding, use a protective pad to shield the surface from welding spatter and high-temperature slag.
