D28 Modular Welding Tables
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description

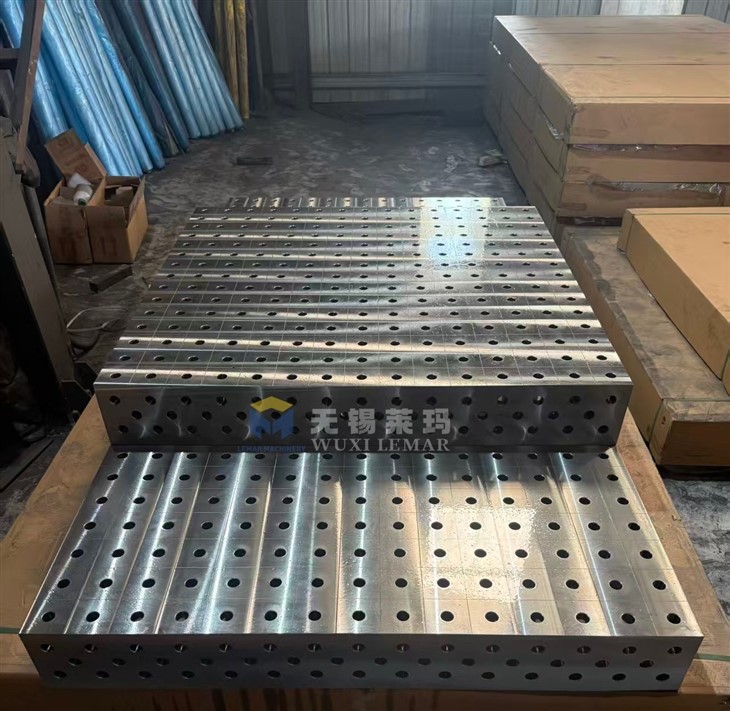

D28 Modular Welding Tables are high-precision, 3D flexible welding fixturing platforms featuring 28mm diameter holes and a 100×100mm grid pattern. Defined by their core attributes-modularity, high precision, and strong compatibility-these tables are utilized for metal welding, assembly, inspection, and positioning, serving as the mainstream standard fixturing solution for both heavy industry and precision manufacturing.
Tabletop Material: HT300 Cast Iron or Q355 Steel; Thickness: 25mm. Nitriding treatment applied; Hardness: 20–25 HRC; Features: Rust-resistant, slag-resistant, and wear-resistant.
Flatness: Standard Grade: ±0.1mm/1000mm; Precision Grade: ±0.05mm/1000mm.
Load Capacity: 2000–3000 kg/m²; Suitable for heavy-duty workpieces.
2D vs 3D
Core Strengths
High-Precision Positioning
Hole spacing accuracy of ±0.05 mm and a repeatability of ≤0.1 mm ensure excellent welding consistency and a high pass rate.
01
Modular Flexibility
Standardized and interchangeable accessories reduce product changeover time from 8 hours to just 15 minutes, making the system ideal for high-mix, low-volume production.
02
Durable and Easy to Maintain
The D28 Modular Welding Tables feature a nitrided surface layer that resists corrosion and prevents weld spatter adhesion, ensuring a long service life and simple cleaning.
03
3D Spatial Operation
The 3D five-sided hole pattern allows for clamping along the X, Y, and Z axes, enabling the welding of complex structures-such as vehicle frames and machine chassis-without any blind spots.
04
High Compatibility
Adhering to the globally recognized D28 standard, the system is 100% compatible with accessories from brands such as Demmeler and Fixto, resulting in low procurement and replacement costs.
05
Packaging and Logistics
Standard Packaging
- Worktop:Features a solid wood frame fully encased in multi-layer plywood; corners are fitted with protective guards to prevent impact damage, and all mounting holes are fitted with plastic caps to prevent damage during transit and keep debris out.
- Support Legs / Accessories: Individually packed in separate cardboard boxes or metal crates; small components such as bolts and pins are organized into compartmentalized plastic trays, accompanied by a detailed accessories checklist.
Shipping Methods
- Standard-sized worktops are shipped as a single, complete unit. Oversized worktops (3000 mm and above) may be shipped in modular sections. Both sea and land transport options are fully compatible with standard container and truck loading requirements.
Handling Instructions:
Single-point lifting and dragging of the tabletop are strictly prohibited. D28 Modular Welding Tables are equipped with standard lifting points; four-point synchronous lifting must be employed to prevent permanent deformation.
Quality Certificate
Contact Us
Company profile
Established in 2005, LEMAR MACHINERY is a professional Chinese manufacturer of welding equipment. We began with welding positioners, roller frames and manipulators, and extended our product line to CNC drilling machines, 3D welding tables and flexible tooling in 2008.
We launched global business in 2007 and upgraded products to international standards. Having obtained CE and GS certifications in 2015, we now serve over 30 countries and regions across Europe, America and beyond. Our products apply to automotive, shipbuilding, aerospace, wind power and other sectors. We strive to deliver dependable equipment and full solutions for worldwide clients.
Looking for D28 Modular Welding Tables? Reach out to us today for a quick quote or more details:
Chat with us online
Email: aywang@lemarmetal.com
WhatsApp / WeChat: +86 180 0619 3916
