Welding Setup Table

Name: China Welding Setup Table Manufacturers Suppliers Factory - Wholesale Welding Setup Table
Brand: Lemar
SKU: 300443461

Material:Steel/Cast iron
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar

Send Inquiry

product introduction

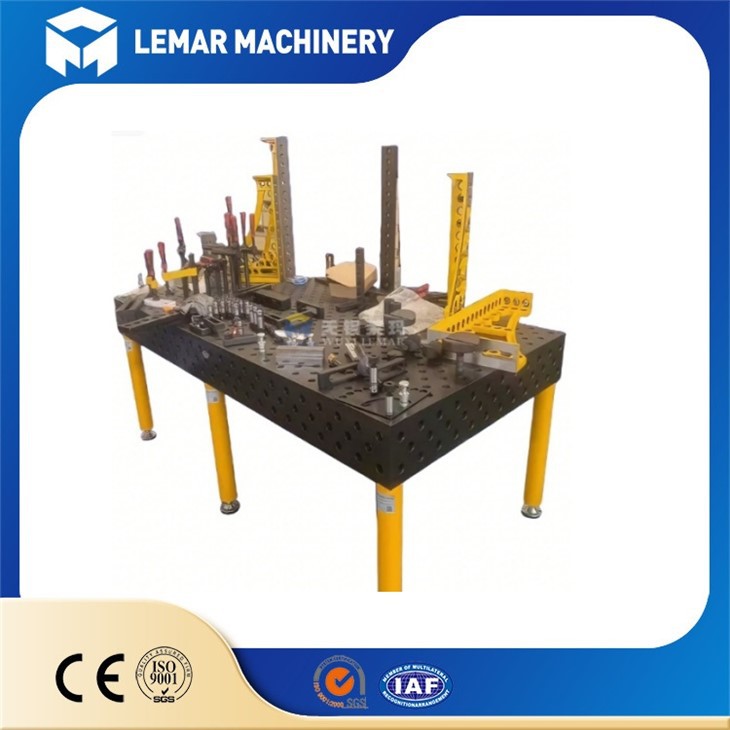

462 Welding Setup Table

Table: High-precision cast iron / steel plate, standard hole pattern D16/D28, hole spacing ±0.02mm, flatness ≤0.03mm/m.
Material: HT250/HT300 cast iron (age treatment, deformation ≤0.02mm/m) or Q355 steel nitriding.
Features: Modular design, equipped with positioning pins, clamping device, and V-block, enabling 15-minute quick changeover, with repeat positioning accuracy of ±0.05mm.

For more detailed information, please contact-Amy

Product Specifications

Basic Info

Top thickness: 25~100mm (thicker for better load-bearing capacity / stability).
Flatness: ≤0.03mm/m (precision), ≤0.05mm/m (ordinary).
Hole pattern specifications: D16 (light), D28 (heavy), hole spacing 50/100mm.
Load capacity: 1 to 20 tons (uniformly distributed on the work surface).
Material hardness: Cast iron HB170-240, nitrided steel HV550-650.

Standard Sizes

D28 System(Φ28 mm hole)	D16 System(Φ16 mm hole)
1000×1000 mm	1000×1000 mm
1000×1200 mm	1000×1200 mm
1000×1200 mm	1000×1200 mm
1500×1500 mm	1500×1500 mm
2400×2000 mm	2400×2000 mm
3000×1500 mm	3000×1500 mm
4000×2000 mm	4000×2000 mm

Our company provides non-standard customization services. If you are unsure which size of Welding Setup Table to choose, you can contact Amy and send photos of the workpiece for free consultation. We will provide the most suitable solution based on the actual situation of the customer.

core advantages

Compared to a regular workbench

Accuracy guarantee: positioning ± 0.05mm, good workpiece consistency, weld straightness ≤ 0.3mm/m, waste rate reduced by 25%+.
Efficiency improvement: Modular equipment can be changed in 15 minutes, replacing dozens of specialized fixtures, with a change efficiency of+80%.
Safe and stable: grounded to prevent electric shock, table surface resistant to high temperatures (≥ 600 ℃), resistant to welding slag, workpiece firmly clamped to prevent falling.
Cost reduction: One platform can adapt to multiple products, reducing the need for specialized fixture design and manufacturing, resulting in high long-term cost-effectiveness.
Flexible production: From small parts to large steel structures, it can be quickly adapted and suitable for multi variety and small batch production.

Key points for purchasing

Welding Setup Table

According to the size/weight of the workpiece: choose D16 light for small items and D28 heavy for large items, with a load-bearing capacity of ≥ 2 times the weight of the workpiece.
According to accuracy requirements: Select a 3D platform with a flatness of ≤ 0.03mm/m and a positioning of ± 0.05mm for precision parts.
According to material budget: Cast iron has high cost-effectiveness, nitriding steel is wear-resistant, slag resistant, and has a long service life.
According to scalability: Priority should be given to platforms that are spliceable and have standard hole systems (D16/D28) for easy expansion in the future.

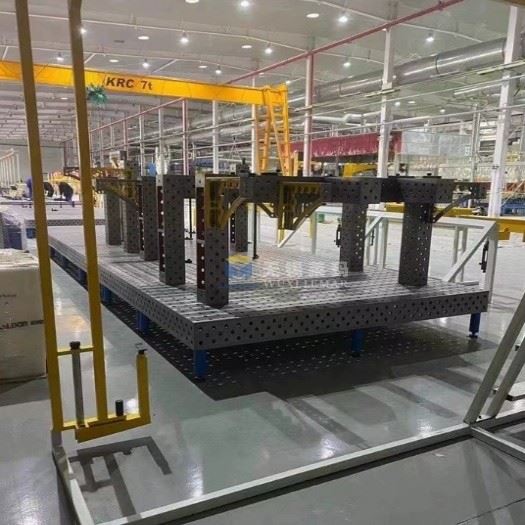

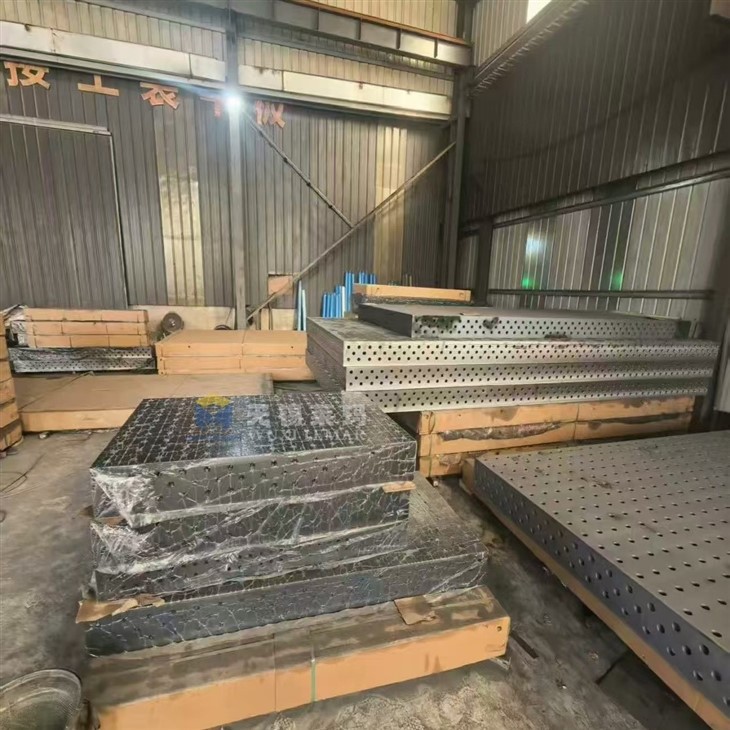

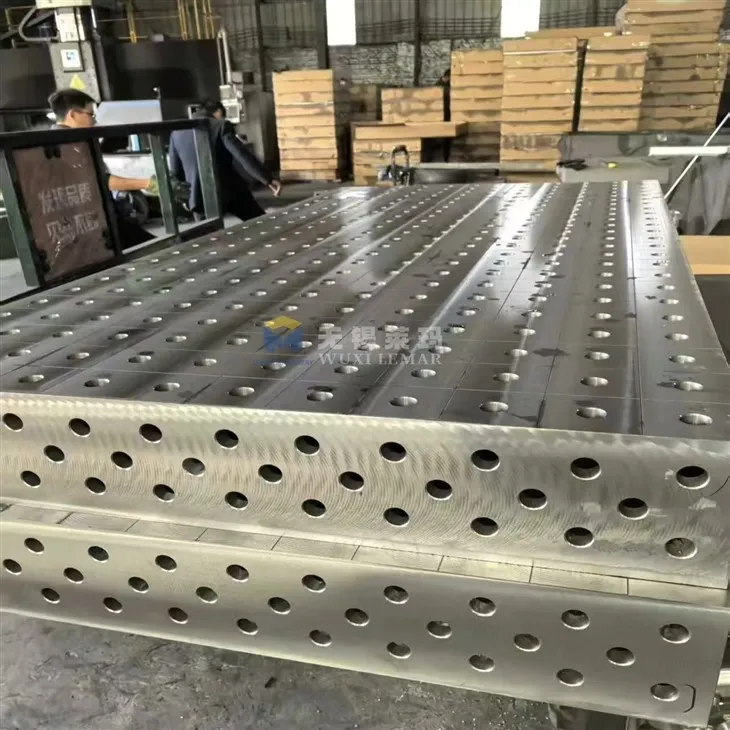

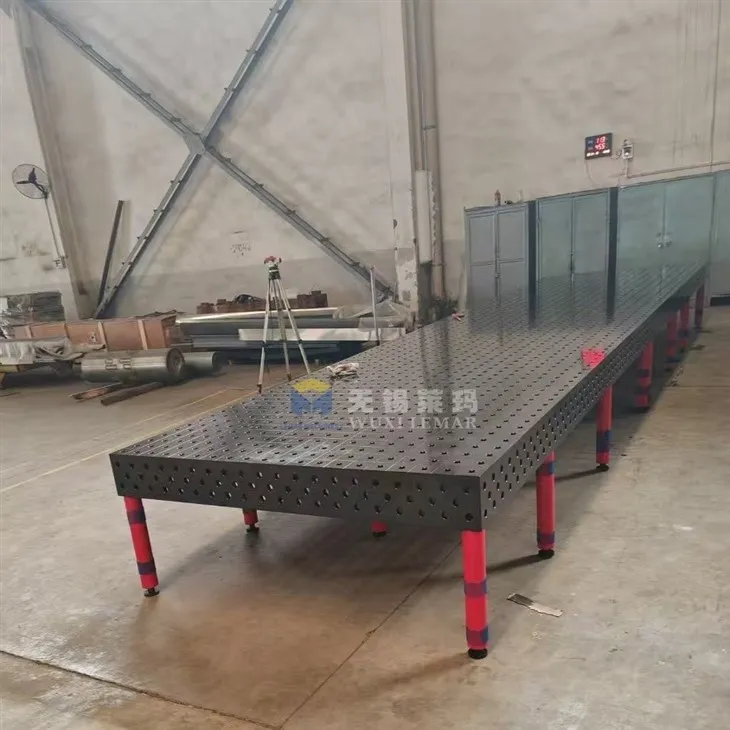

Product actual photos

Company profile

LEMAR MACHINERY

Starting locally and expanding to serve welding fixture partners in over 30 countries worldwide, this is our growth story:
2005 🏭 Founding Vision: Rooted in China, dedicated to welding equipment R&D;
2007 🌍 Going Global: Initiating a globalization strategy and upgrading products to international standards;
2008 ⚙️ Comprehensive Upgrades: Added 3D welding platforms and other production lines, transitioning into a comprehensive solution provider;
2015 ✅ Quality Certification: Obtained CE/GS certifications and entered the high-end European and American markets;
Today 🌟, we are present worldwide, serving high-end manufacturing sectors such as automobiles, wind power, and shipbuilding, earning the trust of global clients with our expertise.
