Shipping Lifting Bracket
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description
Professional Welding Fixtures
The Shipping Lifting Bracket is a standardized lifting accessory specifically designed for 3D flexible welding tables; also known as a "Lifting Eye Bracket" or "Lifting Point Base," its primary function is to facilitate the safe handling, hoisting, and repositioning of platforms and heavy-duty fixtures. It stands as one of the most frequently utilized lifting components among the accessories accompanying welding platforms.

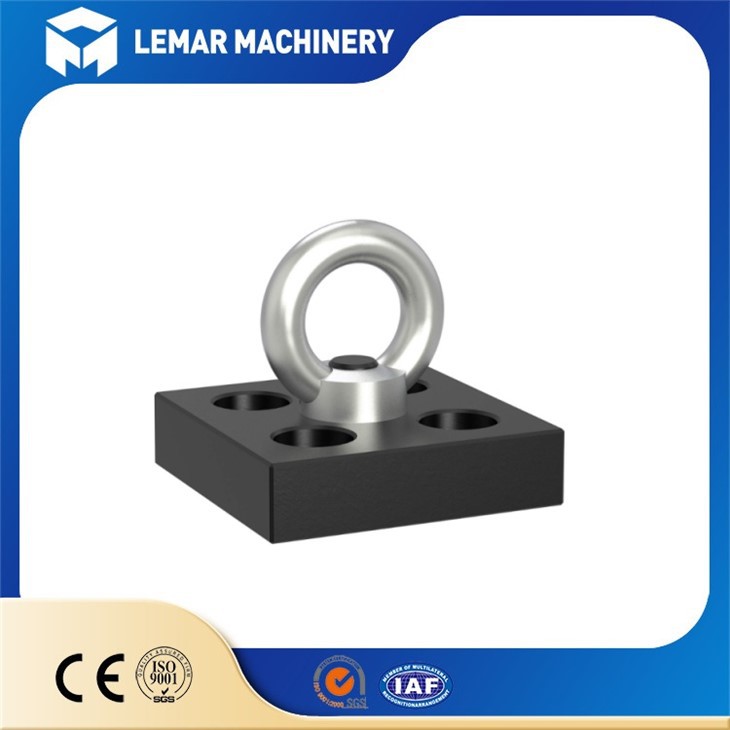

Structural Teardown
- Square Mounting Base: Material and Process-High-strength carbon steel (Q355/45 steel), featuring a black oxide / phosphating surface treatment for rust prevention. Function: Provides a secure mounting surface, incorporating four standard positioning holes (compatible with D16/D28 welding table hole patterns) that allow it to be directly fastened to a welding platform using T-bolts.
- Lifting Eye / Eye Bolt: Material and Process-Forged alloy steel (42CrMo), featuring a galvanized / stainless steel surface treatment for rust prevention. Function: Serves as the core load-bearing component; its annular design is compatible with standard lifting hooks and shackles, enabling it to withstand lifting tensile forces.
- Connection and Locking Mechanism: Material and Process-High-strength bolts combined with an anti-loosening locking structure. Function: Establishes a rigid connection between the lifting eye and the mounting base; select models feature a multi-angle rotational capability for the lifting eye, allowing for adaptation to various lifting angles.

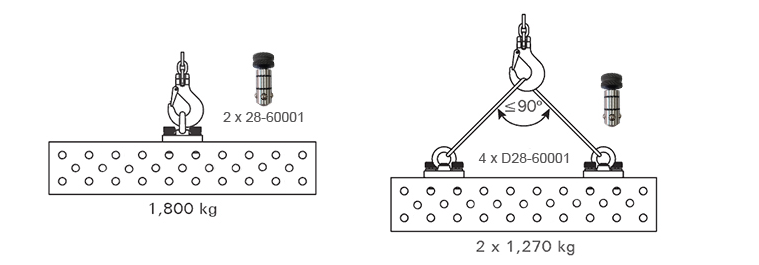

D28:
D16:
Core Features and Application Scenarios
About our products
- Secure Platform Lifting (Primary Application)

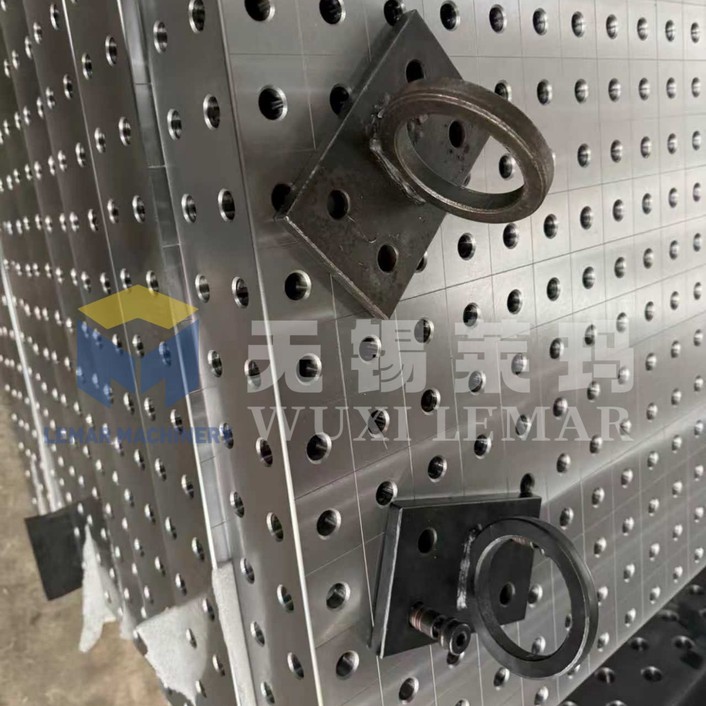

The Shipping Lifting Bracket is specifically engineered for heavy-duty 3D welding platforms. It can be rapidly mounted into the platform's standard hole patterns to serve as a secure lifting point. This facilitates the safe handling and relocation of large platforms or extension modules, preventing deformation of the platform body, damage to the hole patterns, or safety hazards that might otherwise result from direct lifting of the platform structure itself.
- Compatible with the Full Range of Welding Platforms
The base mounting holes are perfectly aligned with the two dominant welding platform hole systems-D16 and D28. This eliminates the need for additional machining, ensures quick and easy installation and removal, and makes the bracket compatible with 3D welding platforms from the vast majority of manufacturers.
- Lifting of Heavy Fixtures / Workpieces
Beyond its use with the welding table itself, the bracket can also serve as a temporary lifting point for large fixtures or heavy welding workpieces, providing a secure load-bearing point during assembly, maintenance, and transportation processes.
- Versatile Application Across Multiple Scenarios
The Shipping Lifting Bracket is suitable for a wide array of scenarios, including internal workshop relocation, inter-facility transport, and equipment installation and commissioning. It stands as an indispensable accessory component throughout the entire lifecycle of a welding platform.
Core Product Advantages
- Rapid, Non-Destructive Installation: Secured via standard mounting holes and T-bolts, installation requires no welding or drilling; this preserves the structural integrity of the platform body and allows for repeated assembly and disassembly.
- High Load-Bearing Capacity & Safety Assurance: Designed in strict accordance with industrial lifting standards, these brackets feature rated load capacities typically ranging from 1.8T to 5T. Select models are CE certified, ensuring full compliance with European Union industrial safety regulations.
- Robust & Durable-Tailored for Workshop Environments: The Shipping Lifting Bracket features a dual anti-corrosion treatment-blackening followed by galvanization-enabling it to withstand harsh workshop conditions such as welding spatter, humidity, and oil contamination, thereby ensuring a long service life.
- Stable Structure & Stress Dispersion:The square base design maximizes the load-bearing contact area, effectively preventing localized stress concentration on the platform during lifting operations and safeguarding both the mounting holes and the platform's structural integrity.
