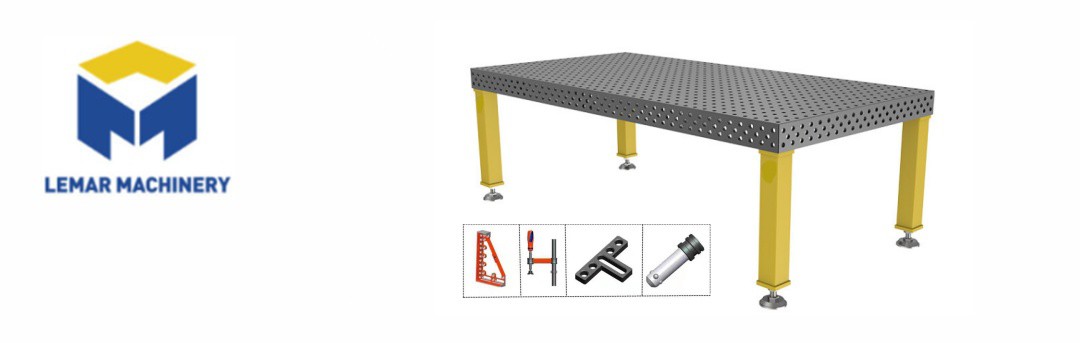

Marine Welding Table For Boat Building
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction
Marine Welding Table For Boat Building
2D welding Table
Structural form: Single-sided flat plate type, with only the upper surface available
Number of working surfaces: 1 working surface
Adjustment function: Only plane positioning, no angle adjustment
Packing specifications: Both D16 and D28 are available
Pitch: 50×50mm or 100×100mm
Applicable fixtures: Plane clamping, flat jaw clamping, simple support
Positioning method: Two-dimensional plane positioning (X, Y axes)
3D welding Table
Structural form: Cube / Box structure, with positioning holes evenly distributed on all sides
Number of working surfaces: 5 working surfaces available (top, front, rear, left, right)
Adjustment function: Supports multi-angle positioning in space, capable of vertical welding, inclined welding, and upward welding
Hole specifications: Both D16 and D28 are available (D28 is commonly used for heavy-duty applications)
Pitch: 50×50mm or 100×100mm
Applicable fixtures: Three-dimensional support, angle gauge, quick positioning pin, universal clamping, heavy-duty clamping
Positioning method: Three-dimensional space positioning (X, Y, Z axes + angle)
If it is used in the ship processing and forging industry, it is recommended to choose the D28 3D heavy-duty welding table. For detailed information, please contact me.
We also offer other types of welding machines. If you need them, please contact me.
product dimensions
We offer custom-made services; please contact me if you require other sizes.
|
NO. |
Product Type |
Size(mm) |
Number of Compatible Support Legs |
|
1 |
3D Steel /Cast iron Welding table |
1000x1000 |
4 |
|
2 |
1000x1200 |
4 |
|
|
3 |
1000x1500 |
4 |
|
|
4 |
1000x2000 |
4 |
|
|
5 |
1500x1500 |
4 |
|
|
6 |
2400x1200 |
4 |
|
|
7 |
3000x1500 |
4 |
|
|
8 |
4000x2000 |
4 |
|
|
9 |
2D Steel / Cast iron Welding Table |
1000×1000 |
4 |
|
10 |
1200×1200 |
4 |
|
|
11 |
1500×1500 |
4 |
|
|
12 |
2000×1000 |
4 |
Product video
Marine-specific design
Anti-corrosion treatment: Overall galvanization / epoxy zinc-rich paint / blackening, suitable for high humidity and high salt spray environments in shipyards.
Leveling support: Spiral lifting feet / shims, quickly adjust level when the ground is uneven.
Lifting / Moving: Lifting ears, can be equipped with heavy-duty casters (fixed / with brake for swivel).
Core Function (Shipbuilding Scenario)
- Welding of hull planar sections
Joining of bottom plates, decks, bulkhead plates, and welding of spliced plates, assembly and positioning of T-shaped sections / ribs.
- Assembly of curved / special-shaped components (core advantage)
Fixing the outer hull plates, bow / stern curved sections, ribs, and beams on the hull outside with adjustable supports, arc-shaped clamping blocks, and universal fixtures to ensure consistency in curvature, angle, and gap.
- High-precision assembly and anti-deformation
Controlling welding thermal deformation with rigid clamping to ensure the dimensional accuracy, straightness, flatness, and angle tolerance of hull components.
- Multi-station / flexible production
One platform can quickly switch to different ship types and different components, replacing traditional dedicated fixtures / membrane, reducing the preparation time for tooling (traditional days → within 30 minutes).
- Welding + Assembly + Layout + Inspection Integrated
Integrating positioning, clamping, welding, correction, layout, and inspection.
Core difference
Welding Table With 5/8 Inch Fixture Holes
There are standardized holes, and the fixture can be plugged in and used immediately, increasing efficiency by several times.
The positioning accuracy is high, and the size of the welded workpiece is more stable.
It has strong versatility and is universally applicable to global fixtures.
It has good rigidity and resistance to deformation, suitable for high-precision welding.
It is expandable and can be joined, meeting all scenarios from small to large.
Packaging & Transportation
Typical application scenarios
practical application
Ship body section manufacturing: double bottom, side, deck, bulkhead, bow and stern sections.
Frame and ribs: positioning, assembly and welding of T-shaped sections, angle steel, and spherical flat steel.
Curved outer plates: assembly and welding of hull plates and side curved plates.
Upper structure: precision welding of thin plates / light structure for the bridge, living quarters, etc.
Ship repair: component replacement, local repair, and welding of stiffeners.
Yachts / speedboats: precise assembly and welding of aluminum alloy / stainless steel / fiberglass components.
we are here for you
WUXI LEMAR MACHINERY EQUIPMENTS CO.,LTD
Hot Tags: marine welding table for boat building, China marine welding table for boat building manufacturers, suppliers, factory
