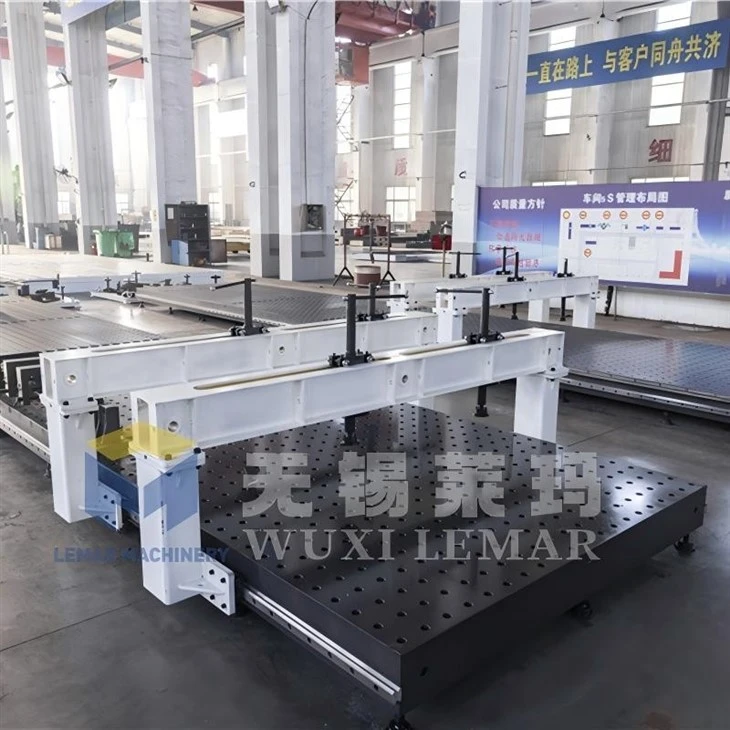

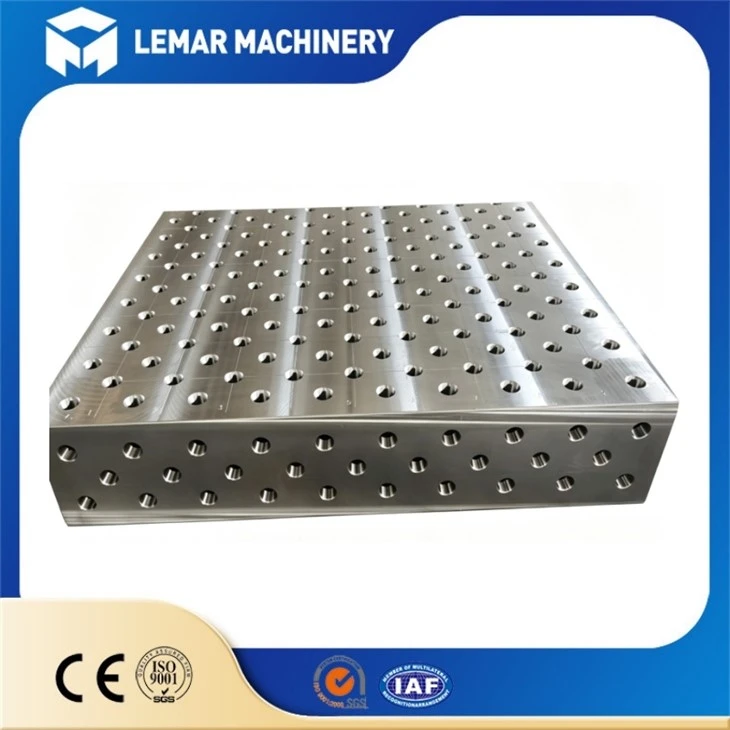

Modular 3D Flexible Welding Platform
Application:Welding&Assemble
Process:CNC Machining
Surface:Nitrided
More details:Eva(WA:+8615995269947 Evasummer@lemarmetal.com)
Type:3D 5-sides
Certification:CE Passed
Product Overview
This Modular 3D Flexible Welding Platform is purpose‑built to handle variable‑geometry fabrication work within modern manufacturing workshops. Featuring multi‑face perforated grid structure, it delivers full spatial flexibility for positioning, clamping and assembling diverse workpieces. Every platform unit undergoes stress‑relief processing and high‑precision CNC machining to secure consistent hole tolerance and reliable surface flatness. Thanks to its flexible modular design, operators can rearrange fixture layouts rapidly without fabricating large amounts of dedicated tooling. It greatly cuts fixture preparation cycles and minimizes assembly errors for mixed‑batch, variable‑part production, bringing higher agility to custom metal‑working workshops.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47(Eva Summer)
Evasummer@lemarmetal.com
Products Parameters
Products Display
Products Features
Full‑Spatial Flexible Clamping Capacity
Perforations extend across top, side and end planes of the platform. Clamping can be completed from horizontal, vertical and oblique directions, adapting freely to workpieces of irregular shapes and complex spatial angles.
Stress‑Eliminated Body for Long‑Term Geometric Stability
Post‑weld stress‑relief annealing removes internal residual stress. The platform avoids gradual distortion under cyclic heavy loads and maintains stable precision through long‑term variable‑part production.
Rapid Fixture Reconfiguration for Variable Batches
All modular tooling can be relocated, combined and locked in place quickly. When switching to new‑variant workpieces, there is no need for time‑consuming custom jig manufacturing, lifting workshop production agility.
Wear‑Resistant Nitrided Surface for Reduced Maintenance
Compact nitrided protective layer resists welding spatter adhesion and surface abrasion. It lowers frequency of manual grinding and surface restoration, decreasing downtime caused by platform maintenance.
Expandable Splicing Structure for Large‑Scale Workpieces
Multiple platform units can be accurately spliced with matched connection assemblies. The effective working area can be expanded arbitrarily to accommodate oversized split‑assembly workpieces.
High‑Degree Tooling Compatibility
Standard D28 hole specification supports most mainstream modular welding accessories on the market. Existing workshop tool assets can be reused, helping enterprises control equipment update investment.
Customer Reviews
FAQ
Q1:What core strengths does this 3D flexible welding platform have compared with ordinary welding tables?
It realizes multi‑direction clamping on multiple planes, adapts to frequently changed workpiece styles, and reduces dependence on custom‑made jigs, which is more suitable for flexible mixed‑batch production.
Q2:What pre‑conditions should be met when splicing multiple platform units together?
Place all units on sufficiently flat and solid ground, and use supporting alignment pins and connection assemblies. Uneven foundation will directly damage the overall flatness of spliced working surface.
Q3:Can non‑standard custom dimensions be provided for this flexible welding platform?
Custom dimensions are supported. Please provide maximum workpiece outline size, workpiece weight and main clamping modes for our technical team to complete evaluation and quotation.
Q4:How to properly maintain the nitrided working surface in daily workshop operation?
Avoid violent hammering directly on platform surface. Clear welding spatter after each working shift, and regularly clean debris accumulated inside hole slots.
Q5:Are third‑party D28 accessories applicable to this 3D flexible welding platform?
Most standard D28 series accessories can be matched for use. Individual special‑shaped non‑standard tooling may need minor adaptive adjustment during installation.
