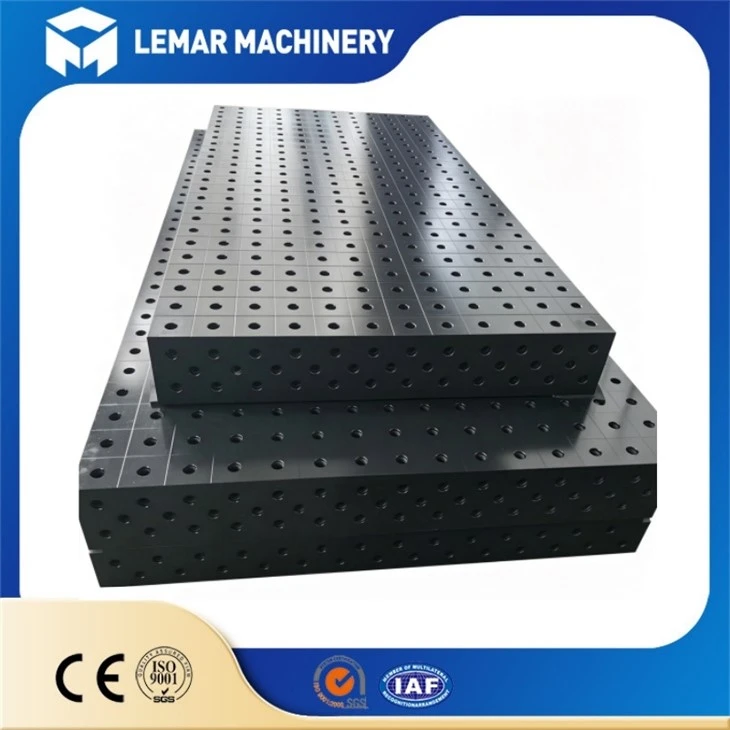

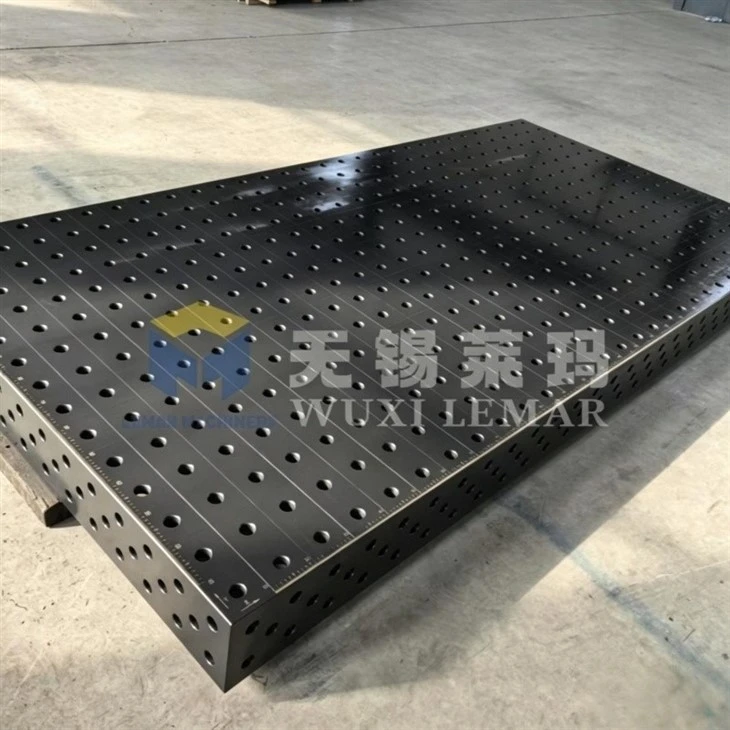

Precision Welding Bench

1. Micron-Level Flatness Accuracy Each Precision Welding Bench undergoes multi-stage grinding and final lapping to achieve a flatness tolerance of ±0.02 mm per meter, meeting Grade 0 precision standards. This ultra-flat reference surface ensures every workpiece you weld or assemble maintains consistent dimensional accuracy, reducing scrap rates and rework.

2. Cast Iron Construction for Superior Stability Manufactured from high-quality HT300 gray cast iron with natural stress relief through aging, the bench offers excellent vibration damping and minimal thermal expansion. These properties significantly reduce welding distortion and provide a stable platform that maintains precision even under temperature fluctuations in the workshop.

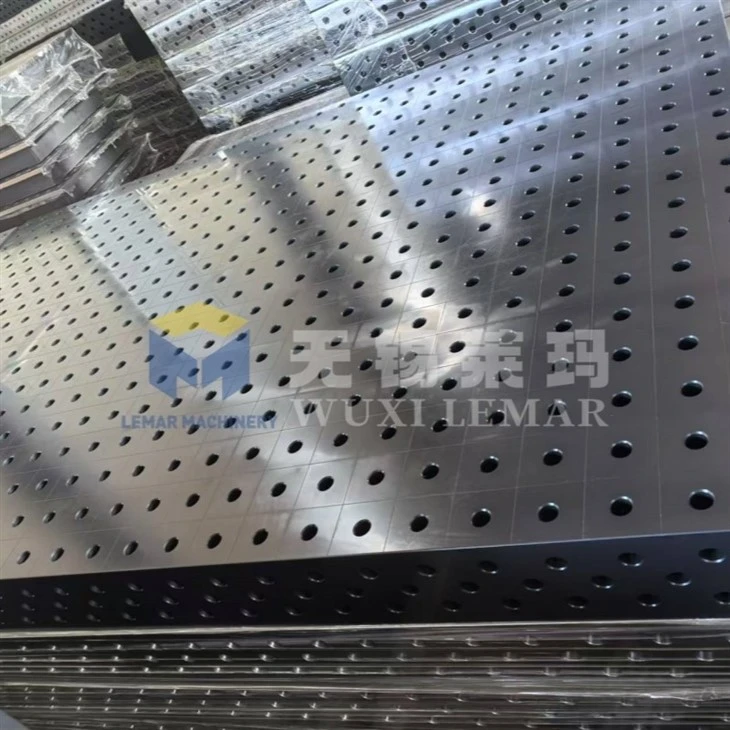

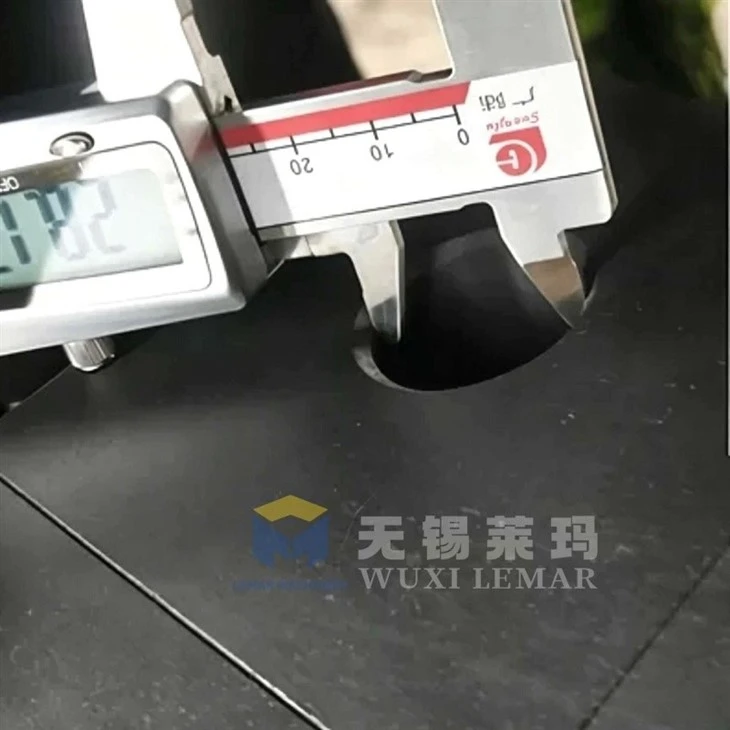

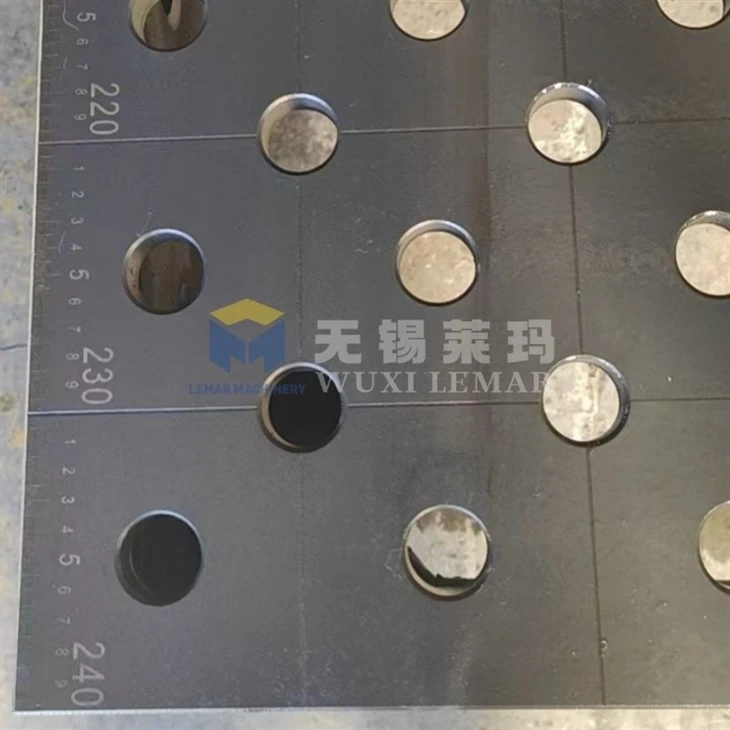

3. Precision Hole System with Repeatable Positioning The 50mm grid pitch features precision-bored holes with position accuracy within ±0.03 mm. Combined with hardened locating pins and precision clamps, this system delivers repeatable setups that save time and ensure consistent results across production batches.

4. Dual-Function as Welding and Inspection Surface The bench serves double duty as both a welding work platform and a coordinate measuring reference. You can weld components on the same surface used for dimensional inspection, eliminating transfer errors and streamlining your quality control workflow.

5. Wear-Resistant Nitrided Surface Layer The working surface receives a deep nitriding treatment, creating a hard, wear-resistant layer with HV 650 to 750 hardness. This treatment protects the precision-ground surface from welding spatter, abrasive wear, and corrosion, preserving accuracy over years of heavy use.

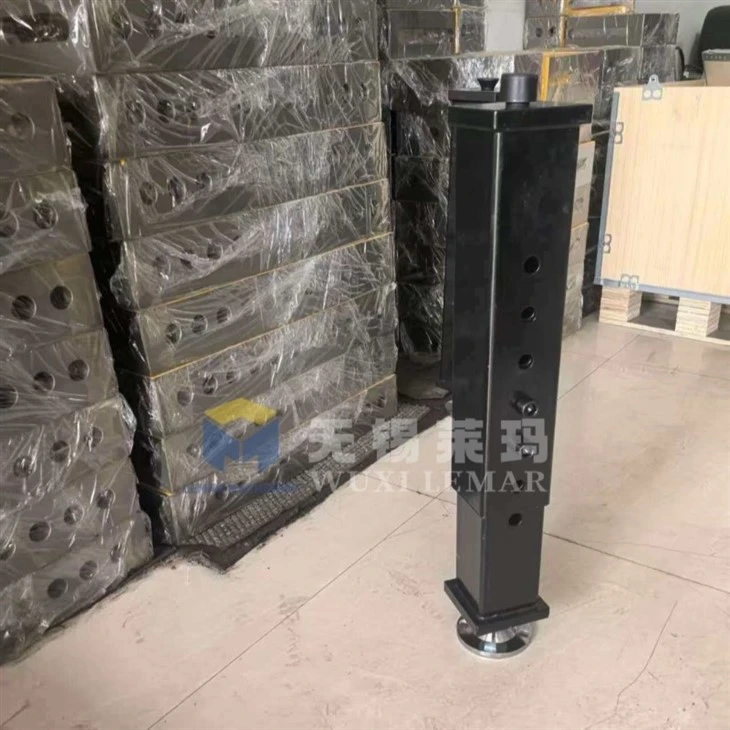

6. Heavy-Duty Frame with Leveling System The bench is mounted on a robust steel support frame equipped with precision leveling feet and optional vibration isolation pads. This ensures the table remains perfectly level and isolated from floor vibrations, maintaining its rated accuracy in real-world production environments.
