Pro Series Welding Tables
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description

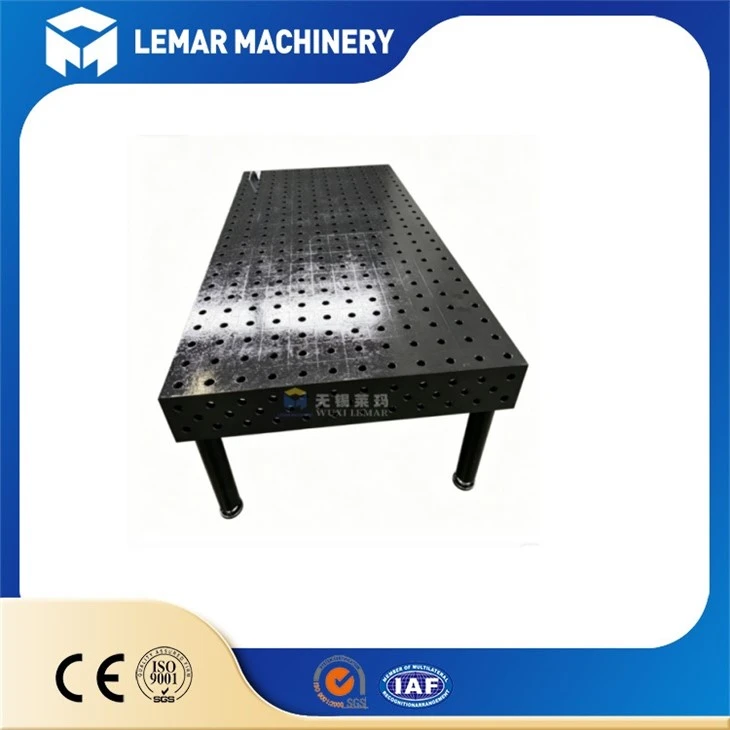

The Pro Series Welding Tables are high-end modular welding fixturing platforms designed for precision welding, positioning, mass production, and robotic welding applications. Widely utilized in sectors such as steel structures, mechanical manufacturing, sheet metal fabrication, vehicle chassis assembly, heavy machinery, and stainless steel processing, these tables are distinguished by their exceptional precision, high rigidity, resistance to deformation, and modular clamping capabilities.
Main hole pattern standard
D28 System (φ28mm hole, mainstream in industry)
Hole spacing: 100×100 mm grid
Positioning accuracy: ±0.05 mm
Load-bearing capacity: 5~10 tons per square meter, locking pin locking force 5 tons, shear resistance 25 tons
Applicable to: Heavy steel structures, construction machinery, vehicle frames, robotic welding, and mass industrial production (highest market share).
D16 system (with a diameter of 16mm hole)
Hole spacing: 50 × 50 mm grid
Positioning accuracy: ± 0.03~± 0.05 mm
Material/Load bearing: Lightweight structure, suitable for small parts, precision sheet metal, teaching aids, and lightweight welding
Features: Small size, low cost, compact accessories, not suitable for heavy-duty steel structures.
Outriggers and Load Bearing
product key technologies
Outrigger Type (Optional across the entire series)
- Fixed Legs: Heavy-duty floor-standing design offering maximum load-bearing capacity, ideal for fixed workstations.
- Adjustable-Height Legs: Height-adjustable to accommodate welders of varying heights and fixtures of different elevations.
- Mobile Caster Model: Equipped with universal casters featuring brakes, allowing for easy relocation of the entire unit and flexible workshop layout.
Load-bearing capacity
- Standard D16 Welding Tables: Total load capacity of 800–1000 kg per unit.
- Heavy-Duty D28 Welding Tables: Load capacity of up to 700 kg per leg; total load capacity of 3–5.6 tons (multi-leg configuration), suitable for heavy-duty structural components.
Mainstream Sizes and Specifications (Globally Standard)
Pro Series Welding Tables are available in a variety of sizes, commonly including:
- Small: 1000×800mm, 1000×1000mm (Individual workstations, small-batch production)
- Medium: 1200×2400mm, 2000×1000mm (General-purpose, mainstream applications)
- Large: 4000×2000mm, 3000×1500mm (Heavy-duty tasks, long workpieces, robotic welding)
Summary of Core Advantages
Ultra-High Precision
Flatness and hole positioning accuracy far exceed those of standard welding tables, significantly reducing the need for rework.
01
High Rigidity & Warp Resistance
Features a thick tabletop reinforced by a dense grid of ribs; withstands high temperatures and heavy loads without warping.
02
Fully Modular Design
Universal accessories and rapid clamping capabilities allow a single Pro Series Welding Table to accommodate a wide variety of products.
03
Durable & Easy to Maintain
Features a nitrided or stainless steel surface finish that resists welding spatter and abrasion, ensuring a long service life.
04
Versatile Application
Suitable for a broad range of tasks, including manual welding, robotic welding, and both single-piece and batch production.
05
Quality Certificate
- Universal Industry Standards: Compliant with industry standards for 3D flexible welding fixtures; the hole pattern system is compatible with DIN/ISO international standards, ensuring global interchangeability of accessories.
- Safety Certification: Products from mainstream brands hold CE certification (EU safety standards), enabling export to international markets such as Europe and the Americas.
- Material Standards: Carbon steel models adhere to the S355/Q355 national standard, while stainless steel models comply with the 1.4301 (304) material standard; a material quality certificate is provided with each product.
Common problems and solutions
Tabletop Levelness Deviation: Tabletop Levelness Deviation: Loose legs on Pro Series Welding Tables / Floor settlement → Re-level the table and tighten all bolts; repair or level the floor surface.
Loose or Slipping Clamping Fixtures: Worn positioning holes / Aging fixtures → Replace positioning pins and clamps; avoid prolonged use under excessive loads.
Localized Tabletop Rust (Carbon Steel Models): Damaged protective coating / Humid environment → Sand down the affected area and reapply the protective coating; improve workshop ventilation.
