Pro Welding Table

Name: China Pro Welding Table Manufacturers Suppliers Factory - Pro Welding Table Made in China
Brand: Lemar
SKU: 308304691

Certification:CE Passed
Material:Cast iron/Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided or Raw
Type:3D
Size:1200*2400mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)

Send Inquiry

Pro Welding Table

Product Overview

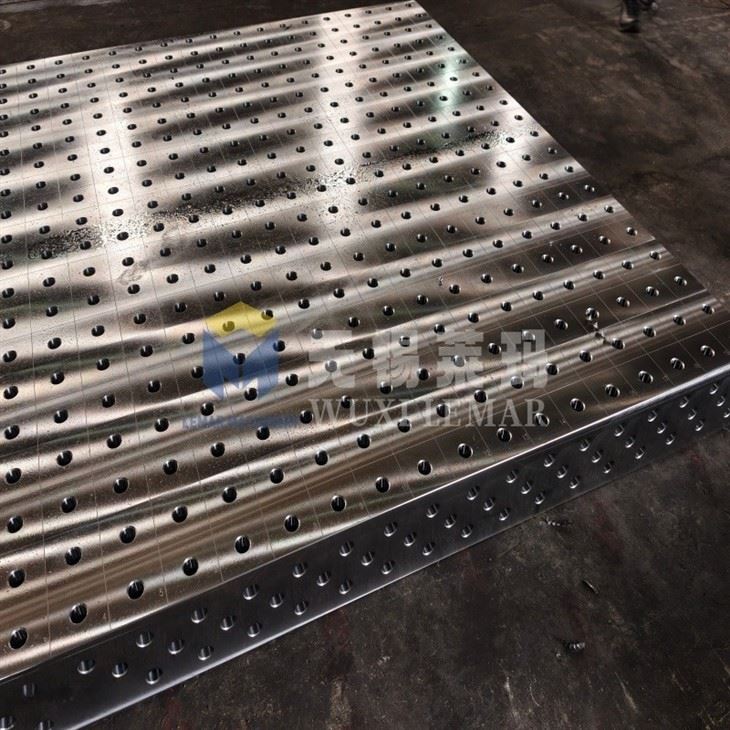

Built with Q355 structural steel and finished with a premium nitrided surface treatment, our Pro Welding Table delivers exceptional flatness tolerance (±0.1mm/m) and outstanding resistance to welding spatter, corrosion, and wear. The precision-machined grid of D28 / D16 mm holes on both the tabletop and side faces provides infinite fixturing possibilities, accommodating everything from simple brackets to complex structural assemblies.
Whether you're working with MIG, TIG, spot, or robotic welding, this table is the foundation your projects deserve.

Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA

Phone Number:+86 159 952 699 47(Eva Summer)

Evasummer@lemarmetal.com

Product Parameters

table details

Tell our sales engineer:eva summer your prefer series and platform size, we will immediately provide you with an accurate quotation!

Contact Now

Product Advantages

Key Features

🏆 Nitrided Surface – Built to Last

Advanced plasma nitriding treatment creates a hardened surface layer (HV 600+)
Superior resistance to welding spatter, scratches, and corrosion
Easy cleanup – spatter chips off effortlessly, no grinding required
Extends table lifespan by 3x compared to untreated steel surfaces

🏆Precision Machining – Accuracy You Can Trust

Flatness tolerance: ±0.1mm per meter
Grid hole spacing: 100mm × 100mm (metric) with ±0.05mm positional accuracy
CNC-machined on all five working surfaces (top + 4 sides)
Certified calibration report included with every table

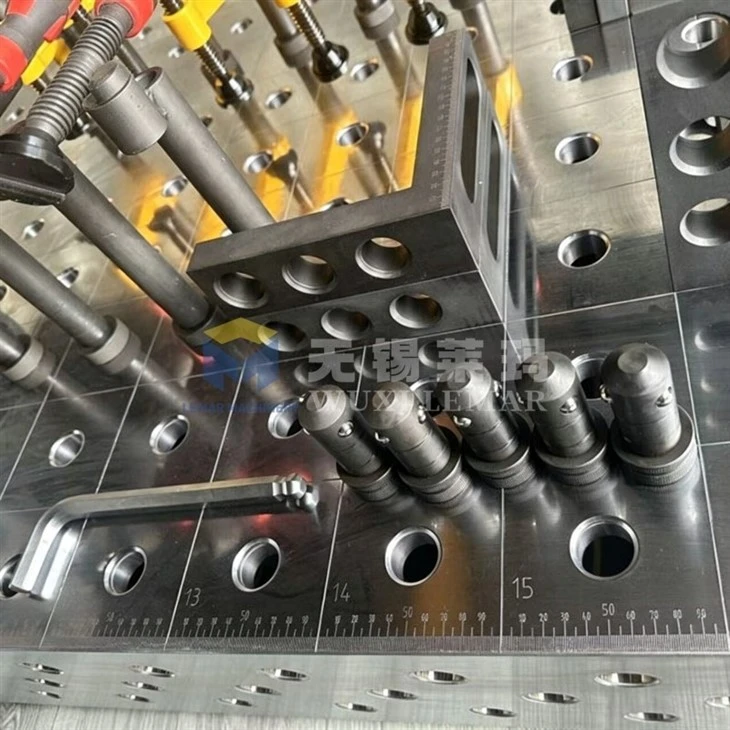

🏆 Modular 3D Fixturing System

Compatible with D28 / D16 mm clamping accessories
Hundreds of fixture components available: clamps, stops, angles, V-blocks, risers
Quick-change design – setups in minutes, not hours
Vertical and horizontal fixturing for 3D assembly work

Not sure if this table works for your workpiece?
Send me a photo of your workpiece – I'll help you design a clamping solution for free.

High Purity cast iron Material

Tougher and more resistant to use

In-stock goods

Source manufacturer with guaranteed production capacity

High precision fixtures

Made by CNC machine,16mm/28mm two systems are compatible.

Adjustable legs

4 types legs:standard legs/adjustable legs/caster wheel legs/square legs.

Parameter	Value
Model	Pro-WT-1500×1000
Table Size (L×W)	1500mm × 1000mm
Working Height	850mm (adjustable ±50mm)
Tabletop Thickness	30mm
Hole Diameter	D28mm / D16mm
Hole Grid	100mm × 100mm
Flatness Tolerance	±0.1mm/m
Material	Q355 / HT300 Cast Iron
Surface Treatment	Nitriding
Surface Hardness	HV 600+
Load Capacity	5,000 kg
Net Weight	~650 kg

Custom sizes available: 1000×1000mm, 2000×1000mm, 2000×1500mm, 3000×1500mm, and bespoke dimensions.

FAQ

Q1.What's the difference between D28 and D16 hole systems?

A: D28 (28mm holes) is the industrial standard for heavy-duty fixturing, offering maximum clamping force. D16 (16mm holes) provides finer positioning resolution for smaller, more delicate work. We offer both – choose based on your typical project size.

Q2.Do you offer OEM / private labeling for resellers or distributors?

A:Absolutely. We have an established OEM/ODM program for distributors, resellers, and equipment integrators worldwide. We can customize branding (logo engraving, packaging, manuals), modify specifications, develop exclusive accessory lines, and provide white-label solutions. Minimum order quantities apply for OEM programs. Contact our B2B team to discuss partnership opportunities.

Q3.How does the nitrided surface hold up against welding spatter, and how do I clean it?

A:The nitrided surface is specifically engineered to resist spatter adhesion – weld spatter beads up and chips off easily with a simple wire brush or putty knife, no grinding needed. For daily maintenance, simply wipe the surface with a clean cloth. We recommend applying a light coat of rust-preventive oil if the table will sit unused for extended periods. The nitrided layer is 0.3-0.5mm deep, so even with years of use, the surface protection remains effective.

Q4.How flat is the surface?

A:Flatness ≤ 0.1mm per square meter – precision ground.

Q5.Are your fixturing accessories compatible with Siegmund / Demmeler / Bluco welding tables?

A:Yes, our D28 and D16 clamping systems are fully interchangeable with major European and American welding table brands using the same hole diameter standards. Our accessories are manufactured to the same ISO tolerances, so if you already own clamps or fixtures from other premium brands, they'll work seamlessly on our table – and vice versa.

Q6.Can I add casters / wheels to make the table movable?

A:Yes, we offer an optional heavy-duty caster kit (4 swivel casters with locking mechanism, each rated at 2000kg load capacity). The casters mount directly to the table frame and can be engaged or retracted via a foot pedal, allowing you to move the table around your shop and lock it firmly in place when working. This is a popular add-on for shops with limited space or multi-use work areas.

📞Ready to Upgrade Your Workshop?

Invest in a welding table that grows with your business. Contact us today for a personalized quote, or request our full product catalog to explore all available options and accessories.

📧 Email: evasummer@lemarmetal.com

📞 Phone: +86 159 9526 9947

🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table
