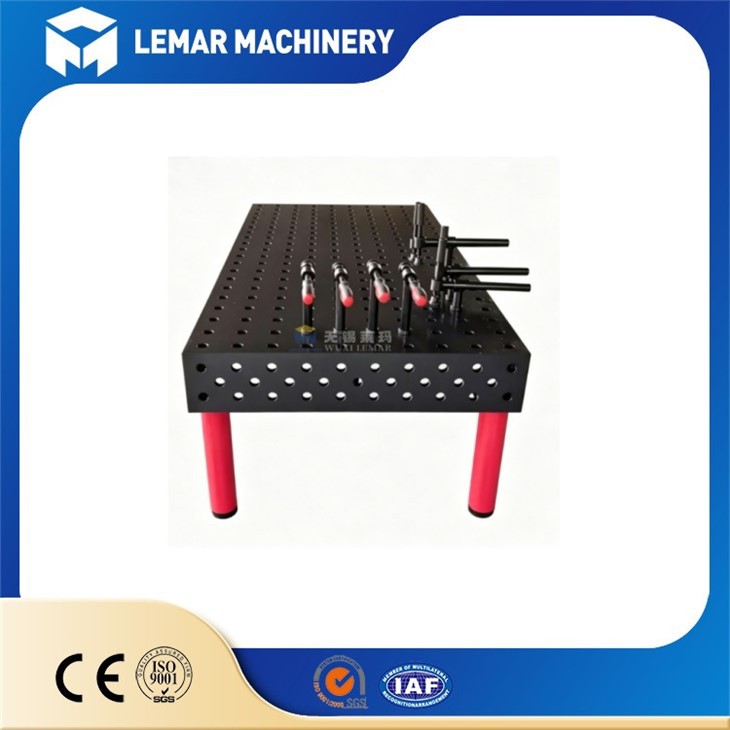

Welding Tables 2400x1200 mm
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description

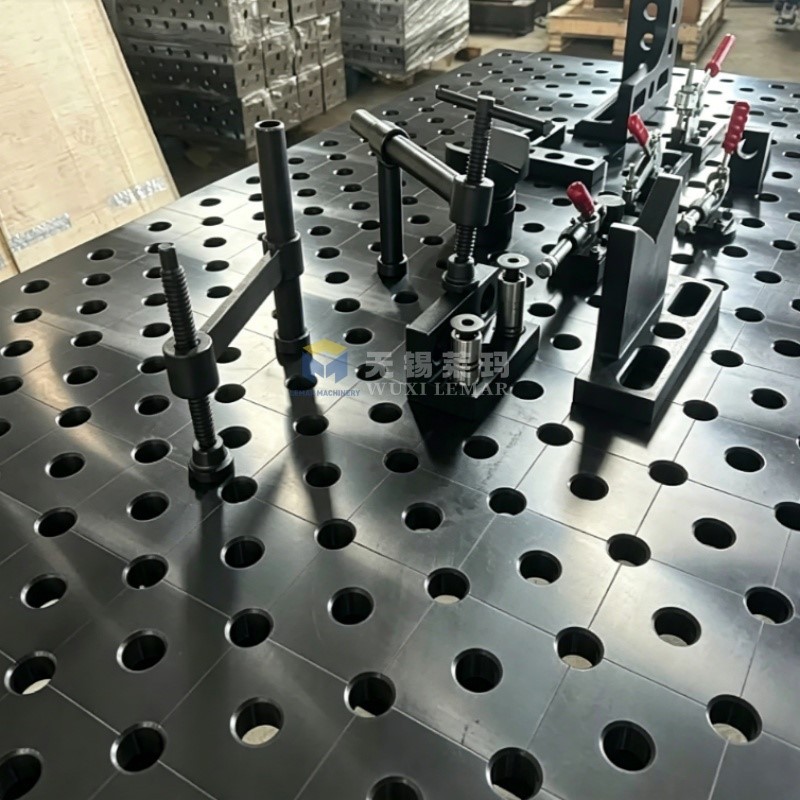

High-quality welding tables

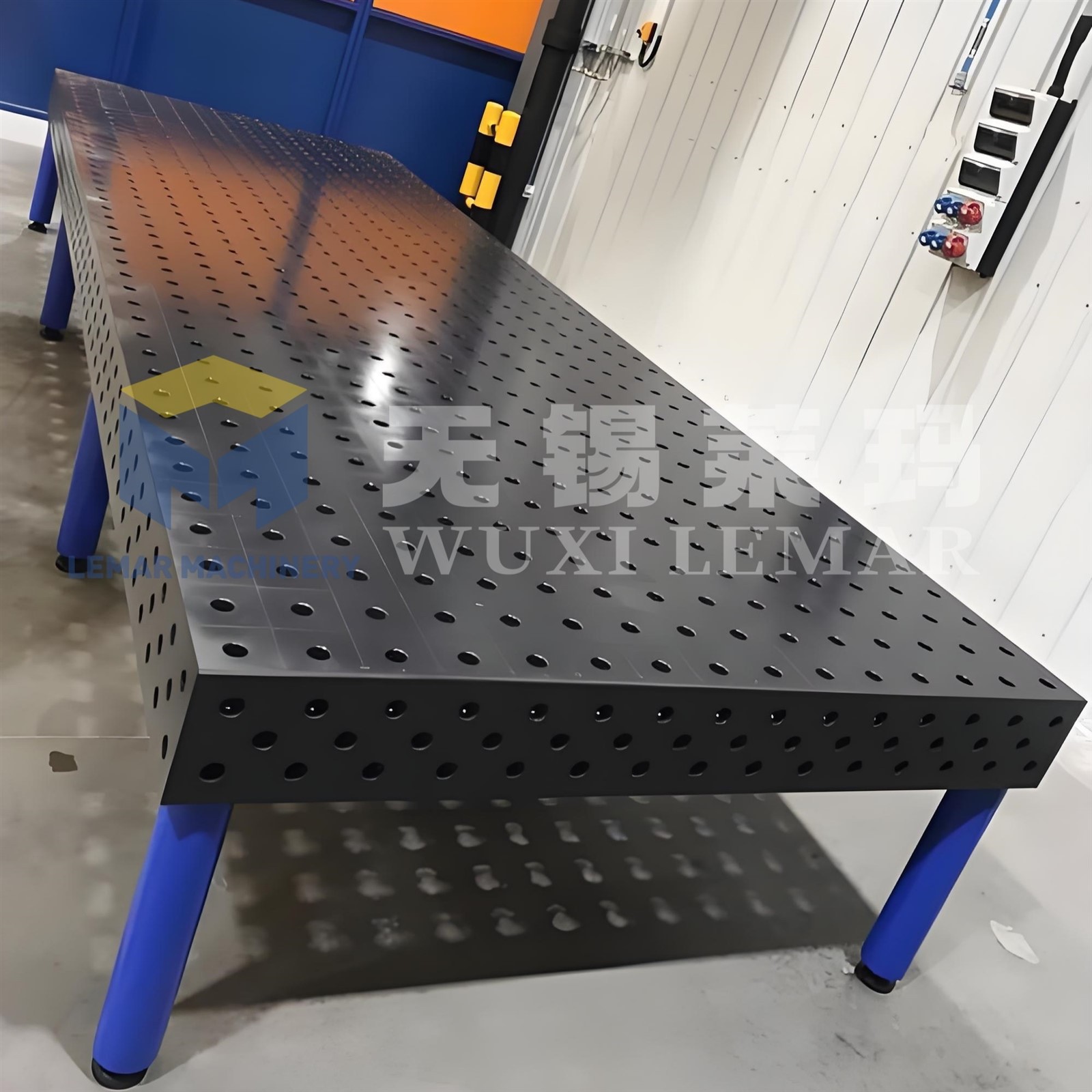

External dimensions: Length 2400mm × Width 1200mm
Standard height: 800mm (standard), customizable to 750/850/900mm
Effective working surface: Full coverage, unobstructed, the entire surface can be used for positioning and clamping
Overall footprint: 2.4m × 1.2m, space-saving design, ideal for medium-sized workstations.
Product parameters

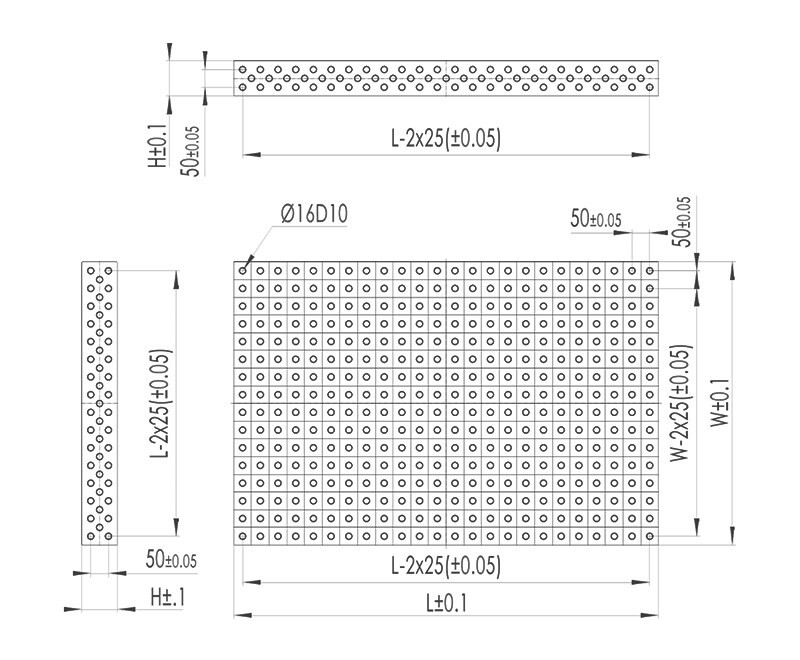

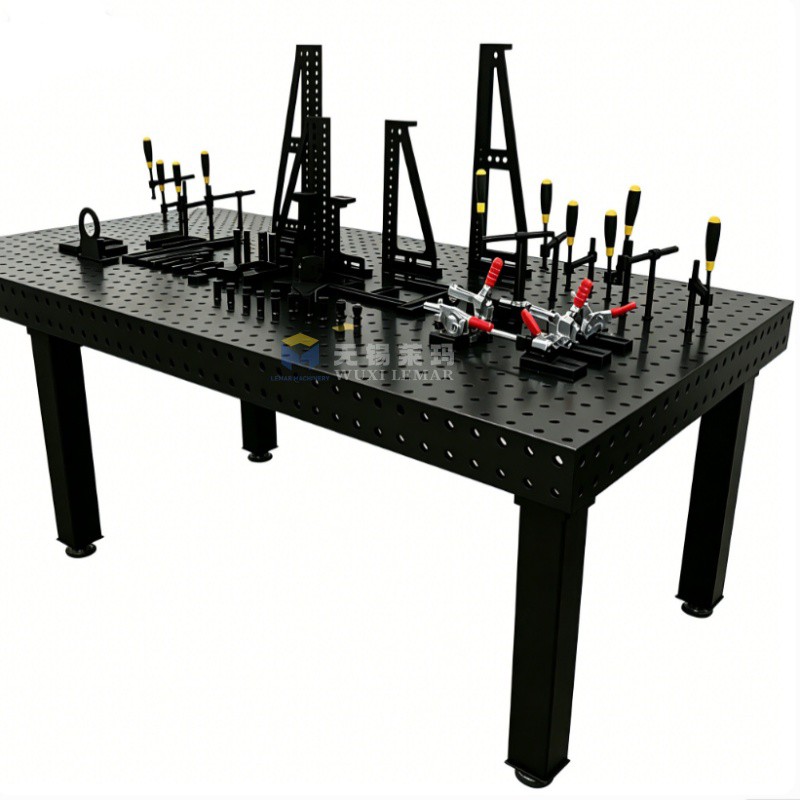

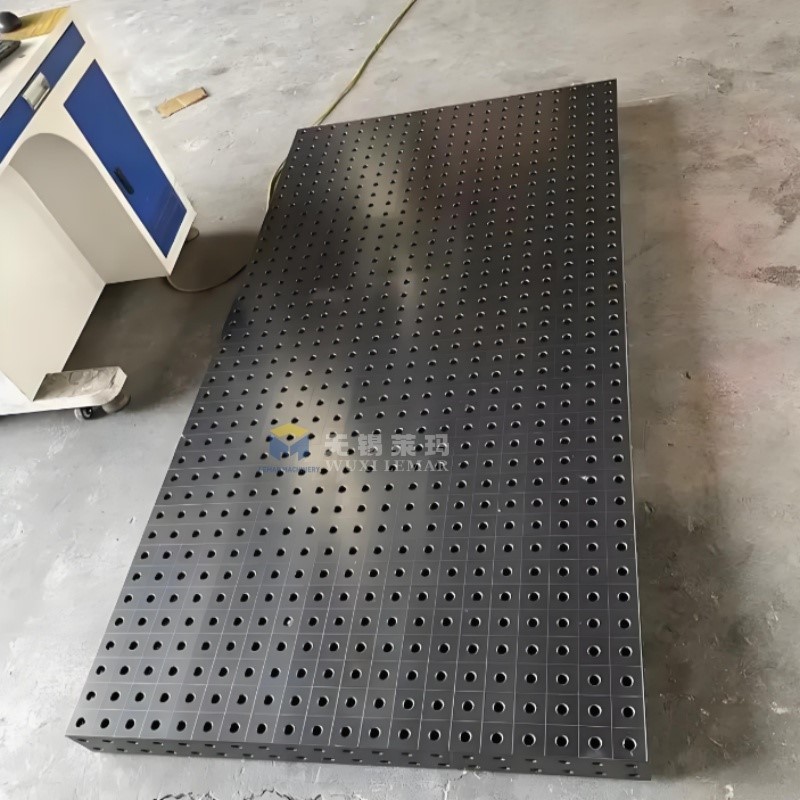

D16 Welding Tables
Nominal bore diameter: 16 mm
Actual machined bore diameter: φ16 H7
Chamfer specifications: Top and bottom 1.2×45°
Hole depth: Through the table surface
Positioning pin diameter: 16 mm
Locking bolt specifications: M12
Single hole locking force: ≥5500N
Applications: Sheet metal, pipes, small frames, light machine frames, door and window railings
Features: Lightweight accessories, quick clamping, high cost performance

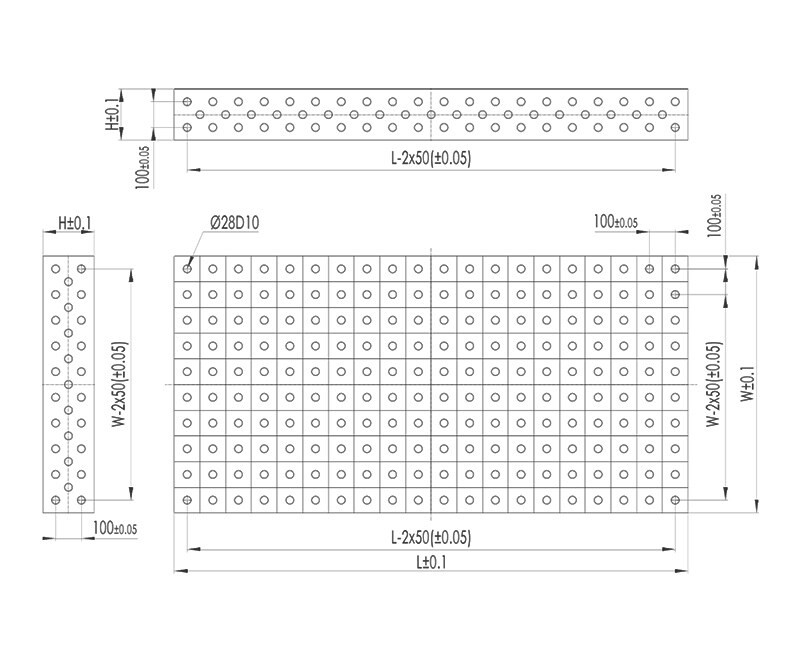

D28 Welding Tables
Nominal bore diameter: 28 mm
Actual machined bore diameter: φ28 H7
Chamfer specifications: Top and bottom 1.5×45°
Hole depth: Through the table surface
Locking pin diameter: 28 mm
Locking bolt specifications: M24
Single hole locking force: ≥12000N
Applications: Thick plate welding, engineering machinery, vehicle frames, heavy-duty workpieces, robotic welding
Features: High load-bearing capacity, stable clamping, preferred for heavy-duty tooling,
Summary of advantages
Our welding Tables are your best choice.
-
High precision: Ensures consistent weld dimensions and reduces rework.
-
High efficiency: Quick clamping reduces positioning time by 70%+.
-
High rigidity: Vibration-resistant and deformation-resistant, suitable for heavy-duty and long-cycle welding.
-
Versatility: The welding table is compatible with global fixtures and adaptable to workpieces from various industries.
-
Long lifespan: Nitrided surface, wear-resistant and corrosion-resistant, with a service life of 10+ years.
Certificate of Product Quality
Applicable industries
Steel structure frames, shelving, and storage equipment
Construction machinery parts and agricultural vehicle frames
New energy equipment frames and photovoltaic brackets
Box and cabinet frames and automotive parts welding
Robotic automated welding stations
Door, window, and railing welding and heavy-duty pipe welding
FAQ
Everything You Need to Know
Can you customize parameters?
Support custom table thickness, height, lifting type, rotary type and logo printing.
What is the delivery time?
Regular size in stock, delivery within 3-7 working days; customized size needs 10-15 days.
Can it match standard fixtures?
Yes, fully compatible with global standard D16/D28 welding jigs and accessories, easy to buy spare parts.
Can you arrange sea freight for us?
We support T/T, L/C, Western Union and other common trade terms.
