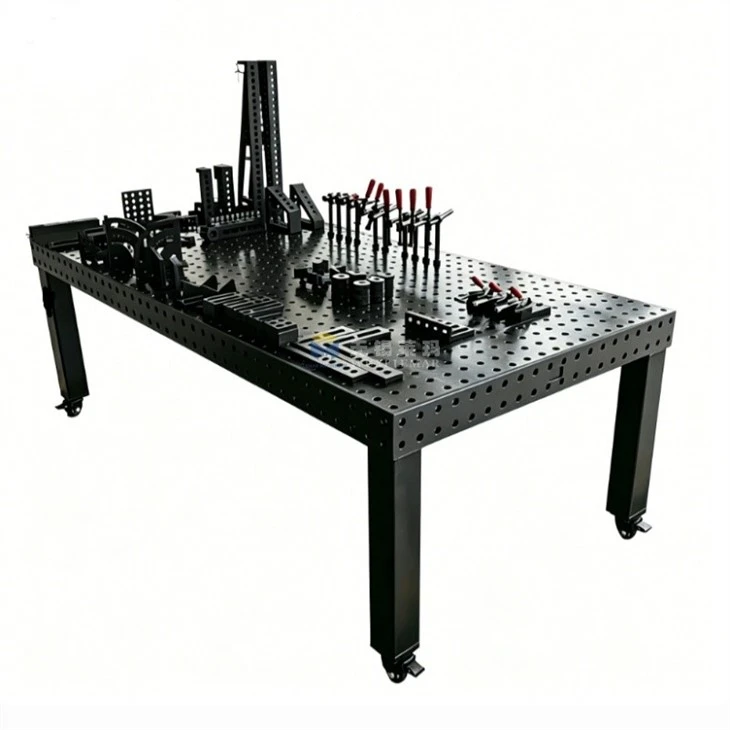

Mobile 3D Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Product Overview
Professional Team

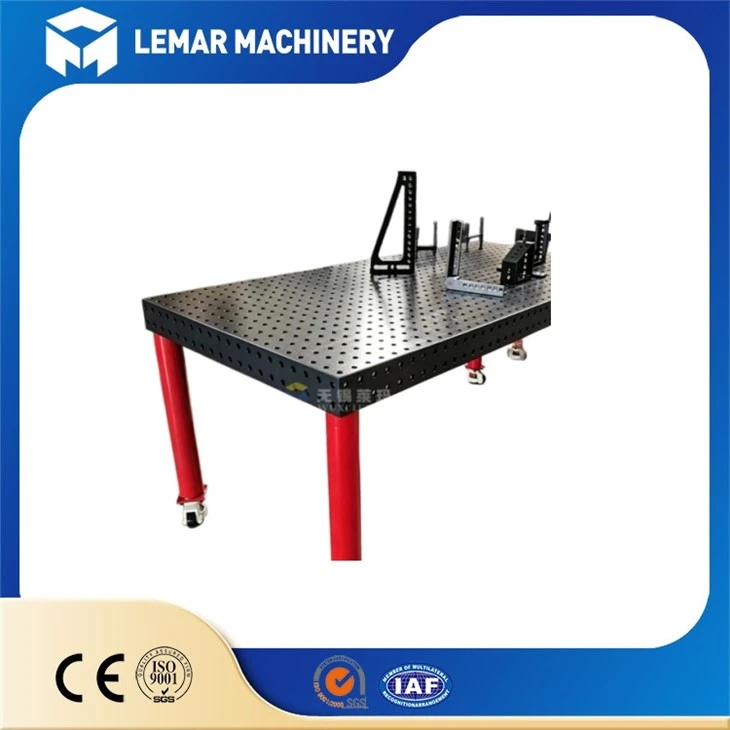

Our mobile 3D welding table is an upgraded version of fixed 3D flexible welding table, integrated with heavy-duty movable support base with dual-brake industrial casters and height-adjustable leveling feet.
Different from stationary welding benches, this movable design solves space waste, cross-workpiece transportation and on-site construction welding troubles. The whole table can be pushed to lifting area, ventilation zone, robotic welding cell or outdoor maintenance site directly, no frequent overhead crane handling required.
The tabletop adopts full five-sided standardized hole grid, supporting X/Y/Z three-dimensional multi-angle clamping for frames, pipes, sheet metal and structural parts. All clamping accessories are universally interchangeable, drastically cutting custom jig production cost and changeover time.
Product Structure Details
Hole Standard
D16: φ16mm hole, 50×50mm pitch, thin sheet, aluminum frame, small cabinet welding
D28: φ28mm hole, 100×100mm pitch, truck frame, machinery structure, thick steel welding
Surface Treatment High-temperature gas nitriding, form hard anti-spatter layer, easy slag cleaning without scratching table surface; bottom shot blasting + epoxy anti-rust paint for sea transportation protection
Precision Standard Flatness: ≤0.1mm per 1000mm; hole center distance tolerance ±0.05mm; side perpendicularity ≤0.05mm/200mm
Core Advantages
Our Product Advantages
Providing customers with the highest quality mobile 3D welding tables.

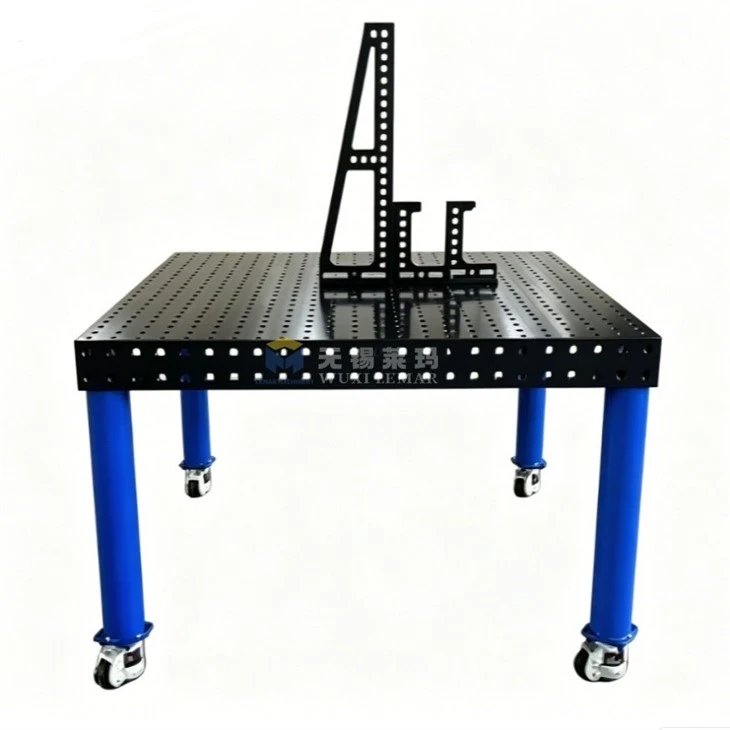

Free Workshop Mobility & Stable Lock Position
- Heavy load PU iron-core casters with double brake (wheel lock + positioning lock), no sliding during welding
- Matching adjustable leveling screw on each leg: lift casters off ground after positioning, recover rigid stability same as fixed table
- Optional hydraulic lifting mobile base, height adjustable 700–1100mm for different workpieces & welders
- Light enough for forklift whole-table transfer to outdoor engineering sites
Universal 3D Flexible Fixture System
- Full 5-side drilled holes (top + four vertical sides), no dead angle for vertical, inclined & cubic workpiece clamping
- Two international standard hole series: D16 (50×50mm grid) for light precision welding, D28 (100×100mm grid) for heavy structural welding
- All modular jigs cross-compatible, change workpiece fixture layout within 10–20 mins
- Splice multiple mobile 3D welding tables via connecting plates for extra-large frames, separate to move individually after use

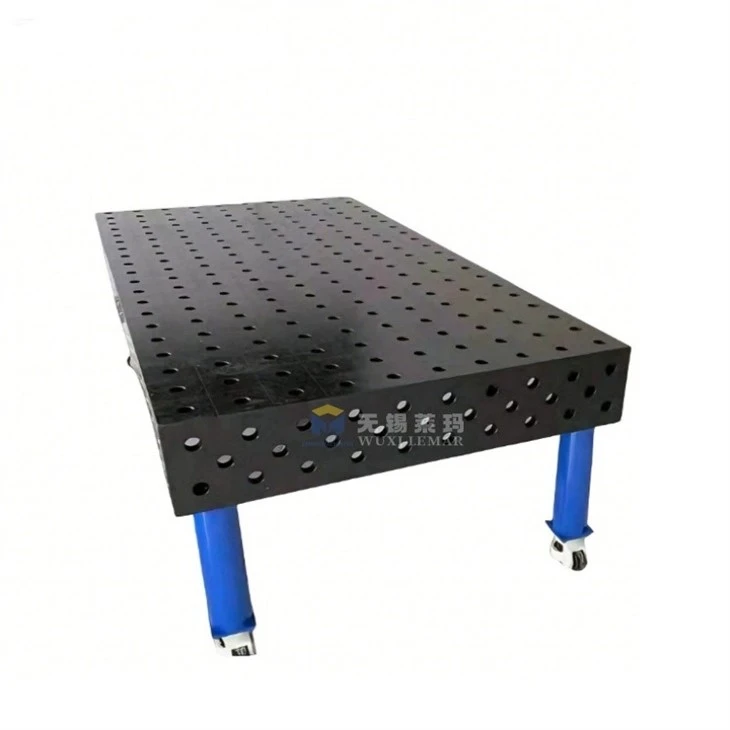

Ultra Durable Precision Tabletop
- Double stress relief treatment eliminates deformation risk after long-term heavy use
- Deep gas nitriding surface treatment, hardness HV800–1200, anti-welding spatter adhesion, rust & wear resistant
- CNC one-time full milling for all sides, flatness & vertical tolerance strictly controlled
High Production Cost Saving
- 70% less custom jig manufacturing expense vs traditional single-product fixture
- 25%–40% higher welding efficiency, reduce auxiliary positioning labor
- Lower reject rate from precise hole positioning, less material waste from dimension error
- Save workshop area: one table shared by multiple processes, store at corner when idle
Certification & Factory Inspection
Global Export Certifications
CE Machinery Safety Certificate, ISO9001 Quality System, ISO3834 Welding Standard, IPPC export packing mark
Factory Full Inspection Before Shipment
Flatness & vertical precision test report
Surface nitriding hardness test certificate
Raw material spectrum test sheet (cast iron / steel)
Caster load & brake stability test record All inspection documents attached with goods for customs clearance & customer acceptance
Package & After-Sales Service
Professional Logistics Solutions
Safeguarding the transport of flexible welding tables for clients.
Standard Export Packaging Solution
Adopts exclusive industrial-grade export packaging tailored for long-distance ocean transportation, container shipping, and multi-times handling, effectively solving product deformation, rust, collision damage, and paint peeling during international logistics. All packaging processes comply with global export shipping standards.
Multi-Layer Anti-Collision & Anti-Rust Protection
Firstly, cover the entire table surface with professional anti-rust oil and waterproof & dust-proof plastic film to isolate moisture and sea salt fog. Secondly, wrap all edges and corners with thickened anti-collision foam and rubber protective strips to avoid impact scratches and nitride layer damage. Finally, fix the table body with reinforced steel brackets and solid wooden box packaging, no shaking or displacement in transit
Professional Reinforced Fixation
Heavy-duty large-size welding tables adopt integral steel frame welding fixation + bottom skid design, convenient for forklift and crane loading and unloading. Custom rubber buffer gaskets are added at the stress points to eliminate structural vibration and pressure deformation during transportation.
Custom Packaging Support
Support customized packaging according to customer requirements (fumigated wooden box, iron frame packaging, vacuum packaging), and provide exclusive outer box marking, logo printing and shipping marking services.
contact us
Ready to order your ideal Mobile 3D Welding Table?
Submit your inquiry to get instant factory quotation, customized sizes and full fixture packages.
Our technical team offers one-stop solution support for robotic welding and mass production lines.
We support OEM & ODM with complete export clearance documents.
